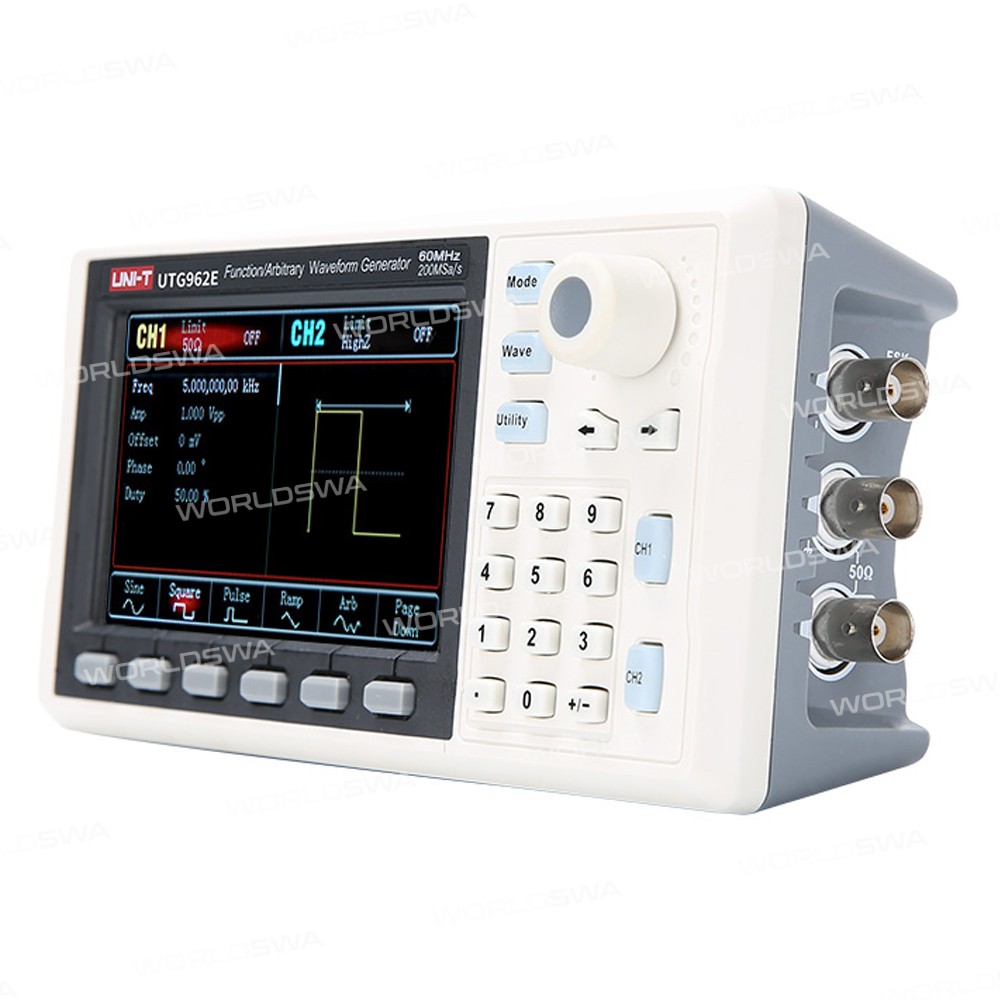

UNI-T UTG932E / UTG962E Dual Channel 30Mhz / 60Mhz Signal Generator, 200M Sampling Rate

UNI-T UTG932E/UTG962E Dual Channel Signal Generator 30Mhz / 60Mhz 200M Sampling Rate

Overview:

The UTG900E Series is a handheld mini economical, high-performance, arbitrary function waveform generator, providing a unique and cost-effective solution for electronics enthusiasts with a minimum resolution of up to 1uHz, mini size, and lightweight to our most affordable line of generators. It flexibly meets your testing needs in various scenarios, and fully improves your work and learning efficiency.

Features:

• The UTG900E Series is a handheld mini economical, high-performance, arbitrary function waveform generator
• **High-Performance Output**: 30MHz/60MHz frequency output, full band 1 uHz resolution, low jitter square wave output
• **Portable and Convenient**: Portable shape, supporting AC and DC power supply
• **High-Speed Sampling**: 200MS/s sampling rate, 14bits vertical resolution
• **Advanced Functionality**: 7-bit high-precision frequency meter compatible with TTL level signal, 24 groups of non-volatile digital arbitrary waveform storage, support frequency scanning output: AM, FM, PM, FSK
• **High-Resolution Display**: 4.3-inch high-resolution TFT color LGD display
• **Standard Configuration**: Standard configuration interface: USB Device

Specification:

• Model: UTG932E/UTG962E
• Channel: 2
• Max frequency: 30MHz/60MHz
• Sampling rate: 200MS/s
• Vertical resolution: 14 bits
• Modulation type: AM、FM、PM、FSK、Line、Log
• Impedance: 50Ω typical
• Insulation: Maximum 42Vpk to ground
• Protection: Channel protection
• Waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary
• Sweep modes: Logarithmic, linear
• Frequency Characteristics:
  • Sine: 1μHz~30MHz/1μHz~60MHz
  • Square: 1μHz~15MHz/1μHz~20MHz
  • Ramp: 1μHz~400kHz/1μHz~400kHz
  • Pulse: 1μHz~15MHz/1μHz~20MHz
  • Arbitrary: 1μHz~10MHz/1μHz~10MHz
• Resolution: 1μHz
• Accuracy: Within 90 days ± 50ppm Within; 1 year ± 100ppm; 18℃~28℃
• Impedance: 50Ω/High Z
• Amplitude range: 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
• DC offset range (AC+DC): ±5V (50Ω); ±10V (high Z)
• Amplitude resolution: 1mV
• Power: 100~240VAC, 50Hz/60Hz
• Display: 4.3” TFT LCD (480×272)
• Product color: White and grey
• Product net weight: 0.33kg
• Product size: 172 * 90 * 68mm
• Standard accessories: USB interface cable, power cord, BNC cable with alligator clips

Package includes:

• 1 x Oscilloscope
• 1 x Power Adapter
• 1 x BNC Cable
• 1 x BNC to Alligator Clip Cable
