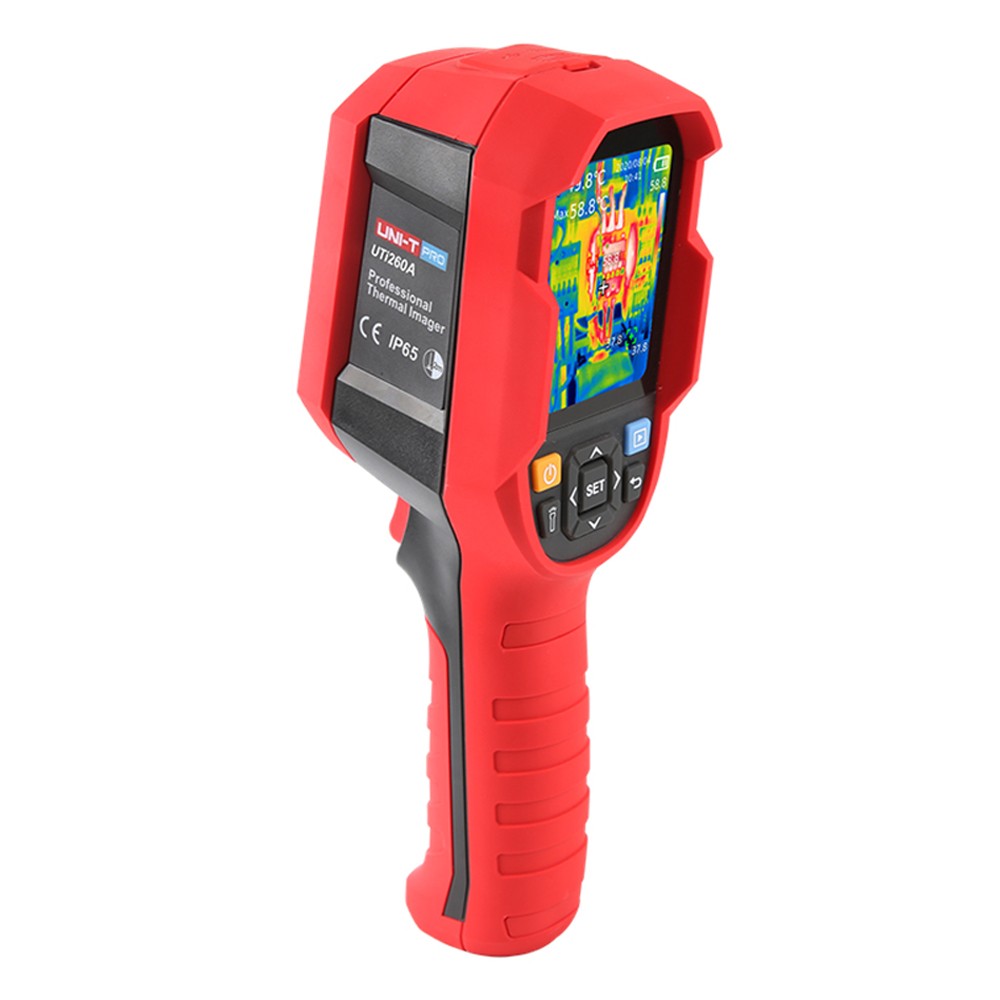

UNI-T UTi260A Handheld Thermal Imager Camera - Infrared for PCB Circuit Test and Repairs

UNI-T UTi260A Handheld Infrared Thermal Imager Camera for PCB Circuit Test Repairs

Overview:

The UNI-T UTi260A Handheld Infrared Thermal Imager Camera is a versatile tool designed for PCB circuit test repairs. It quickly confirms cold and hot temperature points, allowing you to identify abnormalities with ease.

Features:

• Quickly confirm the cold and hot temperature points to confirm the abnormality
• Select the temperature measurement area in the measurement range to avoid other heat sources outside the area affecting the measurement
• Three temperature measurement points can be added for testing
• Custom-adjusted emissivity /ambient temperature /distance
• Make compensation and correction according to different test environments and places to eliminate the impact of environmental impact on the test
• The temperature limit function of high-temperature alarm and low-temperature alarm can be set according to the actual application scenario
• The dust-proof grade is grade 6, preventing dust from entering
• The waterproof grade is grade 5, that is, low-pressure spraying at any angle has no impact on the work of the product
• It is strong and durable and can withstand 2 meters of fall prevention when handling difficult situations
• Tripod screw hole 1/4 adapter, convenient for quick installation and fixation
• After the USB mode in the thermal imager is set to U disk mode, connect the USB data cable to the computer to quickly create a picture analysis data report to support your maintenance plan and provide data analysis
• Summary:** Quickly and accurately identify temperature anomalies, with customizable settings and durable design.

Specification:

• Product number: UTi260A
• Temperature range: 20℃~400℃
• Sensor: uncooled focal plane
• Temperature measurement gear: High gain (default), low gain
• Temperature response time: ≤500ms
• Emissivity: 0.95(default)(0.01-1.00)
• Thermal imaging pixels: 256*192(49152)
• Pixel size: 12um
• Swatches: White Hot, Black Hot, Iron Red, Lava, Rainbow, High Contrast Rainbow, Red Hot
• Infrared spectral bandwidth: 8-14um
• Field of view: 56°*42.2°
• IFOV: 3.8mrad
• Lens focal length: 3.2mm
• Focus mode: Free Focus
• Thermal imaging sensitivity: <50mK
• Frame rate: <25Hz
• Temperature display: Center Point, High-Temperature Tracking, and Region of Interest (ROI)
• Temperature measurement unit: Celsius, Fahrenheit
• Temperature measuring point: In addition to the center point,3 temperature measurement points can be customized for High and low-temperature alarm
• Image alarm: LED alarm
• Precision: ±2℃/±2% whichever is larger
• PC software: Real-time viewing of images/infrared image analysis via PC software
• Data communication: Type-C USB(U disk storage file download)
• Certification: CE,FCC
• Operating temperature: -10℃-50℃(32℉-122℉)
• Storage temperature: -20℃-60℃(4℉-140T)
• Working humidity: 10%~95%Rh(non-condensing)
• IP rating: IP65
• Drop test: 2M
• Tripod mount: Support
• Display screen: 2.8*TFT LCD
• Display resolution: 320*240
• Battery: 5000mAh(18Wh)
• Automatic shut-down: Optional(5min,10min,30min,OFF)default 30min
• Usage time: 7-9 hours
• Charging time: less than 5 hours
• Charging voltage/current: 5V/2A
• Body weight: 520g
• Dimensions: 237*75.5*86mm

Package includes:

• 1 x Thermal Imager
• 1 x Cable
