UTi260M UNI-T Type-C Thermal Imager for Mobile Phones - PCB Circuit Failure Test Thermographic

UNI-T UTi260M Type-C PCB Circuit Failure Test Thermographic Thermal Imager for Mobile Phones

Product Overview

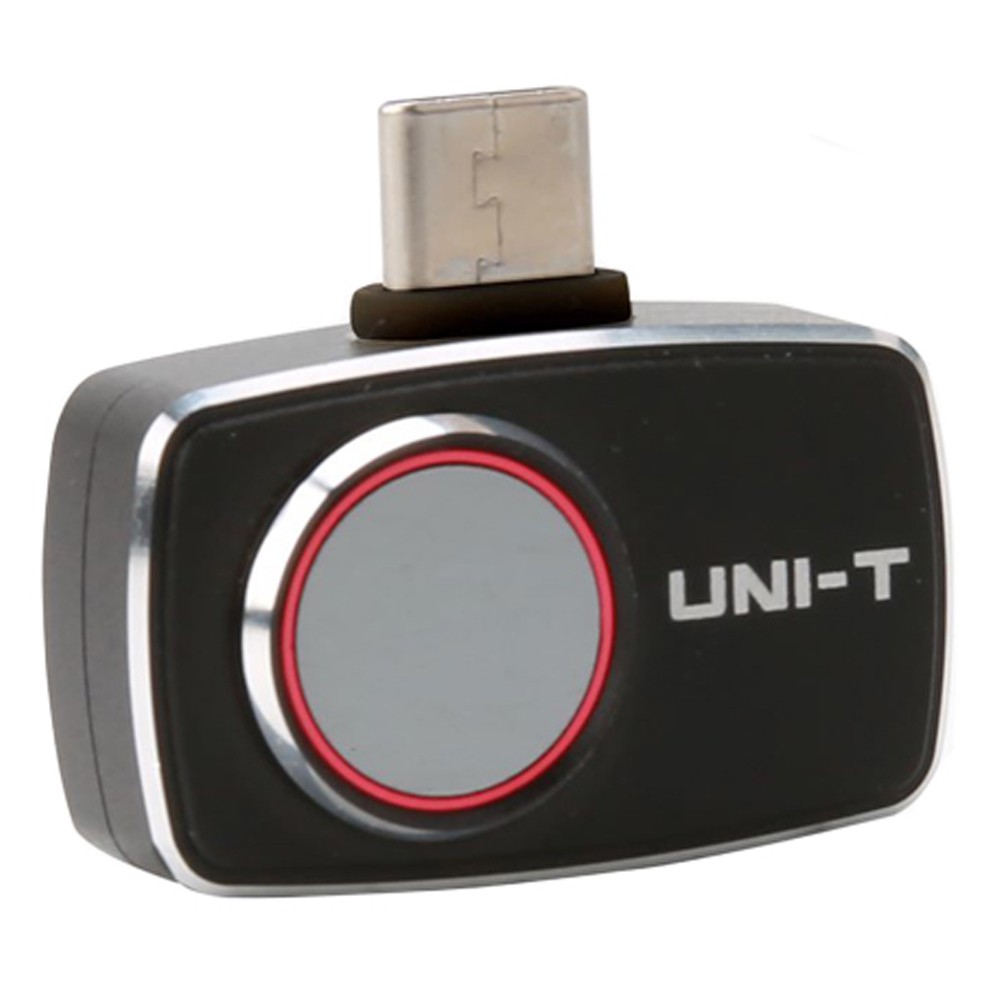

The UTi260M is a professional thermal camera module for smartphones, designed to be compact, portable, and easy to operate by connecting with mobile phones. It provides a clear image with a fast response, making it perfect for troubleshooting HVAC problems, investigating heat source issues, and more.

Key Features:

• High-Resolution Imaging: 256×192 IR resolution for clear images
• Wide Temperature Range: -20℃ ~ 550℃ for accurate temperature measurement
• Dual Measurement Modes: Industry and Elevated Skin Temperature (EST) modes for versatile applications
• Auto Alarm and Tracking: Automatic alarm for high/low temperature and hot spot/cold spot tracking
• Image and Video Capture: Capture images and videos with on-screen analyzer and 7 color palettes
• Compact and Portable: Weighs only 12g with a compact size of 33*28.2*11.3mm

**Summary:** A portable and compact thermal camera module for smartphones, ideal for DIY homeowners, outdoor enthusiasts, engineers, contractors, and builders.

Specification:

• IR resolution (Pixels): 256×192
• Field of view (FOV): 56.0°×42.2°
• Thermal sensitivity (NETD): ≤50mK @25℃
• Spatial resolution (IFOV): 3.8mrad
• Frame rate: 25Hz
• Focus: Focus free
• Lens focal length: 3.2mm
• Temperature measurement range: -20℃ ~ 550℃
• Temperature scale: Low gain: -20℃~150℃; High gain: 0℃~550℃
• Measurement modes: Industry, EST
• Accuracy: Industry: ±2° or ±2% whichever is greater (0℃~550℃); EST: ±0.5° (30℃~40℃)
• Emissivity: 0.01~1.00 adjustable (0.95 default)
• Color palettes: 7(White hot, Lava, Ironbow, Black hot, Red hot, Rainbow, Rainbow HC)
• Image modes: Thermal, Fusion, PIP
• On-screen analyzer: Points/ Lines / Rectangles
• Auto alarm for high/low temperature: Yes
• Video recording: Yes
• General Characteristics: Yes
• USB: Type-C
• Drop proof: 1m
• Image/Video storage format: JPEG
• Certificates: CE, FCC
• Product net weight: 12g
• Product size: 33*28.2*11.3mm

Package Includes:

• 1 x Thermal Imager
