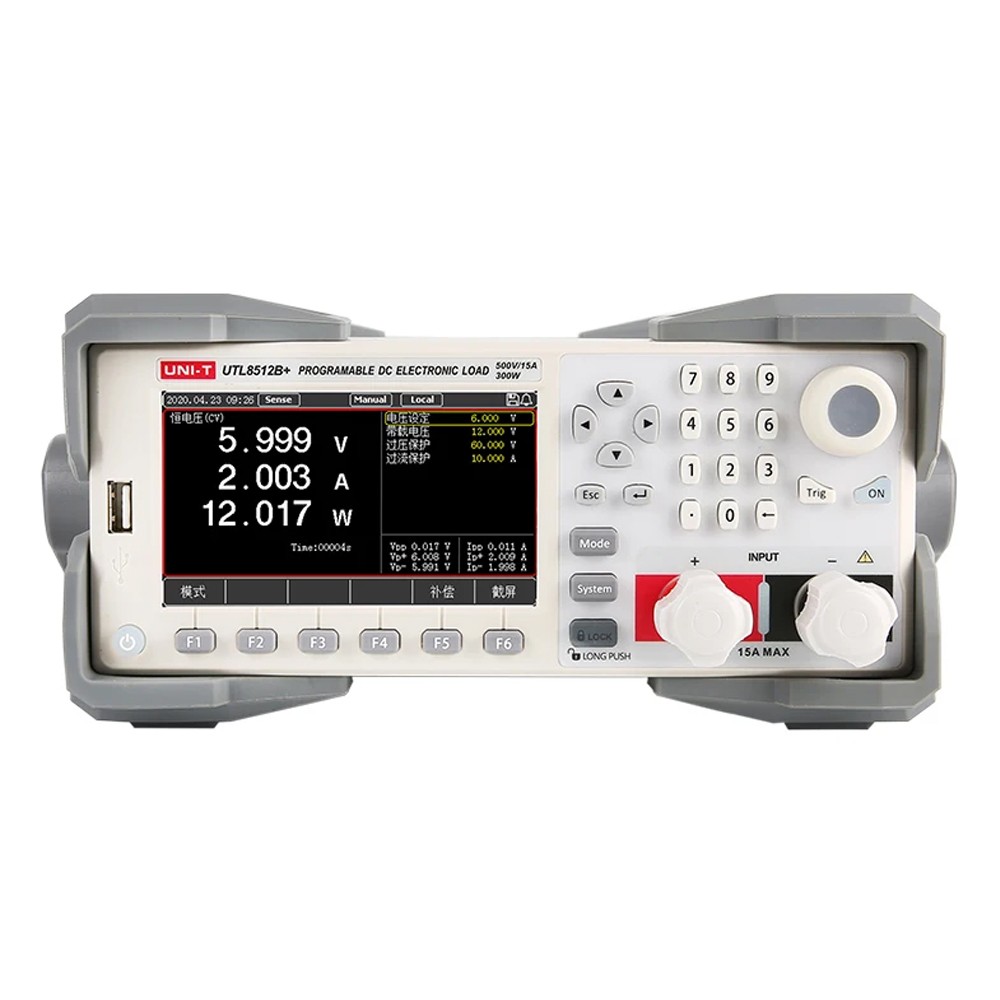

UNI-T UTL8512B+ High-Precision Programmable DC Electronic Load Meter

UNI-T UTL8512B+ High Precision Programmable DC Electronic Load Meter

Features:

• Measuring range 150W/300W/600W, 150V/500V,15A/30A/120A
• CC/CV/CR/CP four basic modes
• 0.1mV/0.1mA high resolution
• Voltage and current sampling rate of 40kHz, dynamic frequency up to 10k dynamic current/voltage test
• Constant resistance + constant current, constant voltage + constant resistance, constant voltage + constant current three combinations of test
• CR-LED test, power rise/fall time test.
• OCP/OPP/OVP test, load effect test
• Ripple sampling and detection function
• Independent short circuit test function (only valid in CC, CV, CR, CP mode)
• Over-voltage, under-voltage, over-current, over-power, overheat and anti-reverse connection protection
• List mode self-storage, support external U disk save and call, support U disk upgrade system
• List of self-starting voltage functions, over-voltage short-circuit voltage limiting function
• Screenshot and list save and recall function.
• Remote voltage compensation input function, current remote monitoring function, external trigger function
• Intelligent temperature control fan, power failure memory function
• Standard RS-232C interface, support for SCPI protocols
• Matching upper computer software to realize remote control and monitoring.
• Applicable to standard half 2U cabinet

Summary of Key Features:

High precision programmable DC electronic load meter with advanced features

• High accuracy and resolution
• Multiple test modes and functions
• Advanced protection features
• Remote control and monitoring capabilities
• Compact and durable design

Specification:

• Model: UTL8512B+

Rated (0~40℃):

• Input voltage: 0~500V
• Input Current: 0~1.5A/0~15A
• Input power: 300W
• Minimum Operating Voltage: 3V at 15A

Constant Power in Any Mode:

• Range: 0~50V/0~500V
• Resolution: 0.1mV/1mV
• Accuracy: ±(0.05%+0.025%FS)

Constant Current Mode:

• Range: 0-1.5A/0-15A
• Resolution: 0.1mA/1mA
• Accuracy: ±(0.05%+0.05%FS)

Constant Resistance Mode:

• Range: 0.1Ω-25kΩ
• Resolution: 16bit
• Accuracy: 0.1%+0.08FS

Constant Power Mode:

• Range: 300W
• Resolution: 10mW
• Accuracy: ±(0.1%+0.1%FS)

Dynamic Mode (CC Mode):

• T1 & T2: 50μs~99.999s/Res:1μs
• Accuracy: 5μs ±100ppm
• Rise/Fall Slope: 0.001~1.5A/μs
• Minimum rise time: ≥10μs

Voltage Readback Value:

• Range: 0-50V/0-500V
• Resolution: 0.1mV/1mV
• Accuracy: ±(0.025%+0.025%F5)

Current Readback Value:

• Range: 0-3A/0-15A
• 0.01mA/0.1mA
• Accuracy: 0.05%+0.05%FS

Power Readback Value:

• Range: 300W
• Resolution: 10mW
• Accuracy: ±(0.1%+0.1%FS)

Package Includes:

• 1 x Electronic Load Meter
• 1 x Power Cable
