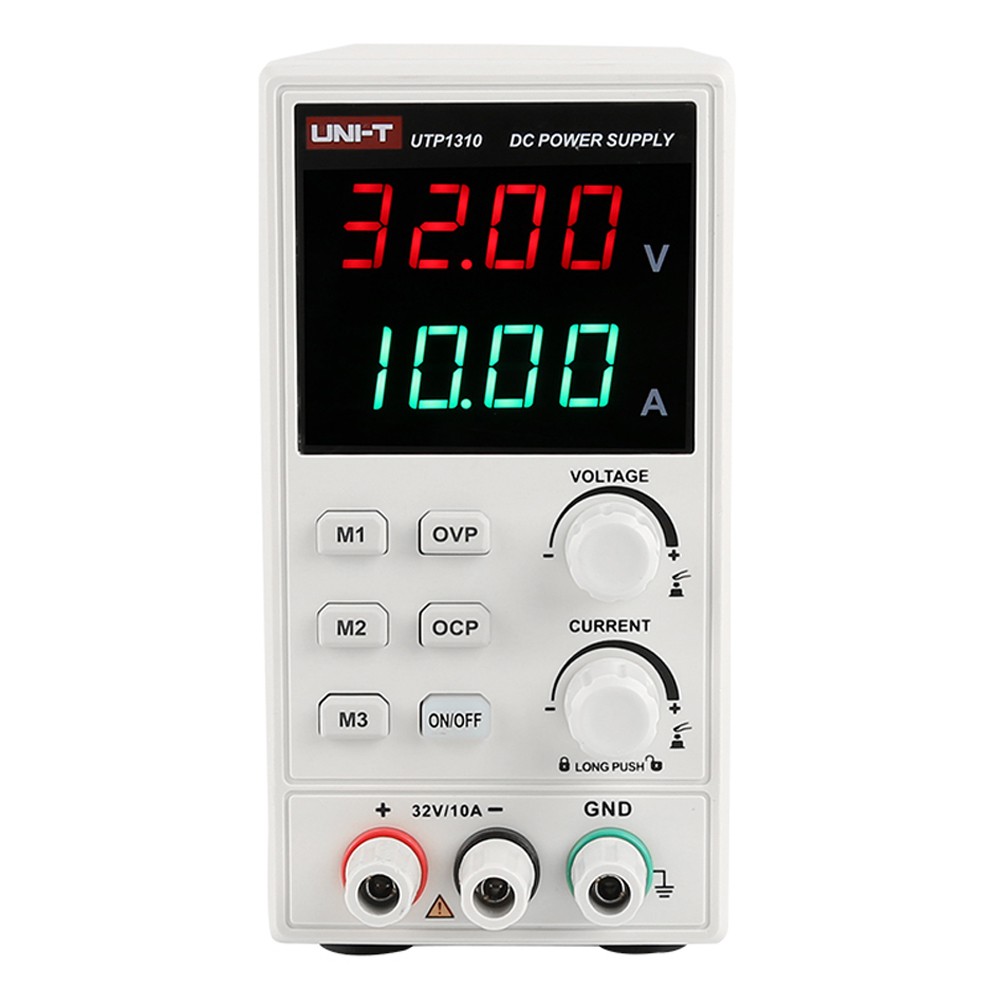

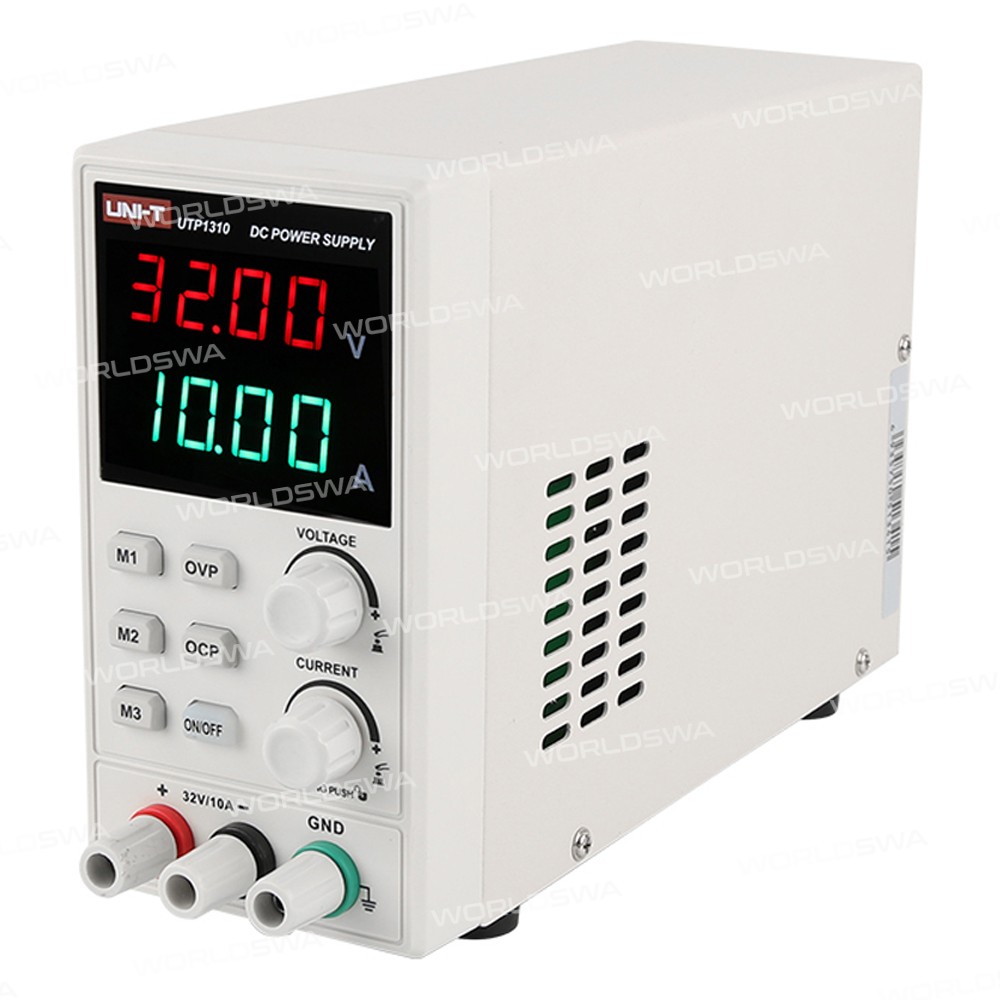

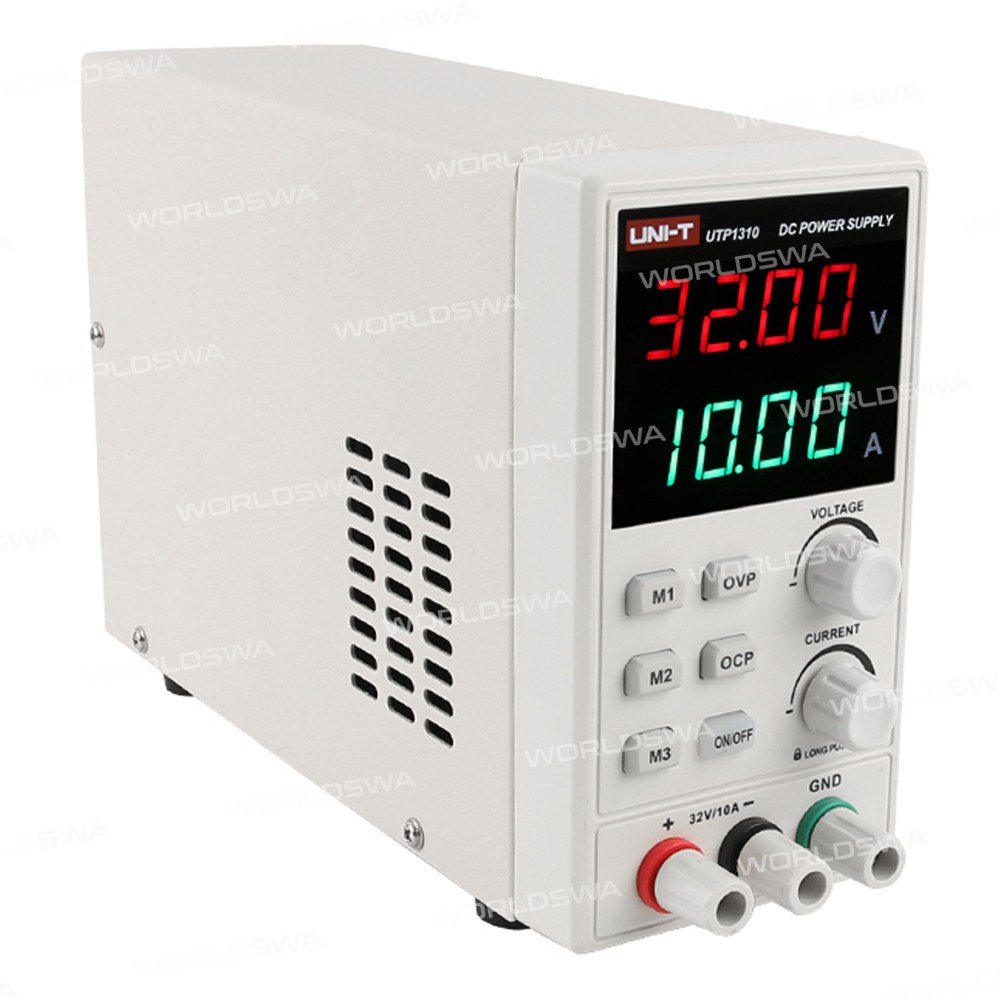

UNI-T UTP1310 32V / 10A Adjustable DC Regulator Power Supply with 4-Digits Display

UNI-T UTP1310 32V/10A 4-Digits Display Adjustable DC Regulator Power Supply

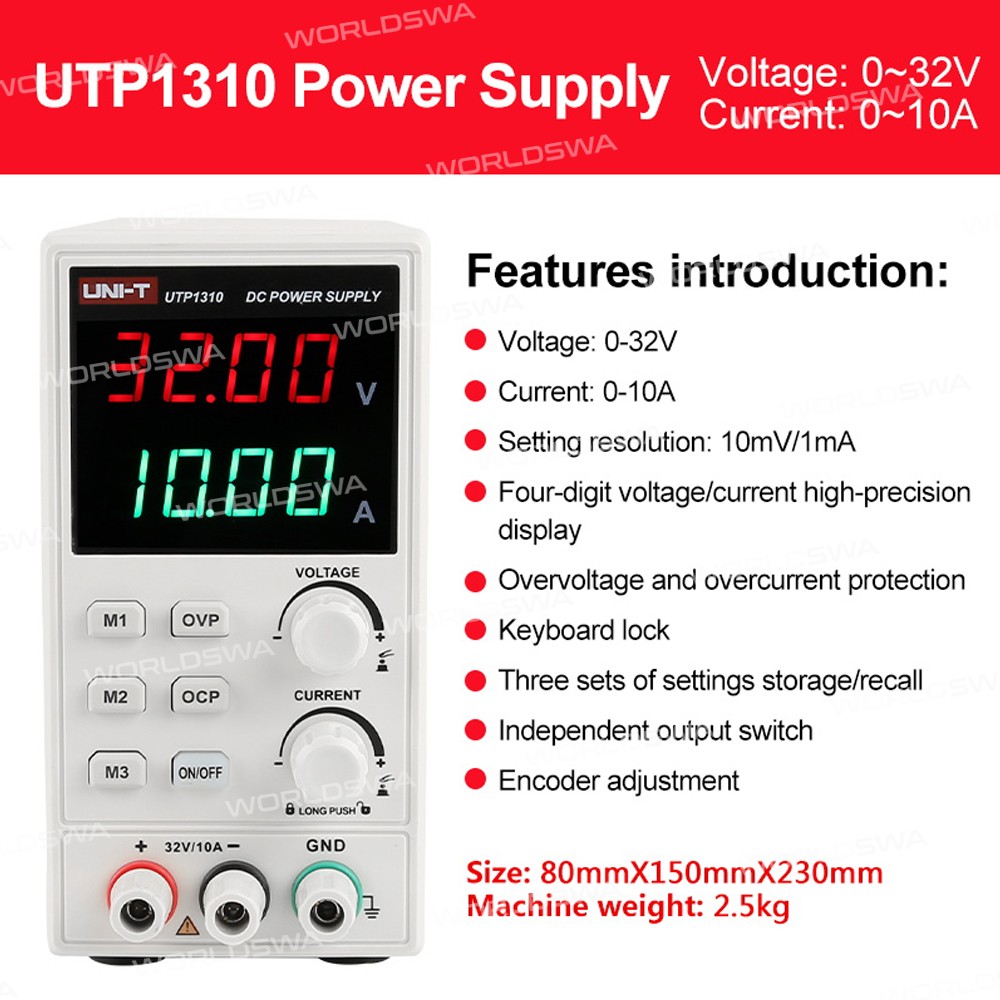

Features:

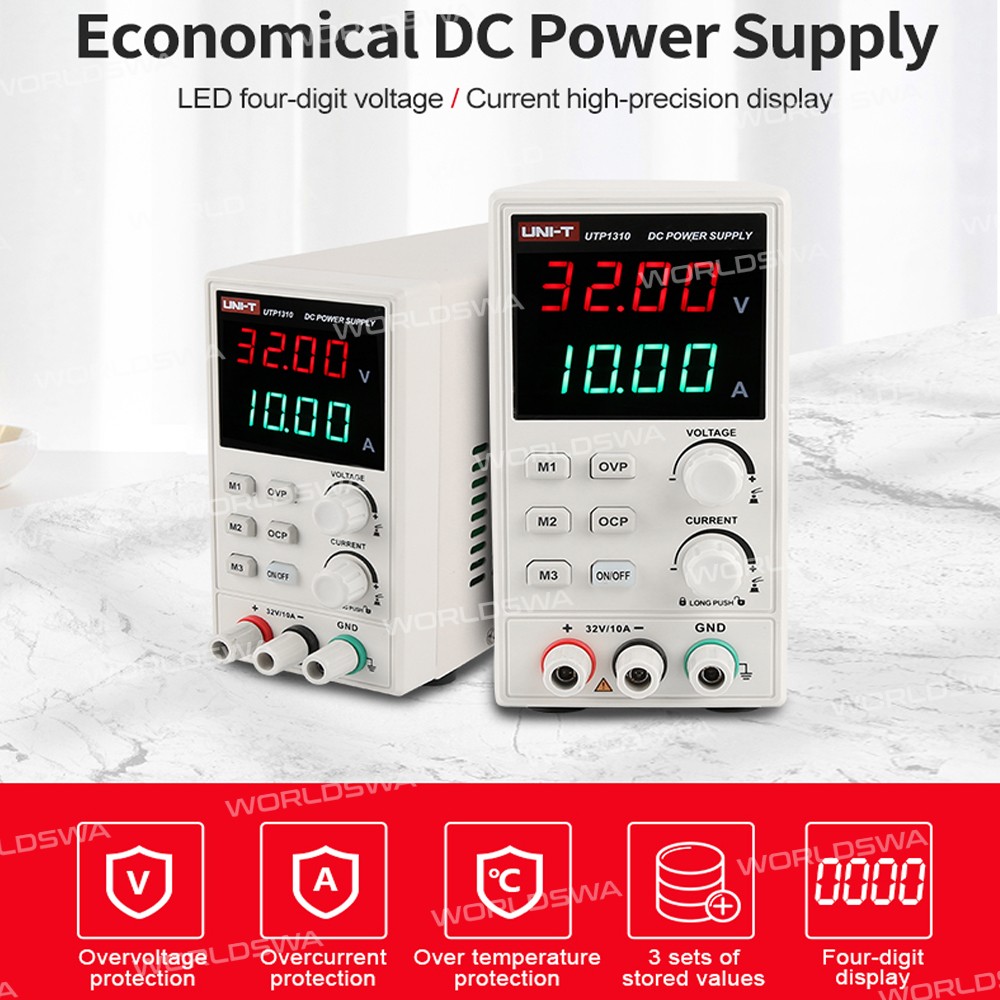

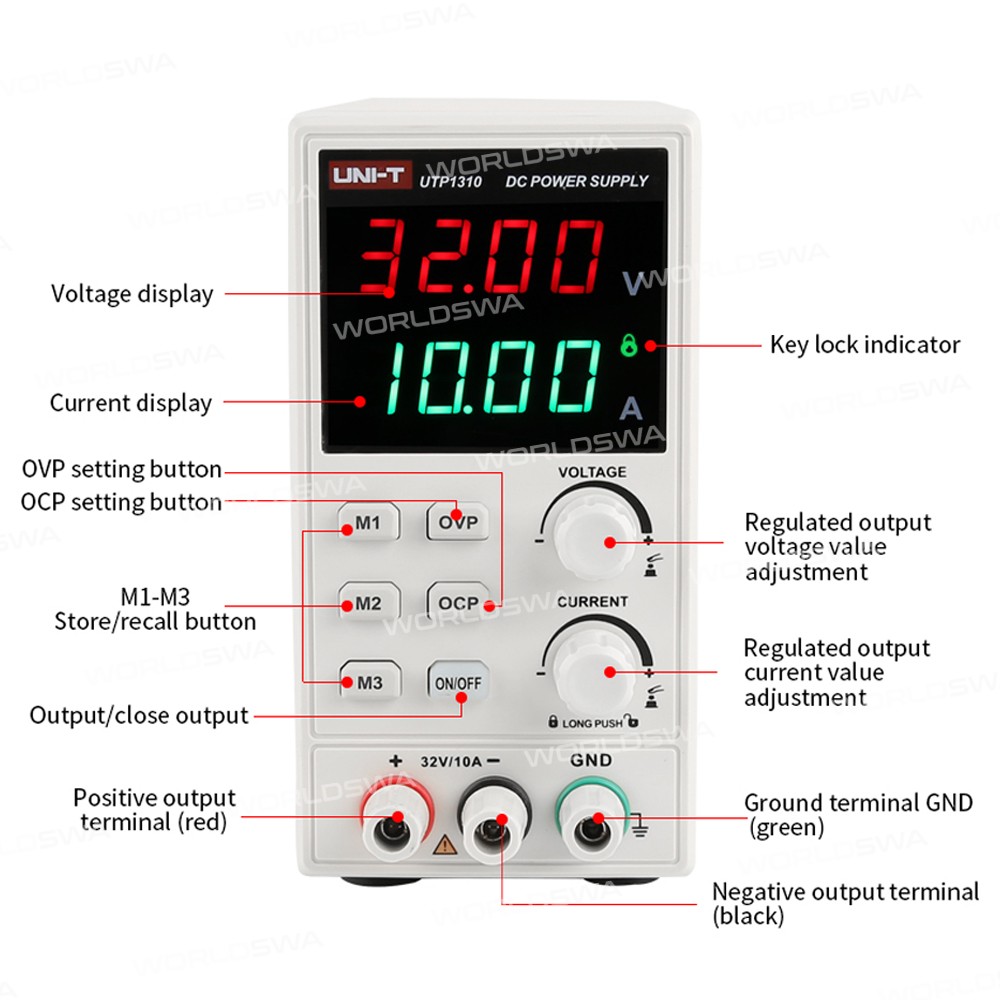

• UTP1310, economical DC power supply, LED four-digit voltage/Current high-precision display
• Overvoltage protection/Overcurrent protection/Over temperature protection/3 sets of stored values/Four-digit display

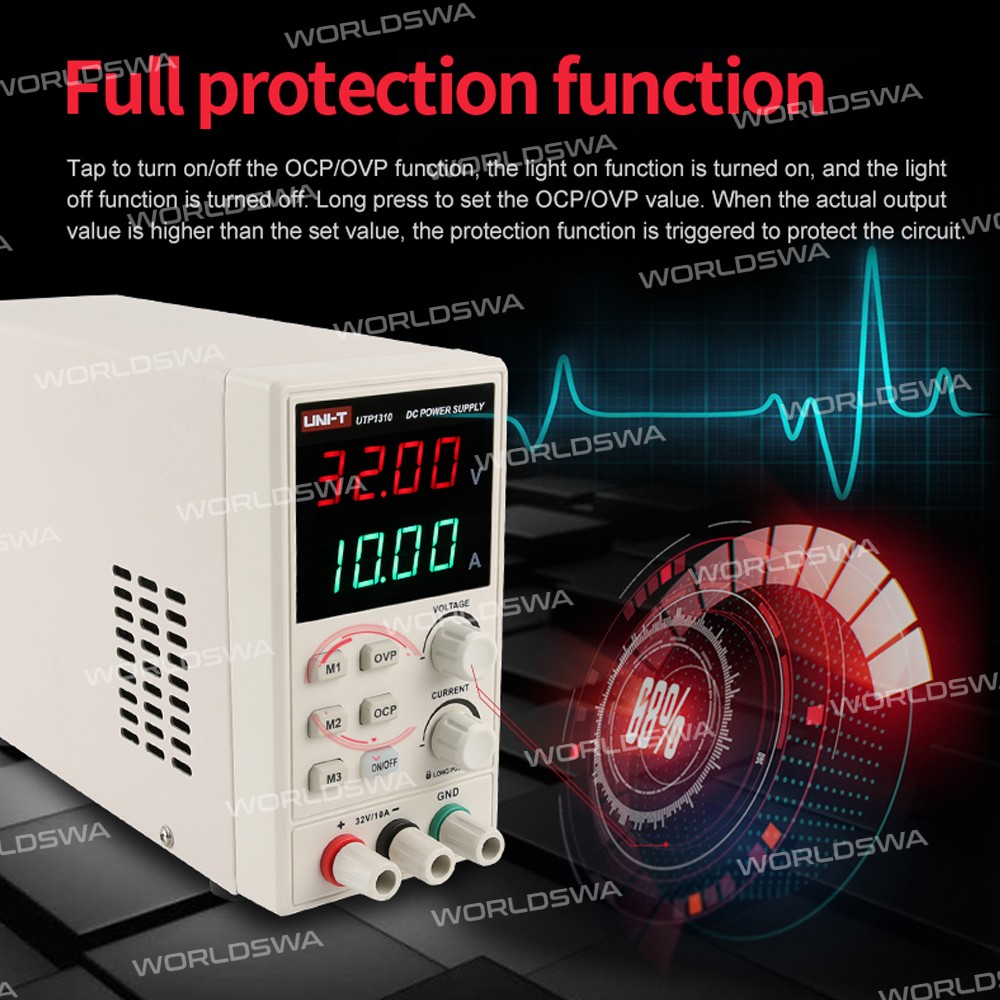

• Summary:** Tap to turn on/off the OCP/OVP function, independent output switch for stable output, and possess pure output/excellent performance indicators
• When the actual output value is higher than the set value, the protection function is triggered to protect the circuit
• The protection function opens when the actual voltage output value is higher than the set value

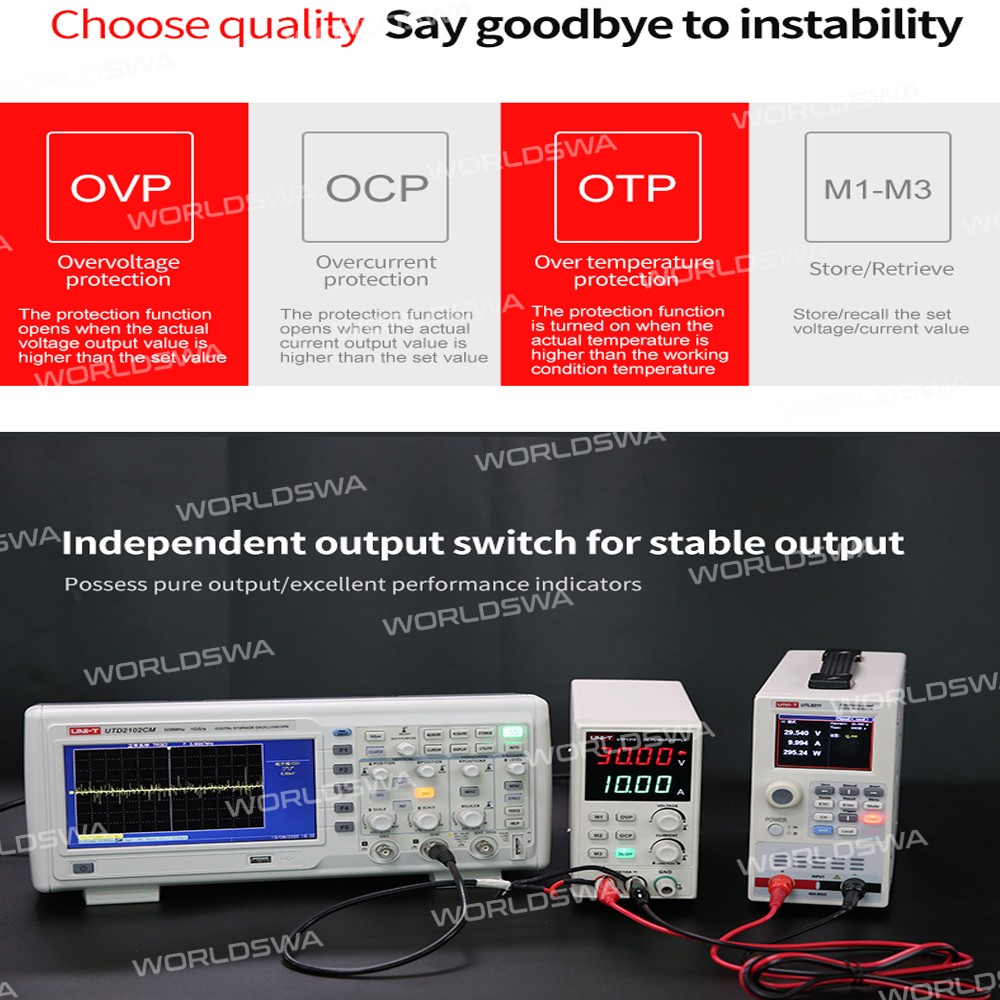

• Independent output switch for stable output, possess pure output/excellent performance indicators

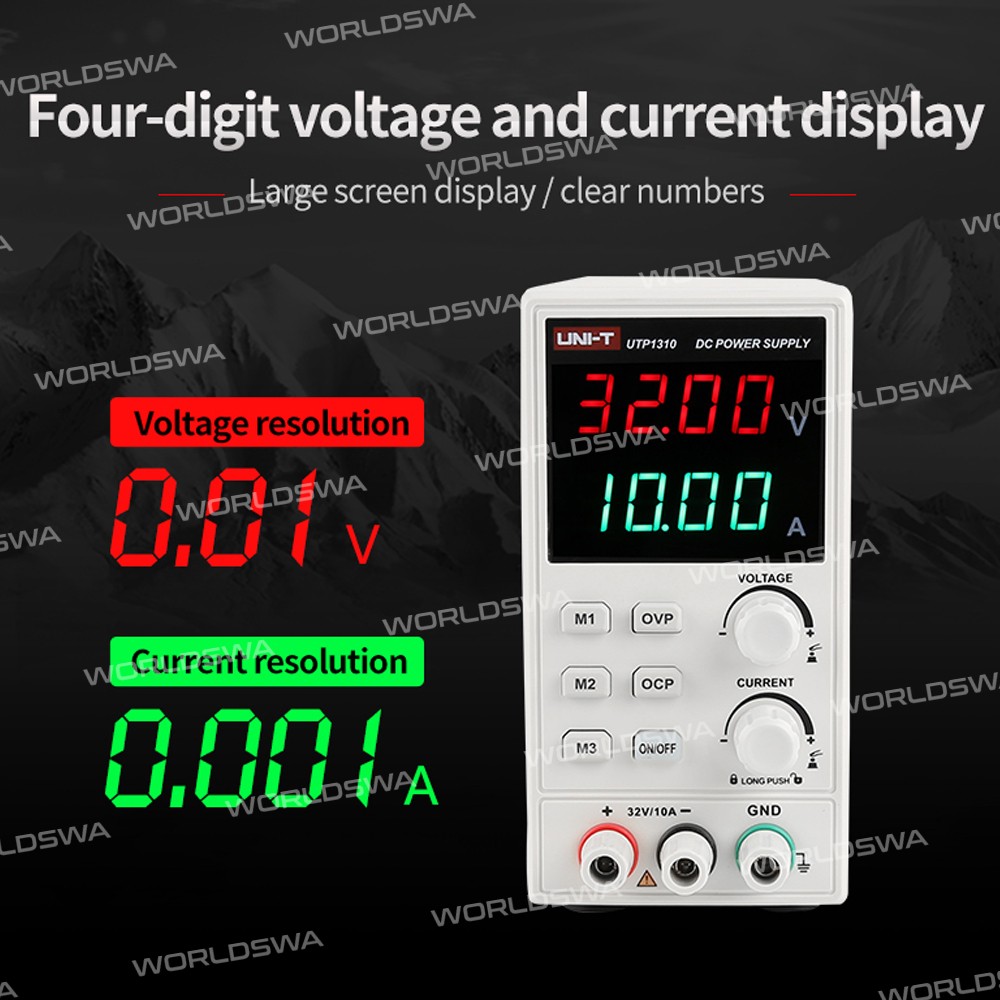

• Four-digit voltage and current display, large screen display /clear numbers

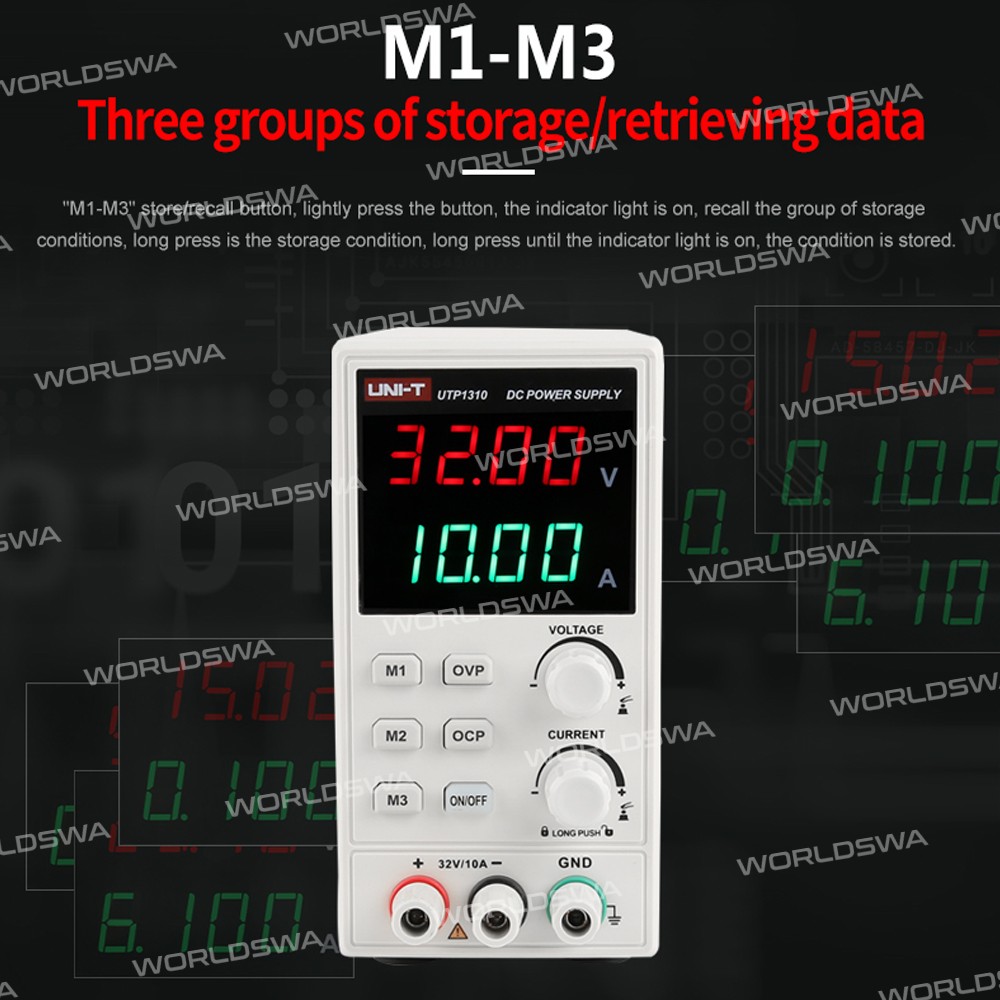

• Three groups of storage/retrieving data
• "M1-M3" store/recall button, lightly press the button, until the indicator light is on, and recall the group of storage conditions, Long press is the storage condition, long press until the indicator light is on, the condition is stored

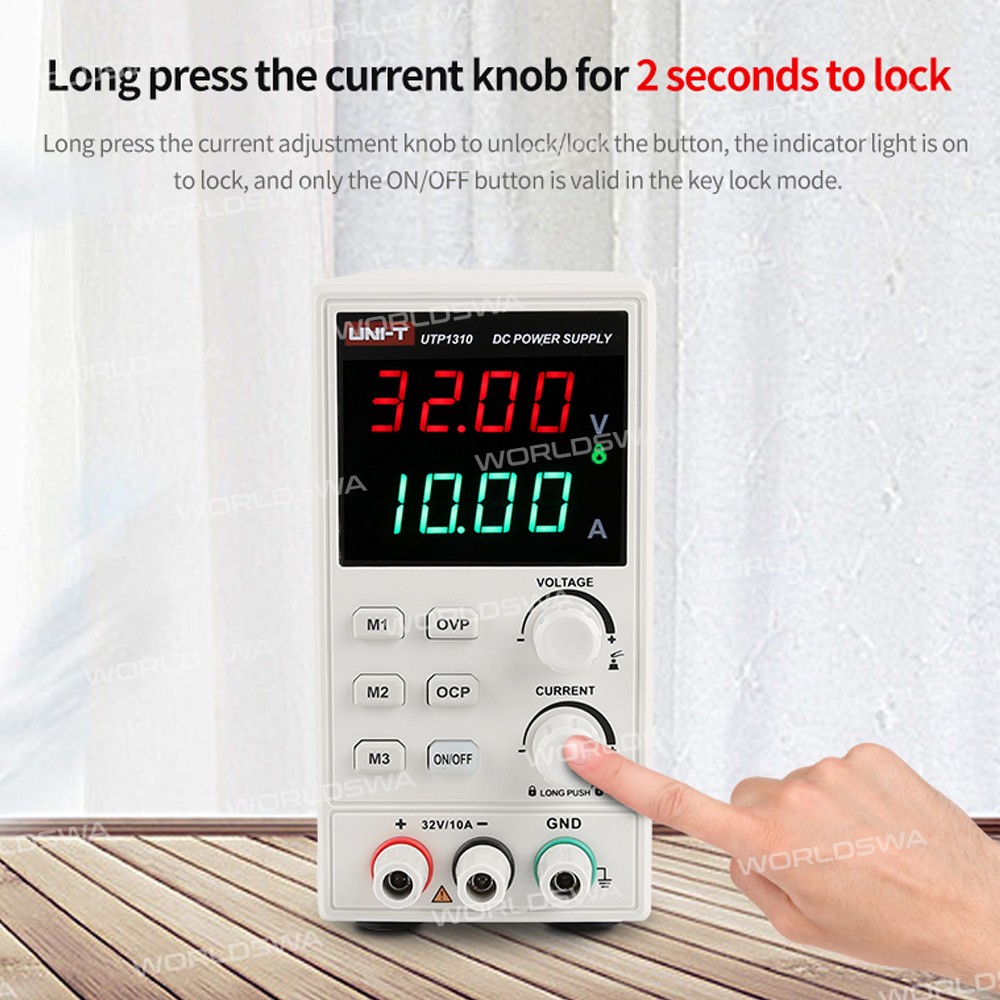

• Long press the current adjustment knob to unlock/lock the button, the indicator light is on to lock, and only the ON/OFF button is valid in the key lock mode

Specification:

• Model: UTP1310
• Rated output voltage/current: 0~32V/0~10A
• Output Power: 320W
• Load regulation rate: Voltage:≤0.1%+5mV; Current:≤0.2%+3mA
• Power regulation rate: Voltage:≤0.01%+5mV; Current:≤0.2%+3mA
• Set resolution: Voltage: 10mV; Current: 1mA
• Readback resolution: Voltage: 10mV; Current: 1mA
• Setting accuracy: Voltage:<0.1%+1digits; Current:<0.2%+3mA
• Ripple: Voltage:≤10 mVrms; Current:≤5mArms
• OCP(Over Current Protection): 0~10A±0.2%FS
• OVP(Overvoltage protection): 0~32V±0.2%FS
• Maximum current: 10.0A±0.2%
• Display type: LCD digital tube display

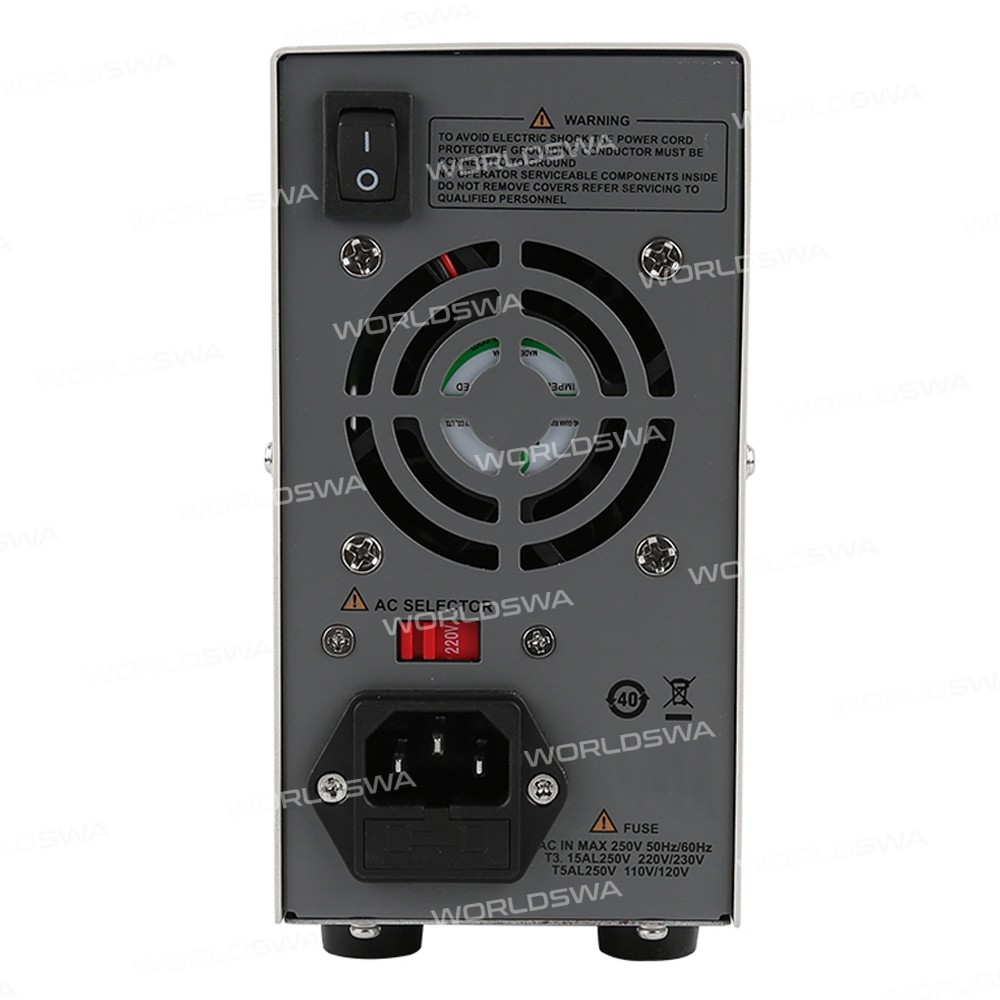

• Voltage: AC110/220V±10%
• Maximum voltage: 32V±0.2%
• Size(W*H*D): 80*150*230mm
• Weight: 2.5kg

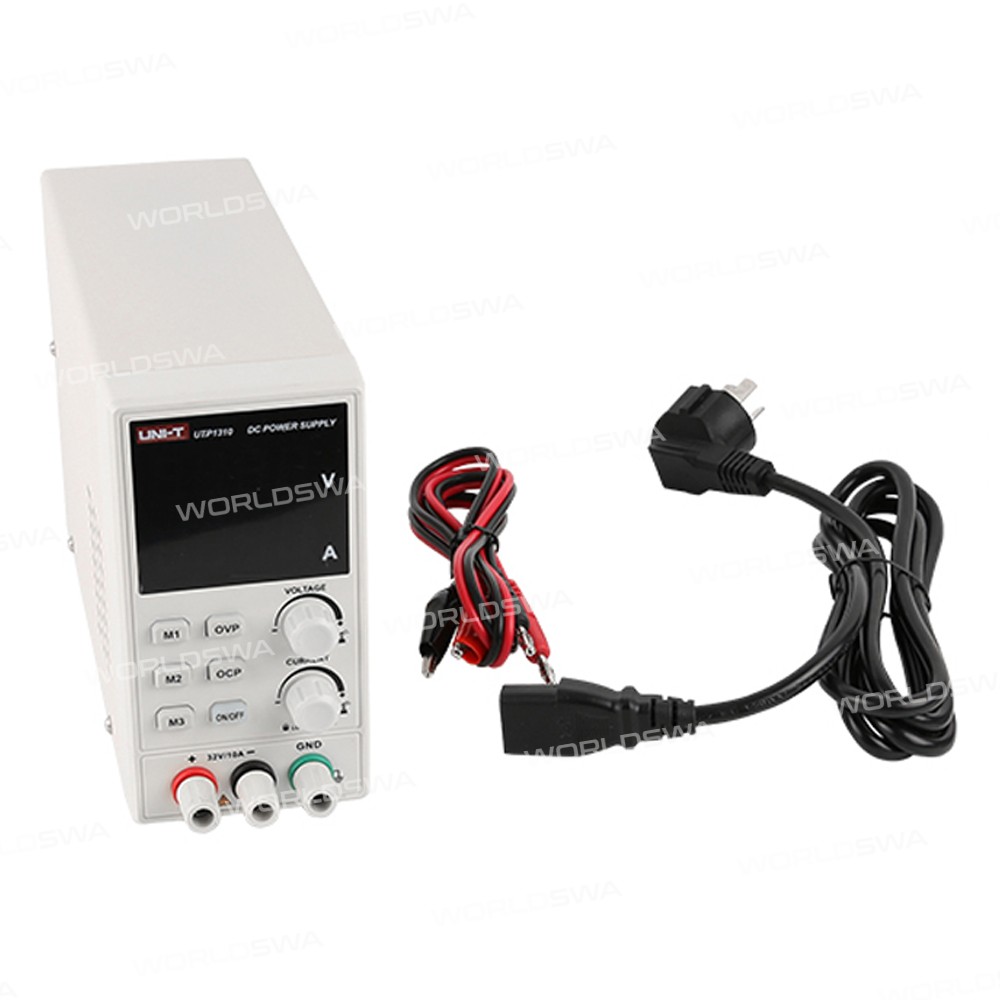

Package includes:

• 1 x Power Supply
• 1 x Power Cable
• 1 x Test Line
