UNI-T UTP3305-II 3-Channel Adjustable Programmable Digital DC Power Supply, 32V / 5A

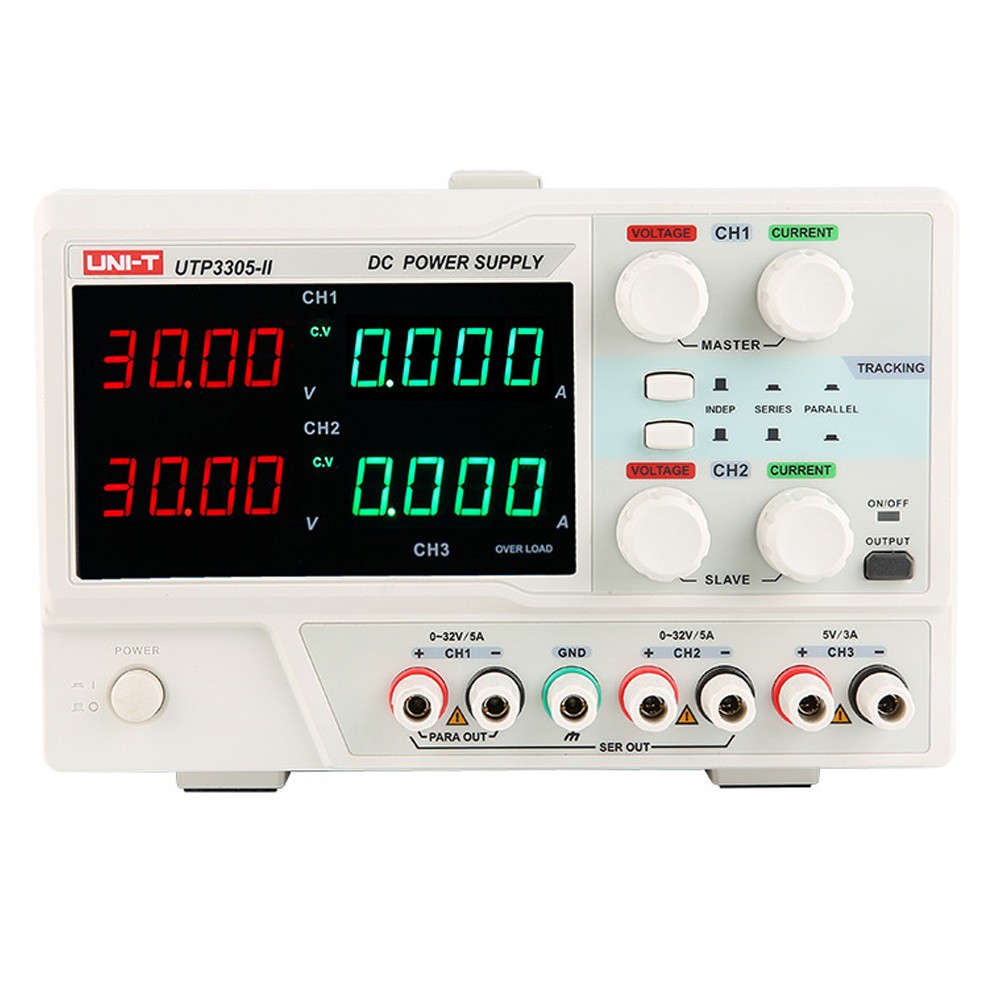

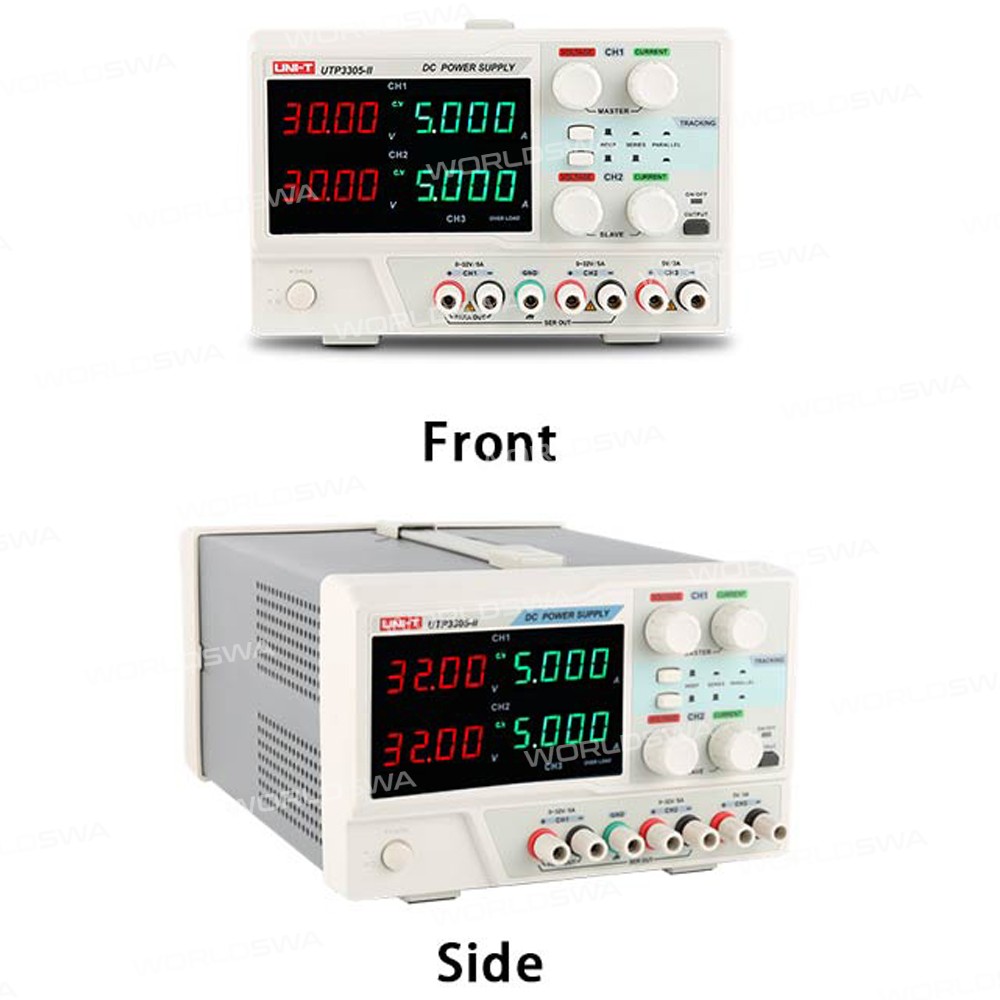

UNI-T UTP3305-II 32V/5A 3-Channel Adjustable Programmable Digital DC Power Supply

Overview

The UTP3000-II series DC-regulated power supply is a class of high-performance linear DC-regulated power supplies with three outputs. With pure output and excellent performance indicators, it is used in scenarios such as product development and debugging, quality control and inspection, production automation testing, and teaching experiments to meet diverse testing needs.

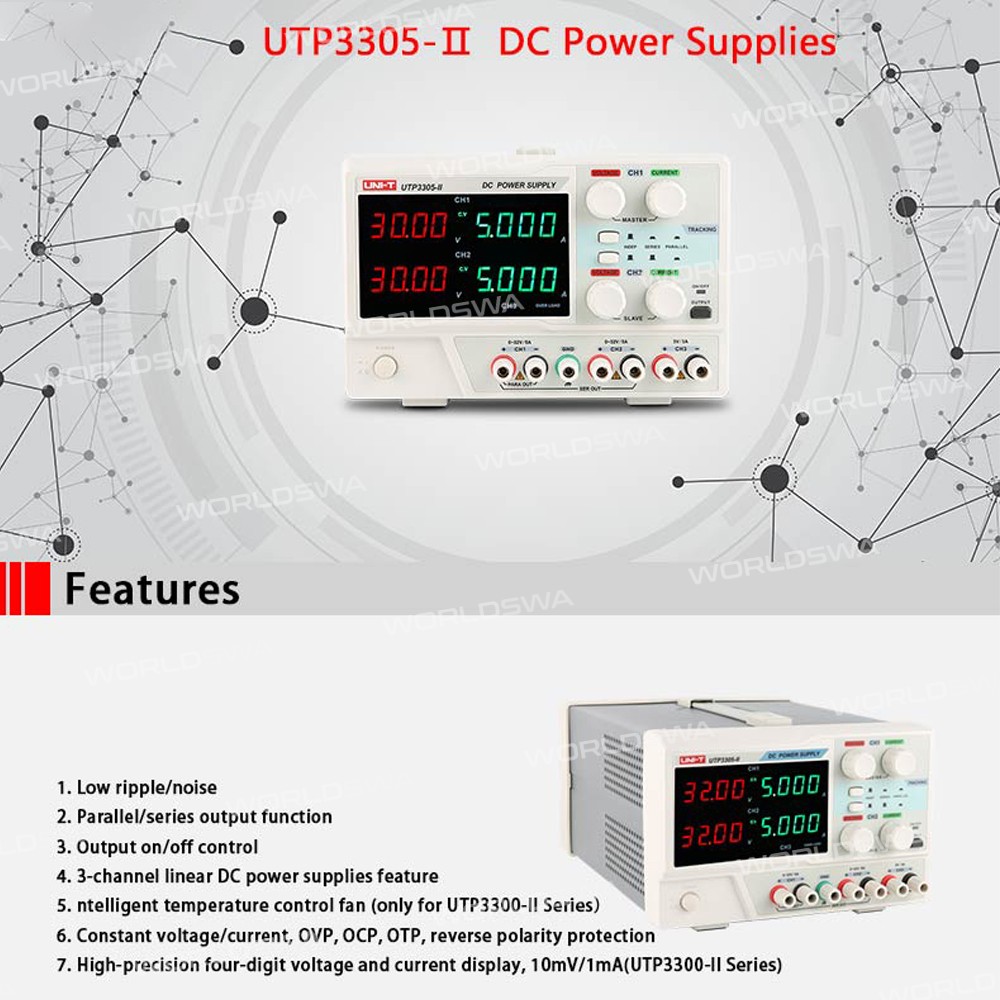

Features:

• Low ripple/Noise
• Parallel/Series output function
• Output on/off control
• 3-channel linear DC power supplies feature
• Intelligent temperature control fan (only for UTP3300-lI Series)
• Constant voltage/current, OVP, OCP, OTP, reverse polarity protection
• High-precision four-digit voltage and current display,10mV/1mA(UTP3300-lI Series)
• DC-regulated voltage and current power supply with high stability, reliability, and accuracy with three outputs
• Multi-turn precision potentiometer to set voltage and current output values
• Summary:** High-performance linear DC-regulated power supply with three outputs, featuring low ripple/noise, parallel/series output function, and intelligent temperature control fan.

Specification:

• Model: UTP3305-lI
• Rated voltage (CH1/CH2): 0-32V
• Rated current (CH1/CH2): 0~5A
• Output power: 315W
• Load regulation rate: voltage: <0.01%+3mV; current: ≤0.2%+3mA
• Power regulation rate: voltage: <0.01%+3mV; current: <0.1%+5mA
• Setting resolution: voltage: 10mV; current: 1mA
• Readback resolution: Voltage: 10mV; Current: 1mA
• Set/readback accuracy (25°C±5°C): Voltage: ±(0.1% of reading+30mV); Current: ±(0.3% of reading+10mA)
• Ripple and noise (20Hz~20MHz): Voltage: ≤1mVrms; Current: ≤3mArms
• Parallel load effect: ≤0.01%+20mV
• Parallel power regulation rate: ≤0.01%+3mV
• Series load effect: ≤300mV
• Series power supply regulation rate: ≤0.01%+5mV
• CH3 output characteristics: voltage: 5.0V; current: 3A
• Load regulation rate: 3%+5mV
• Power supply regulation rate: 5mV
• Ripple: 2mV
• Display type: Four-digit digital tube display

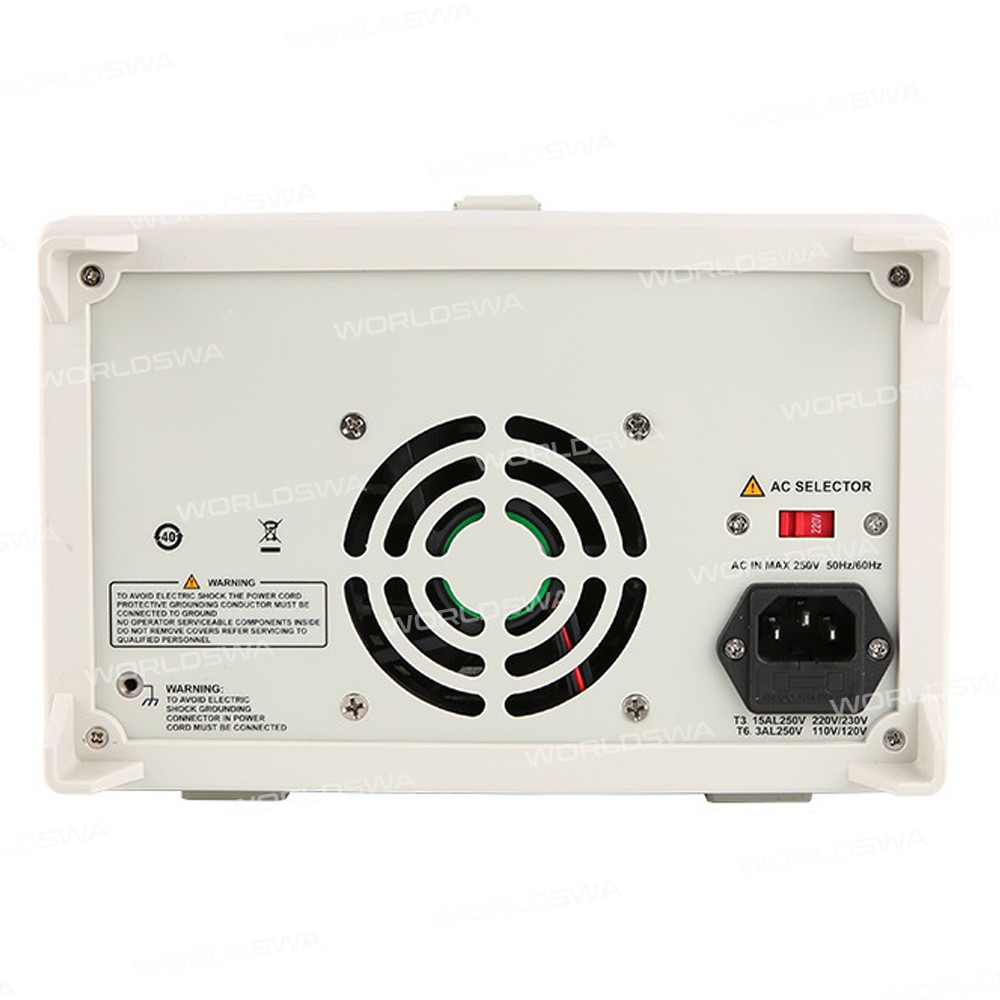

• Supply voltage: AC 110V/220V
• Size: 226*146*319mm
• Weight: 10.5kg

Package includes:

• 1 x Power Supply
• 1 x Power Cable
