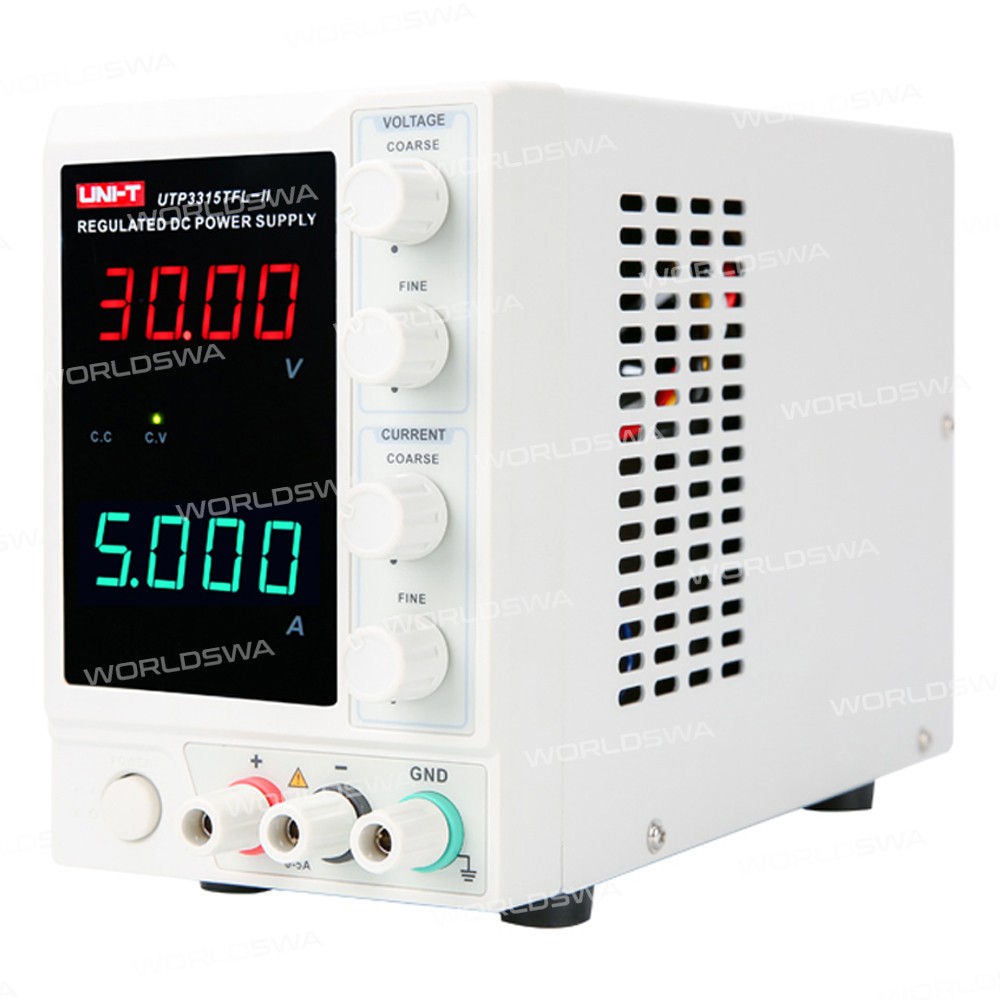

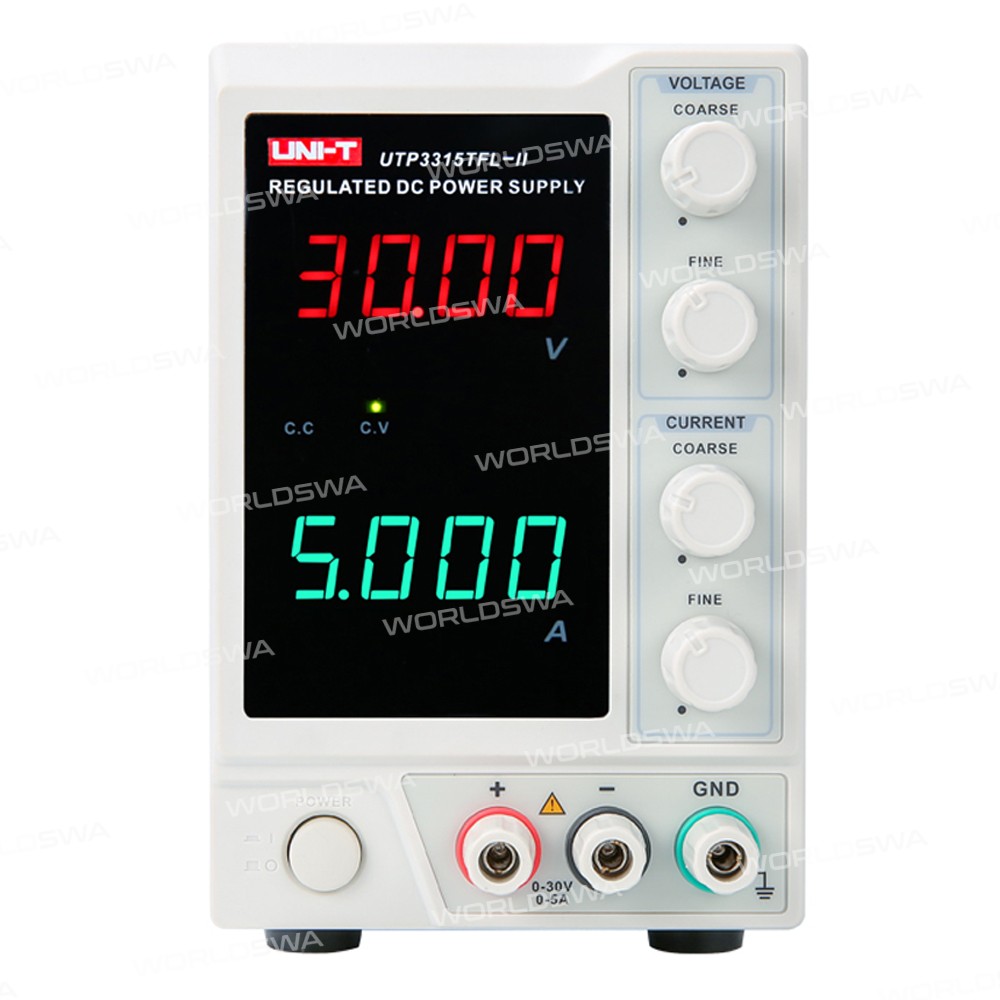

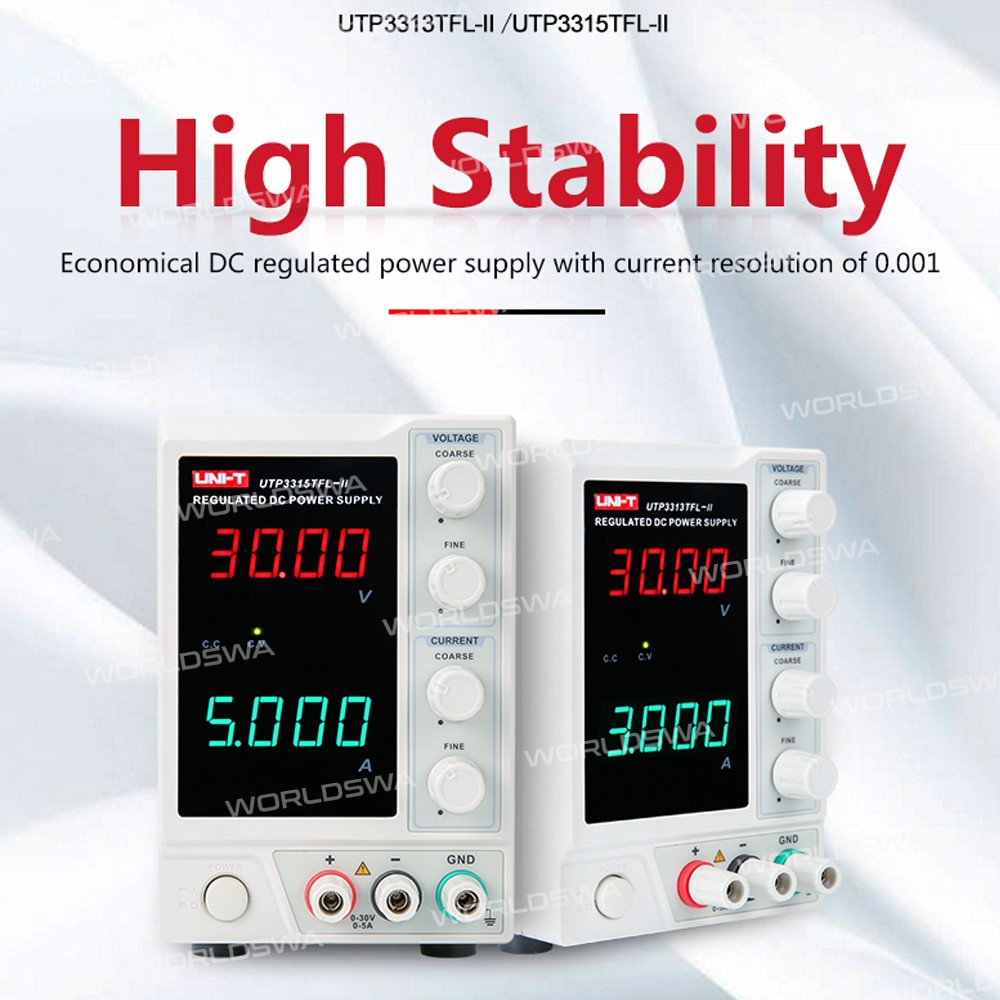

UNI-T UTP3313TFL-II UTP3315TFL-II Switching Voltage Regulate DC Linear Power Supply
Features:

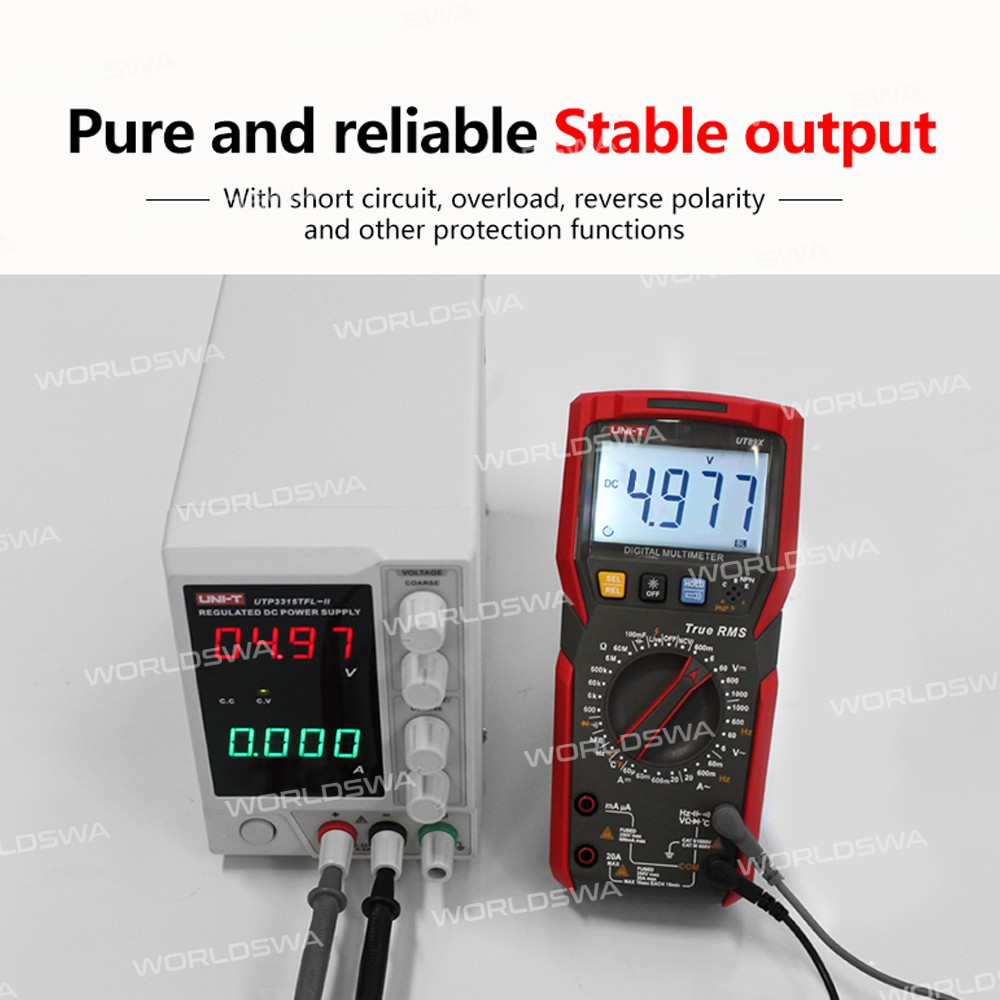

- Pure and reliable, stable output, with short circuits, overload, reverse polarity, and other protection functions

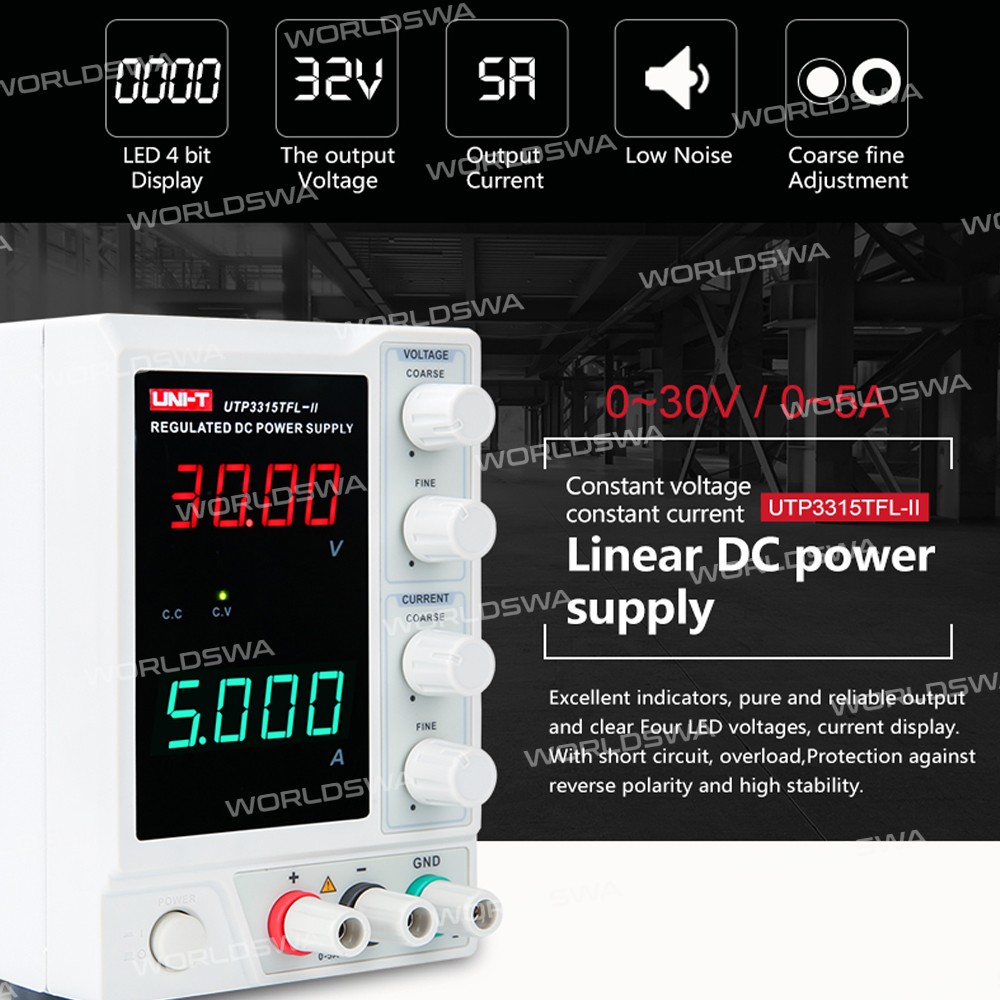

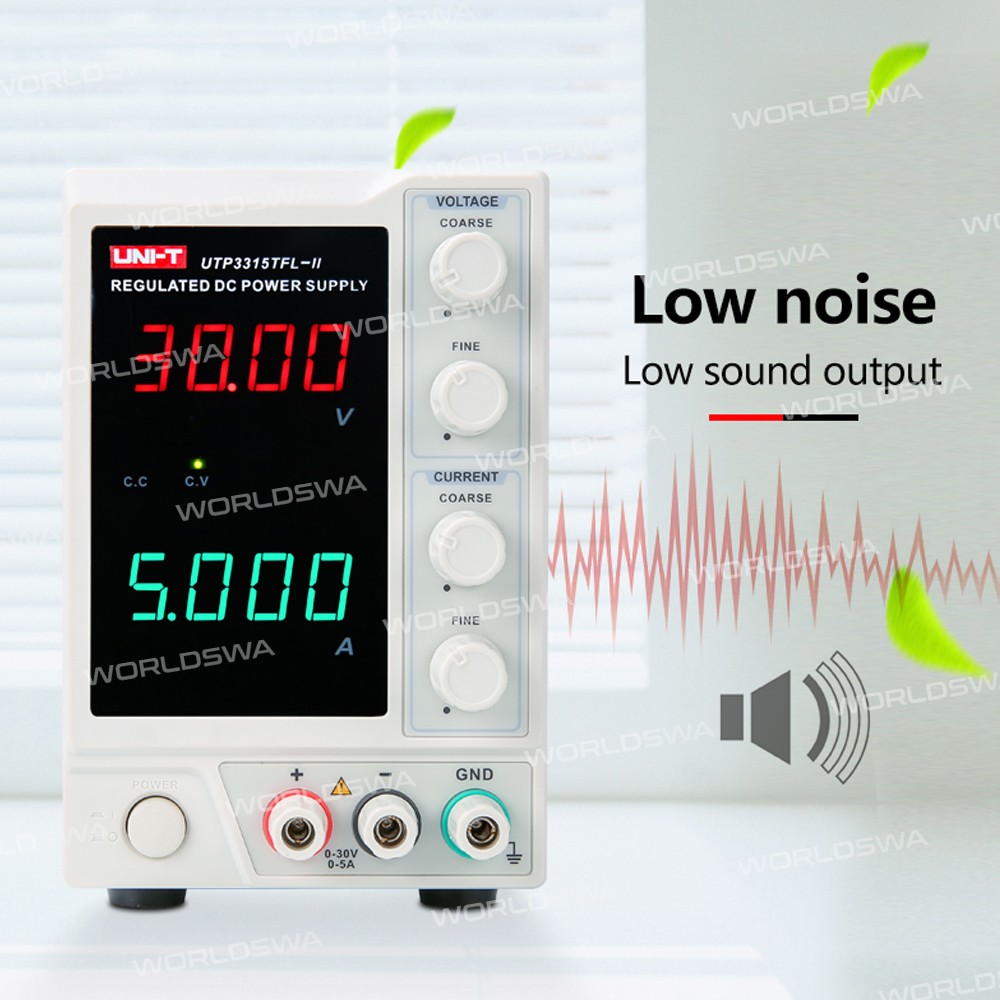

- Excellent indicators, pure and reliable output, and clear Four LED voltages, current display, with short circuit, overload, protection against reverse polarity, and high stability

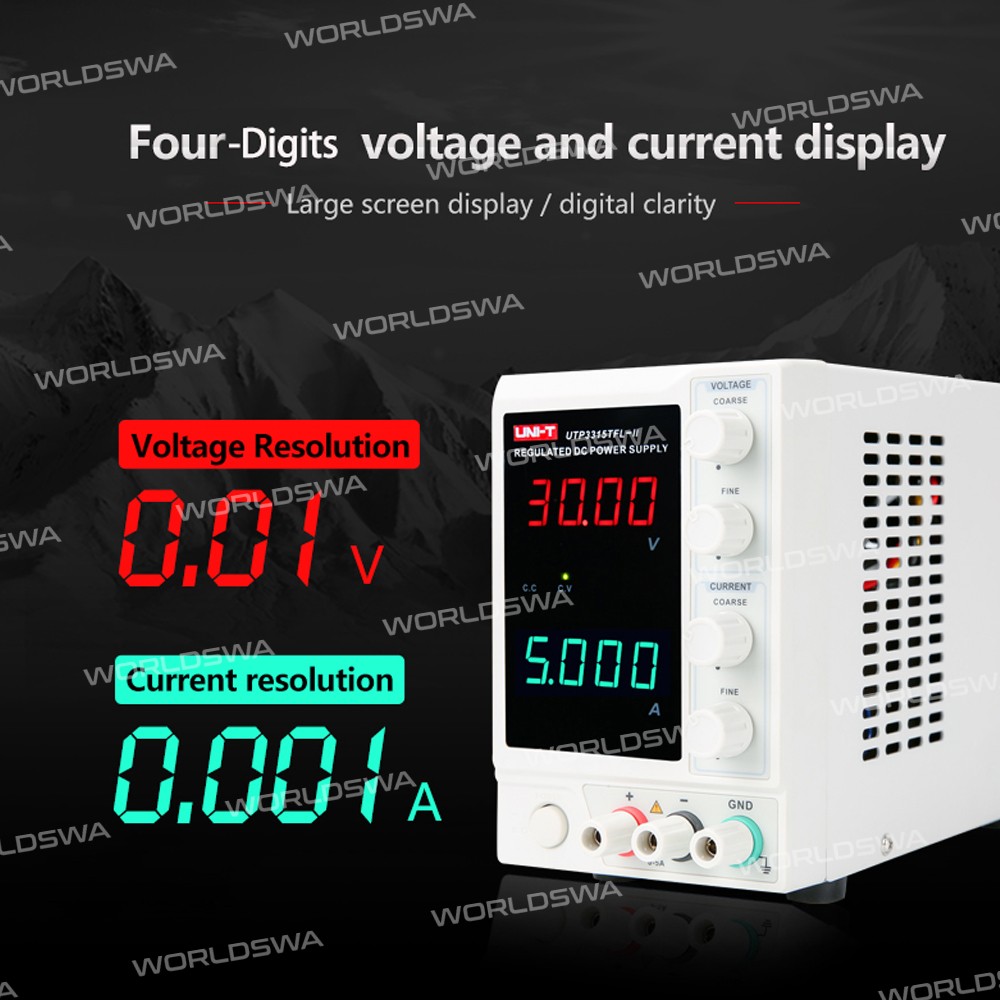

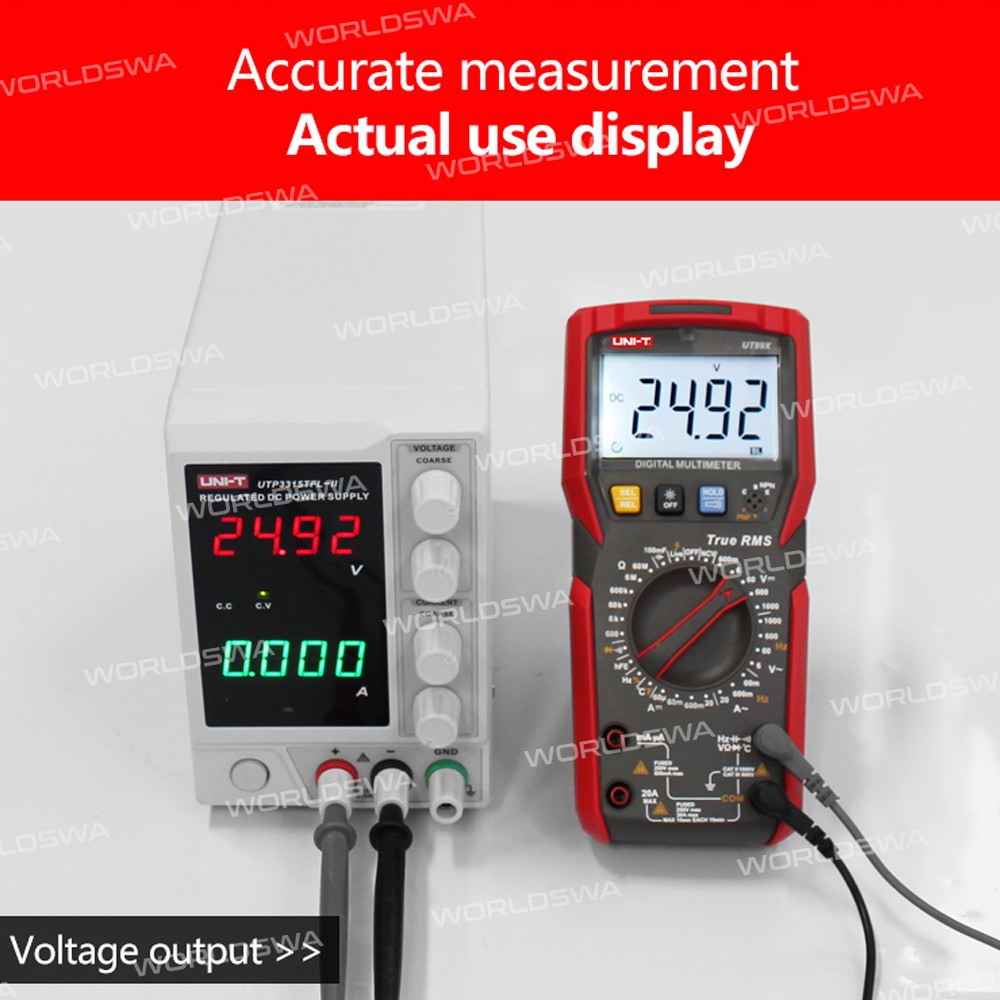

- Four-digits voltage and current display, large screen display, digital clarity

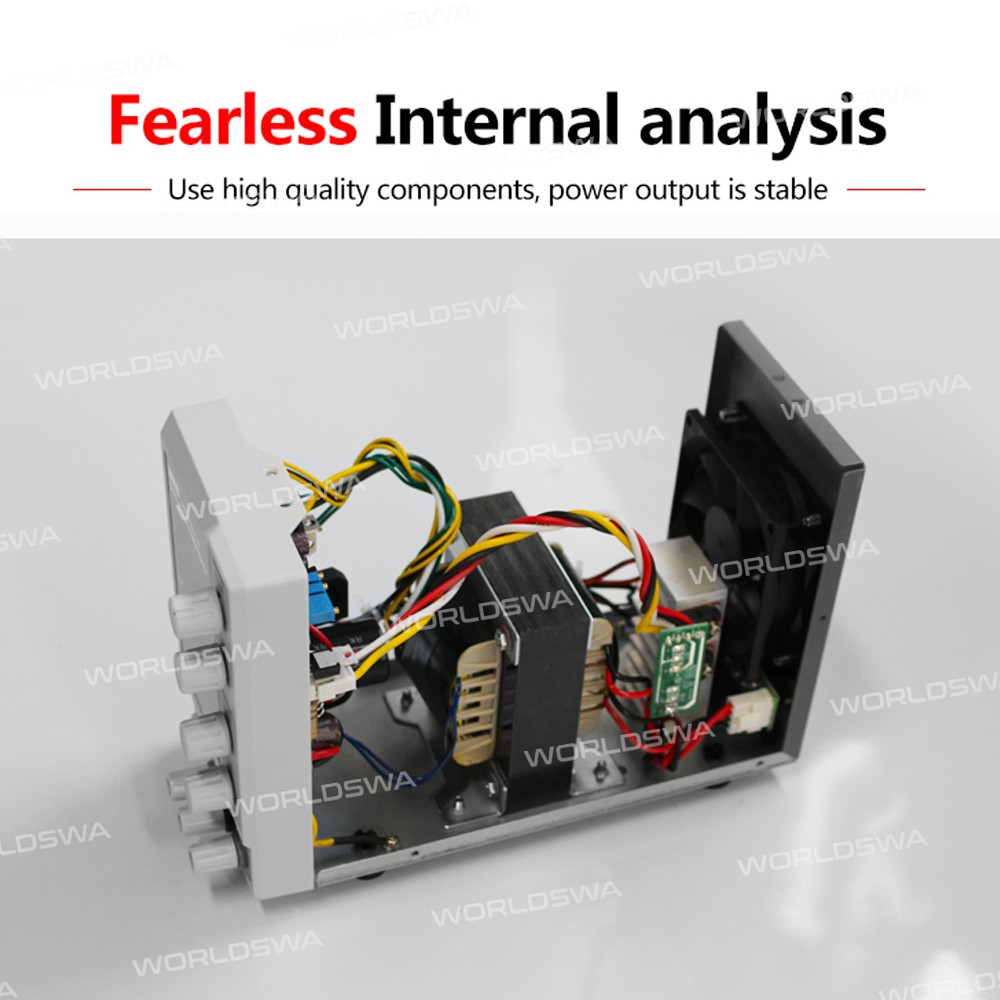

- Fearless Internal analysis, use of high-quality components, power output is stable

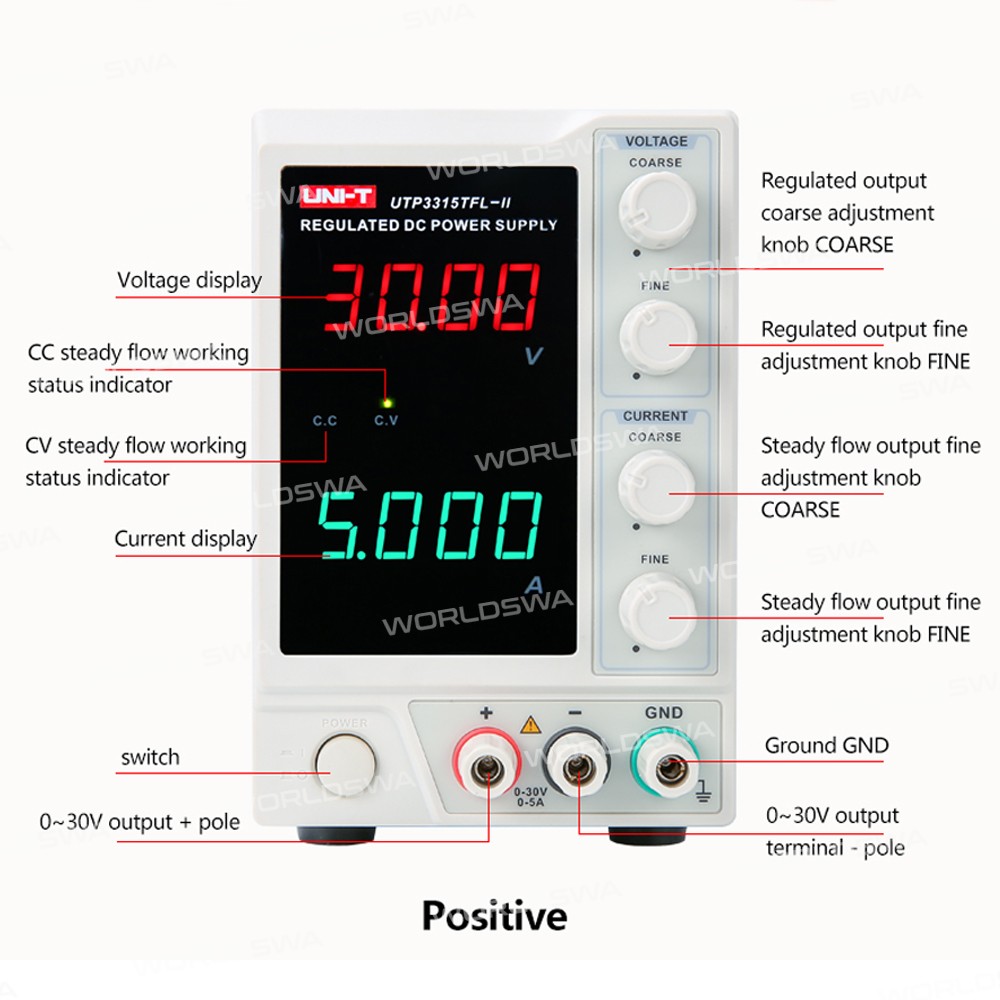

- Output voltage when no load, set the range of 2~5V, counterclockwise adjustment, current knob 8-coarse and 9-fine to "0" bit
- Use a wire to put 0~30V output pole and-pole short circuit, at this time, the CC light is on, and adjusting the current knob makes the output current to a predetermined value
- Disconnect the shorted wire and adjust the voltage up to 30V, the connection load can work
Specification:

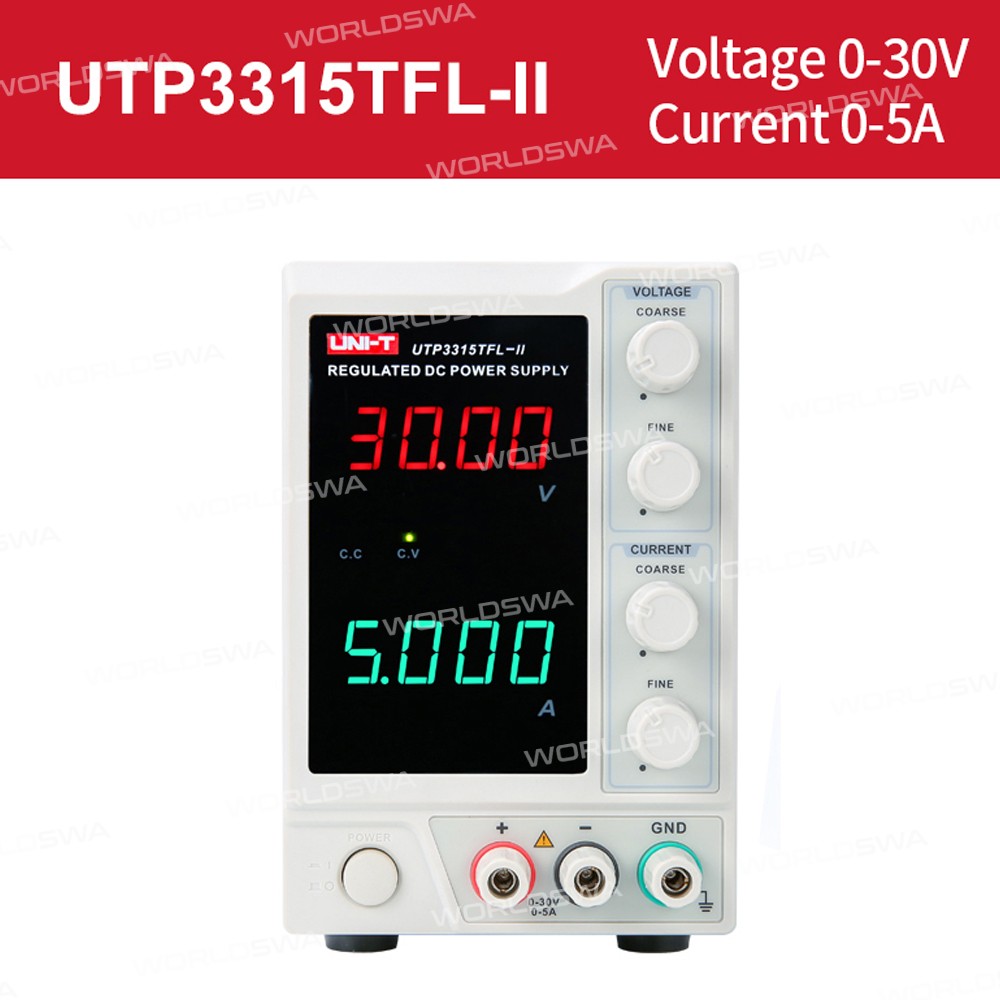

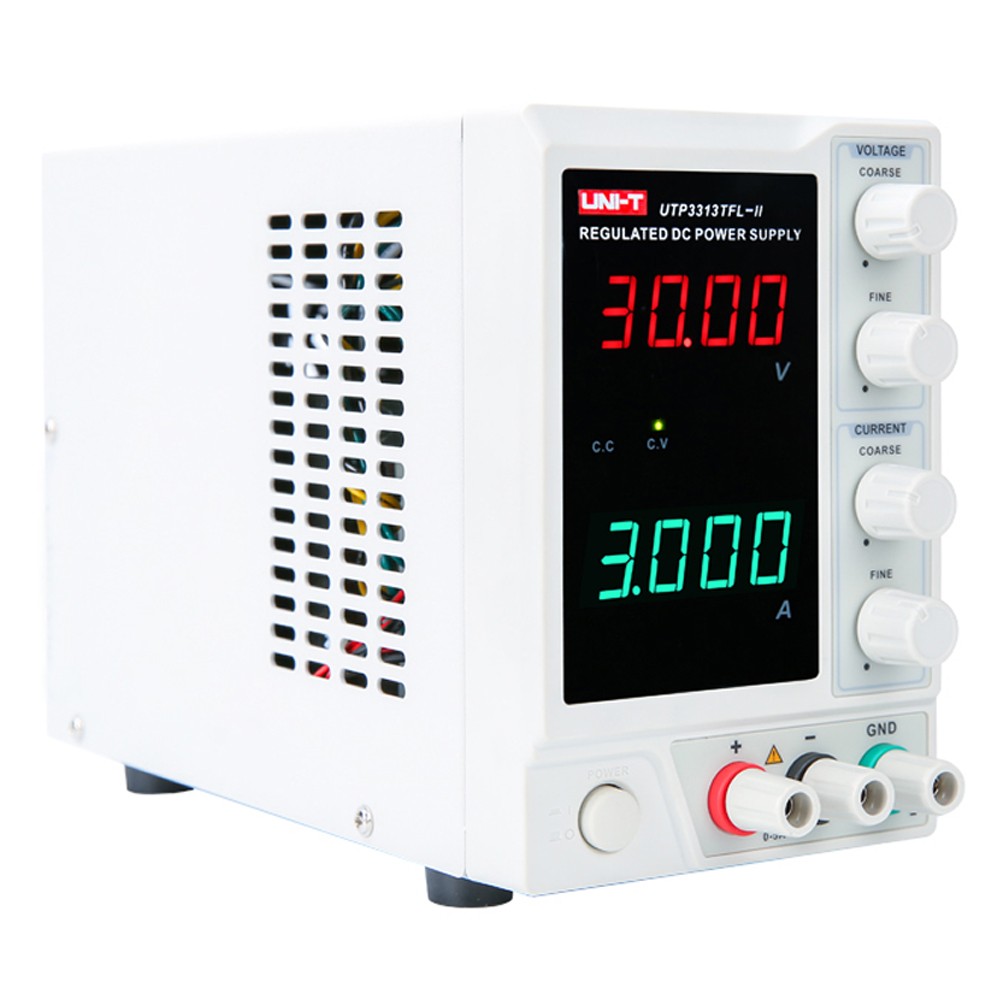

Model | UTP3313TFL-II | UTP3315TFL-II | |
Output voltage | 0~30V | 0~30V | |
Output current | 0~3A | 0~5A | |
Output power | 90W | 150W | |
Load regulation | CV≤0.01%+3mV, CC≤0.1%+5mA | CV≤0.01%+5mV, CC≤0.1%+10mA | |
Accuracy (25℃±5℃) | Voltage | ＜0.5%+20mV | ＜0.5%+20mV |
Current | ＜0.5%+5mA | ＜0.5%+10mA | |
Ripple and noise | ≤1mVrms | ≤2mVrms | |
Output regulation resolution | CV: 10mV (typical), CC: 1mA (typical) | ||
Reliability | MTBF(e): ≥2000hrs | ||
Display mode | LED voltage and current dual display | ||
Feature | Auto conversion of constant voltage and current with current limit protection | ||
General Characteristics | |||

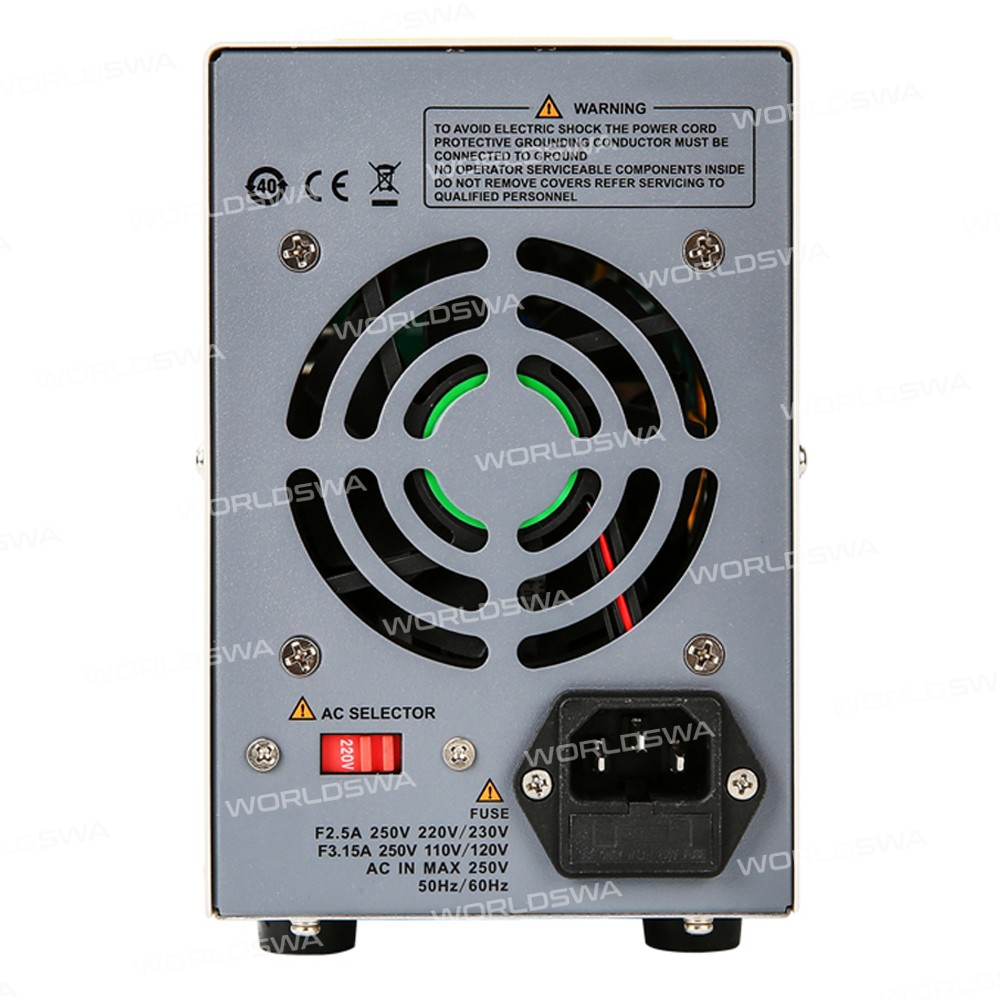

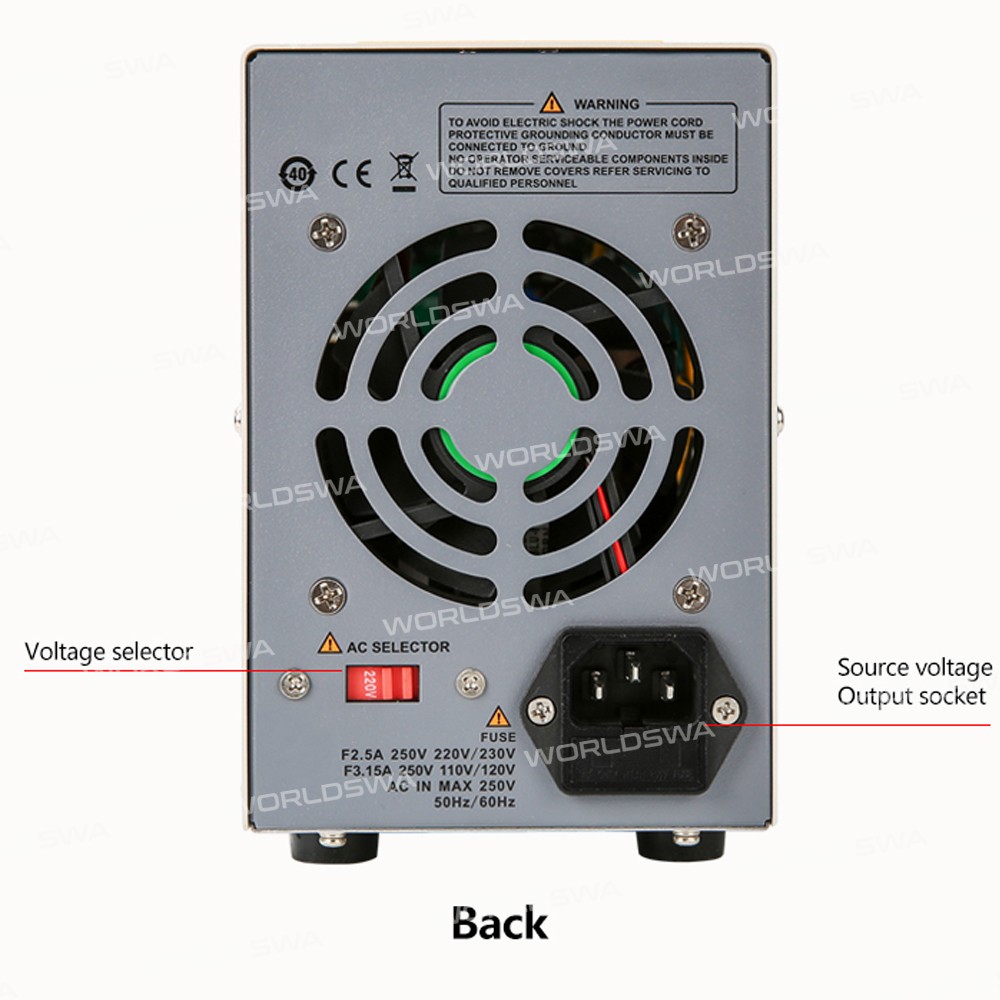

Power | Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz | ||
Product color | White and grey | ||
Product net weight | 3kg (UTP3313TFL-II); 4kg (UTP3315TFL-II) | ||
Product size | 105mm x 165mm x 249mm | ||
Standard accessories | Power cord, output cables | ||
Package includes:
- 1 x Power Supply
- 1 x Power Cable
