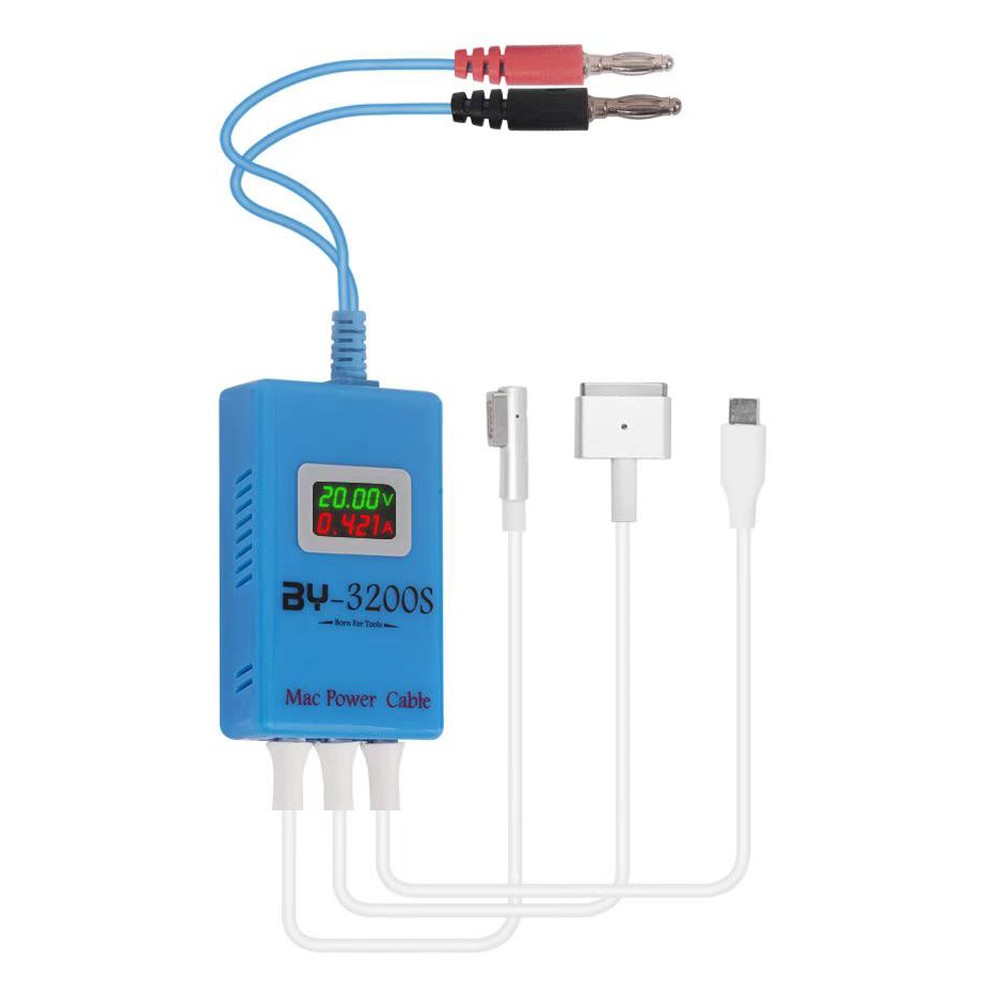

BY-3200S Boot Cable Tool Kit - Upgrade Version for MacBook Board Repair

Upgrade Version BY-3200S Boot Cable Tool Kit for Macbook Board Repair

Function Introduction:

• BY-3200S is a MacBook logic board boot power cable, used for the 2008-2022 MacBook
• BY-3200S further improves and adds practical functions on the basis of BY-3200
• The digital display increases the current of the motherboard in a working state (When the output terminal is connected to a Type-C line, T line, or L line, the display tube will display the working voltage and current of the motherboard)
• A Type-C interface is added to the input port, and the input port can be directly input by an 87W-140W Type_C charger, and instead of a 220V DC power supply (Convenient for maintenance personnel to carry and operate)
• The output port adds a Type_C interface, and the output port can be connected to the Type_C output line, and the application range is wider and more convenient
• The LCD ON/OFF switch is used to control the LCD digital tube display and power input (when the switch is pressed once, the digital tube is turned off or on; when the switch is often pressed for 3S-5S, the power input is turned off, and when it is necessary to turn on the power input again, You need to press the switch 3S-5S)
• The LCD digital tube is off by default. When the output port is connected to the main board, BY-3200S will automatically sense and turn on the digital tube display
• Support all series of MacBook logic boards without batteries connected, and the single board boots into the system (solve the problem that the BATLOW# signal is low without the battery, resulting in the problem of not booting)
• Includes three output power cables
• L-connector for 2008-2011 MacBooks, including 11", 13.3", 15.4", and 17" MacBook Air and MacBook Pro.
• T-connector for 2012-2015 MacBooks, including 11", 13.3", and 15.4" MacBook Air and MacBook Pro
• TYPE_C connector is suitable for 12", 13.3", 15.4" and 16" MacBook, MacBook Air, and MacBook Pro in 2015-2022 (and supports fast charging of tablets and mobile phones with Type-C interface, check the current through the power meter to determine the fault)

Introduction to Power:

• Input DC power input power cable, support 20A current
• The power cord input port of BY-3200S is directly plugged into the DC power supply (the setting voltage of the DC power supply is kept between 20V and 21V).
• When charging the mobile phone or tablet, the output voltage of the DC power supply can also be kept at 20V (BY-3200S will adjust to the corresponding voltage through the CC line inside).
• The output voltage of the DC power supply is set to 20V-21V, which can be used for 2008-2022 MacBook charging and single-board booting.
• Type-C connect input, Support 87W-140W USBC charger input

Output power, Voltage, and Current supported by BY-3200S:

• Summary:** Supports multiple output power, voltage, and current configurations, including 96W, 87W, 61W, and 30W chargers with Type-C port, and 45W, 60W, and 85W chargers with L-connector and T-connector.
• 96W charger with Type-C port, output voltage and current: 20.5V/4.7A, 15V/3A, 9V/3A, 5.2V/3A
• 87W charger with TYPE_C port, output voltage and current: 20.2V/4.3A, 9V/3A, 5.2V/2.4V
• 61W charger with TYPE_C port, output voltage and current: 20.3V/3A, 9V/3A, 5.2V/2.4V
• 30W charger with TYPE_C port, output voltage and current: 20V/1.5V, 15V/2A, 9V/3A, 5V/3A
• L-connector 45W charger, output voltage and current: 14.5V/.1A
• L-connector 60W charger, output voltage and current: 16.5V/3.65A
• L-connector 85W charger, output voltage and current: 18.5V/4.6A
• T-connector 45W charger, output voltage and current: 14.85V/3.05A
• T-connector 60W charger, output voltage and current: 16.5V/3.65A
• T-connector 85W charger, output voltage and current: 20V/4.25A

Package includes:

• 1 x Boot Cable Tool Kit
