Wanptek APS3010H 30V 10A 4-Digit LED Programmable Regulated DC Power Supply w / Memory Function
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.2% |
| 5 | NaN | -4.8% |
| 10 | NaN | -7.2% |
Extra adapter
Choose a Extra adapter
AUEUUKUS
Product details
Description

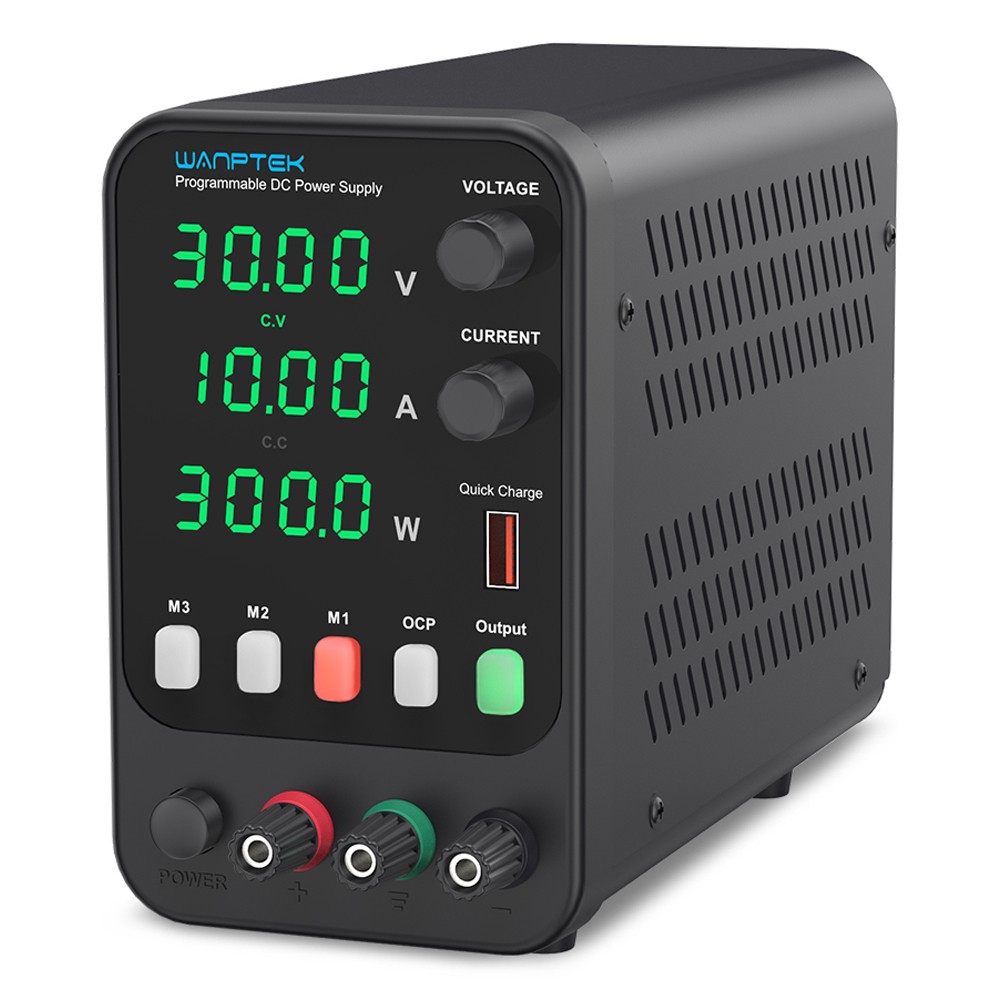

Wanptek APS3010H 30V/10A 4-Digits LED Programmable Regulated DC Power Supply with Memory Function
Product Overview
This advanced DC power supply features a compact design, high power density, and programmable output voltage and current. It also comes with a memory function, allowing you to store and recall your settings.

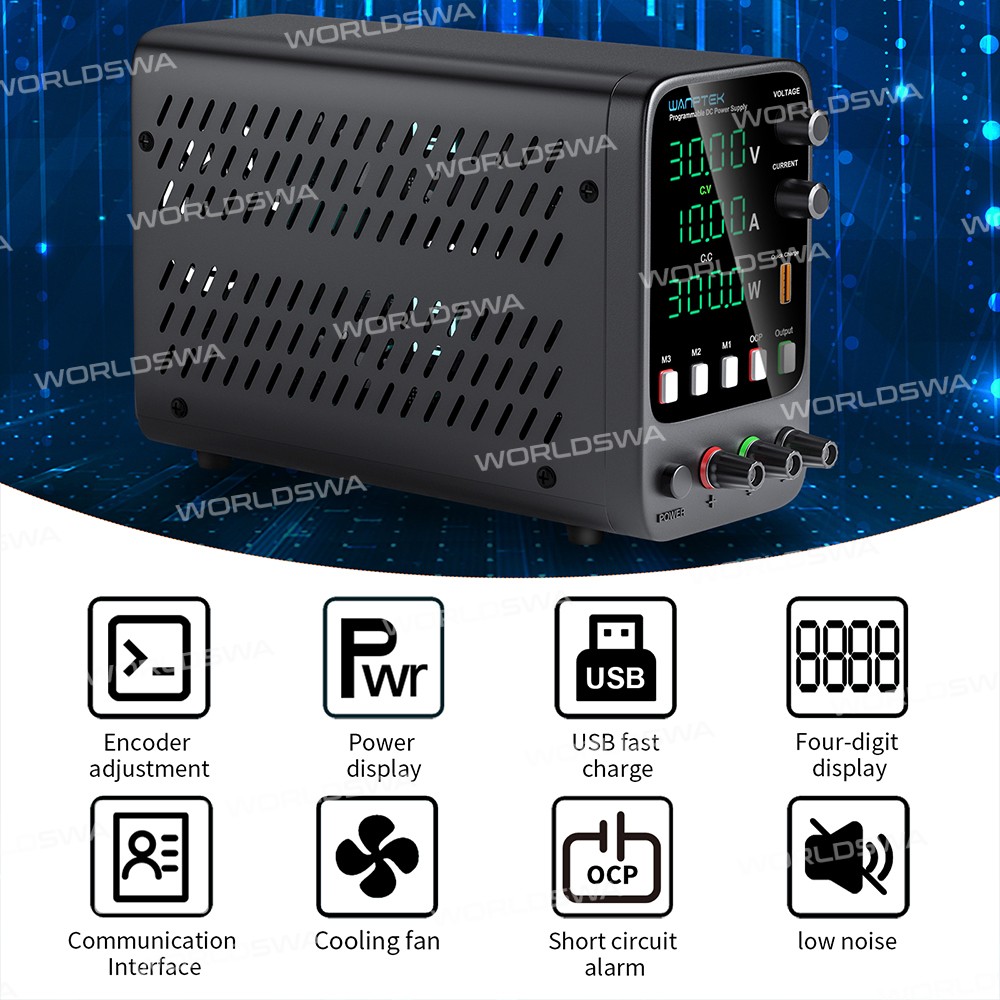

Key Features:

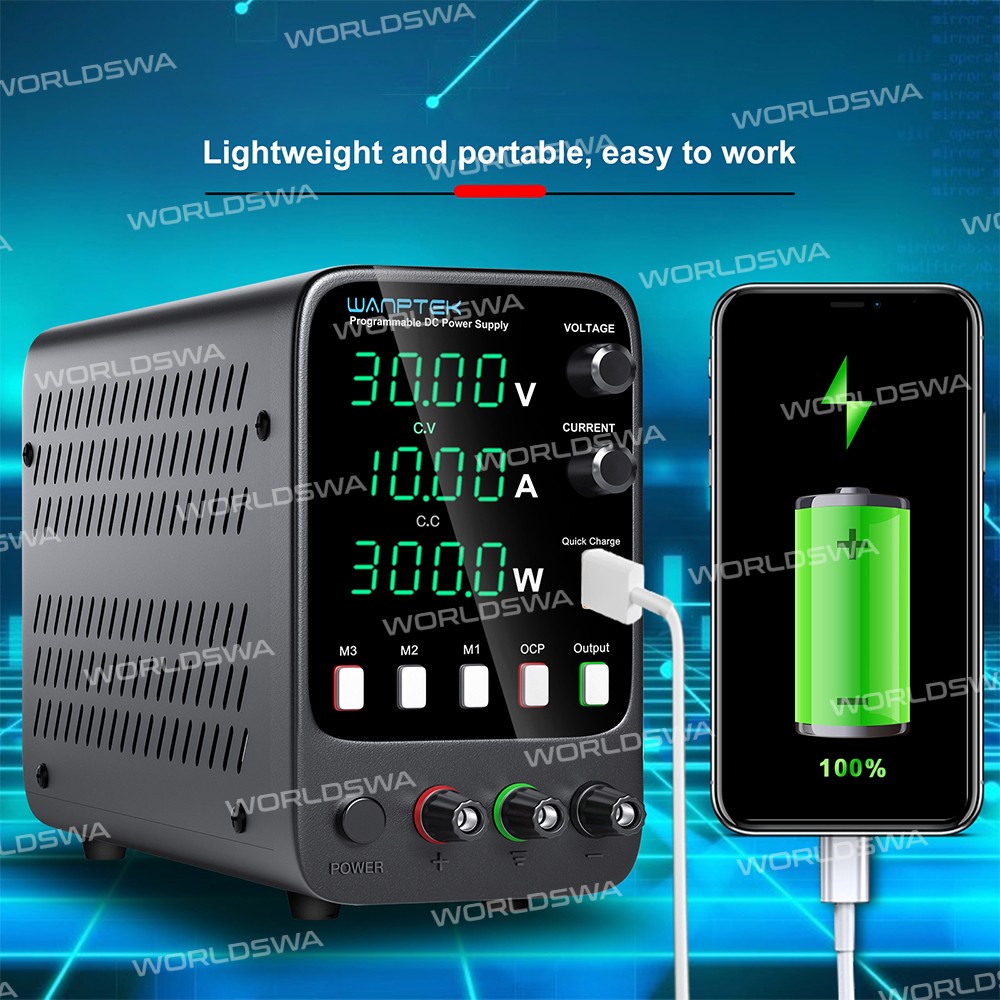

- Compact and Lightweight**: Small size, lightweight, and high power density
- Constant Pressure and Current Switch**: Automatically switches between constant pressure and constant current modes

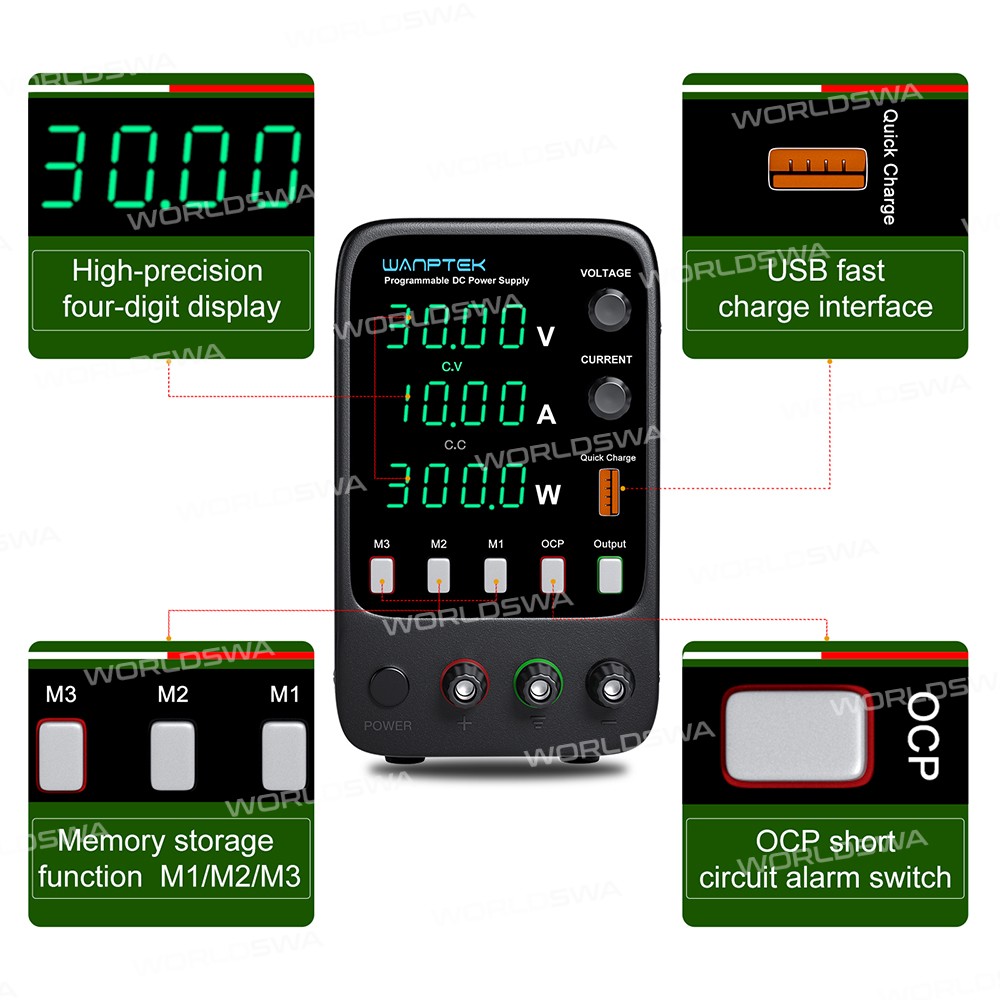

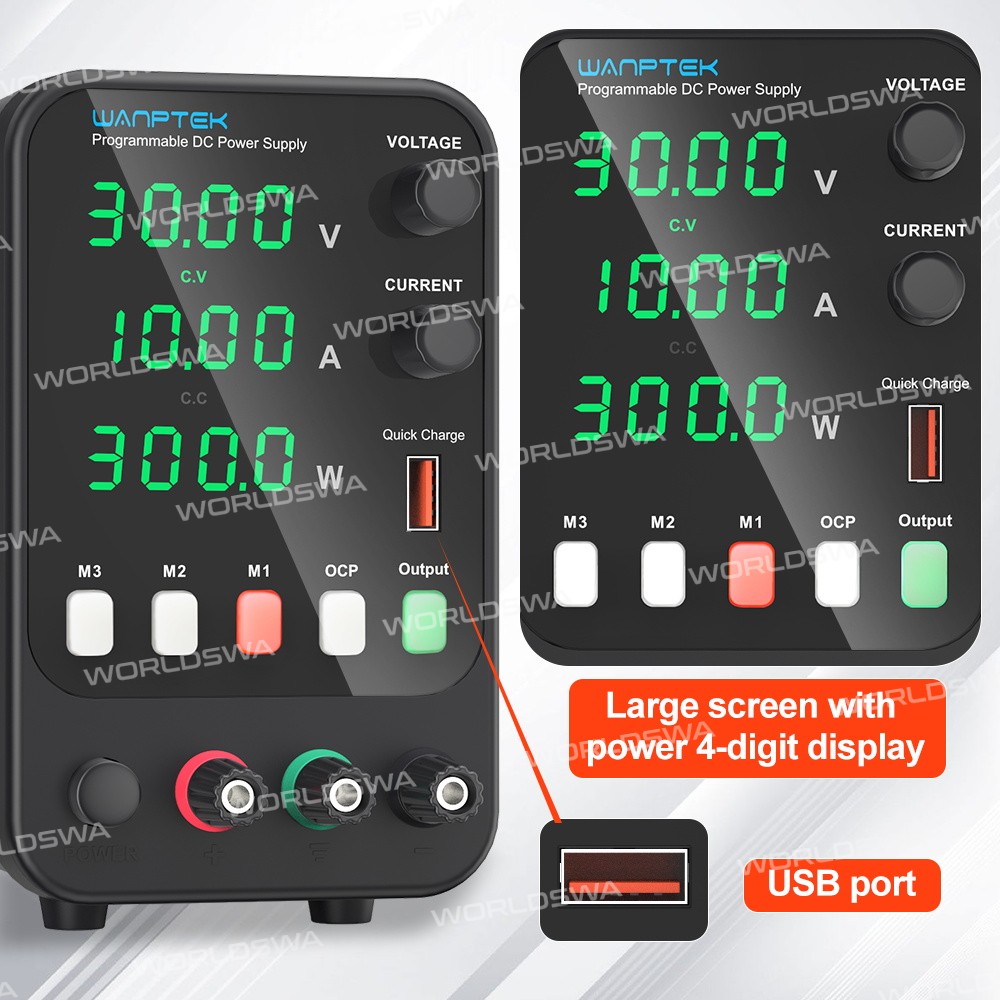

- LED Display**: 0.4" four-digit digital tube display with high precision and features of voltage stabilization, current limiting, and simple operation

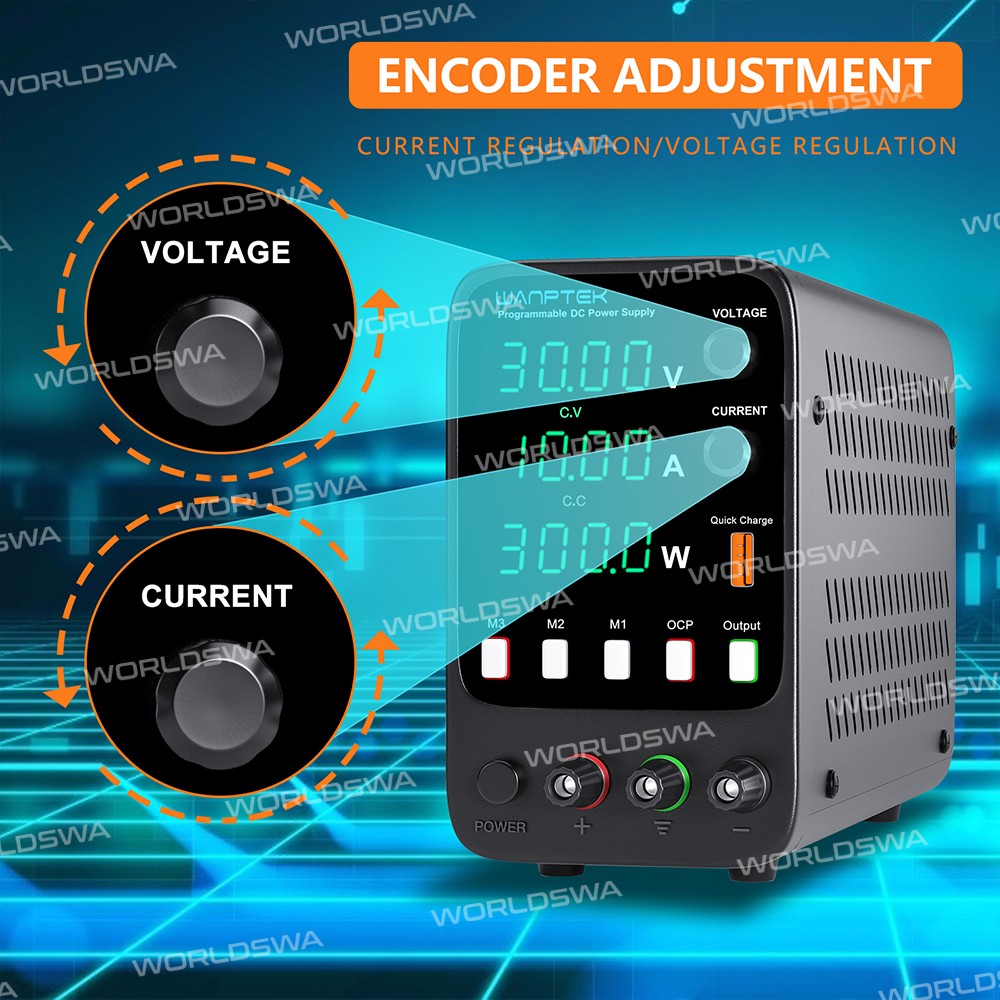

- Adjustable Output**: Output voltage and output current can be continuously adjusted between 0 and nominal value with fine-regulating and coarse regulating
- Protection Features**: OVP, OCP, over-temperature protection, and short-circuit alarm to stop output

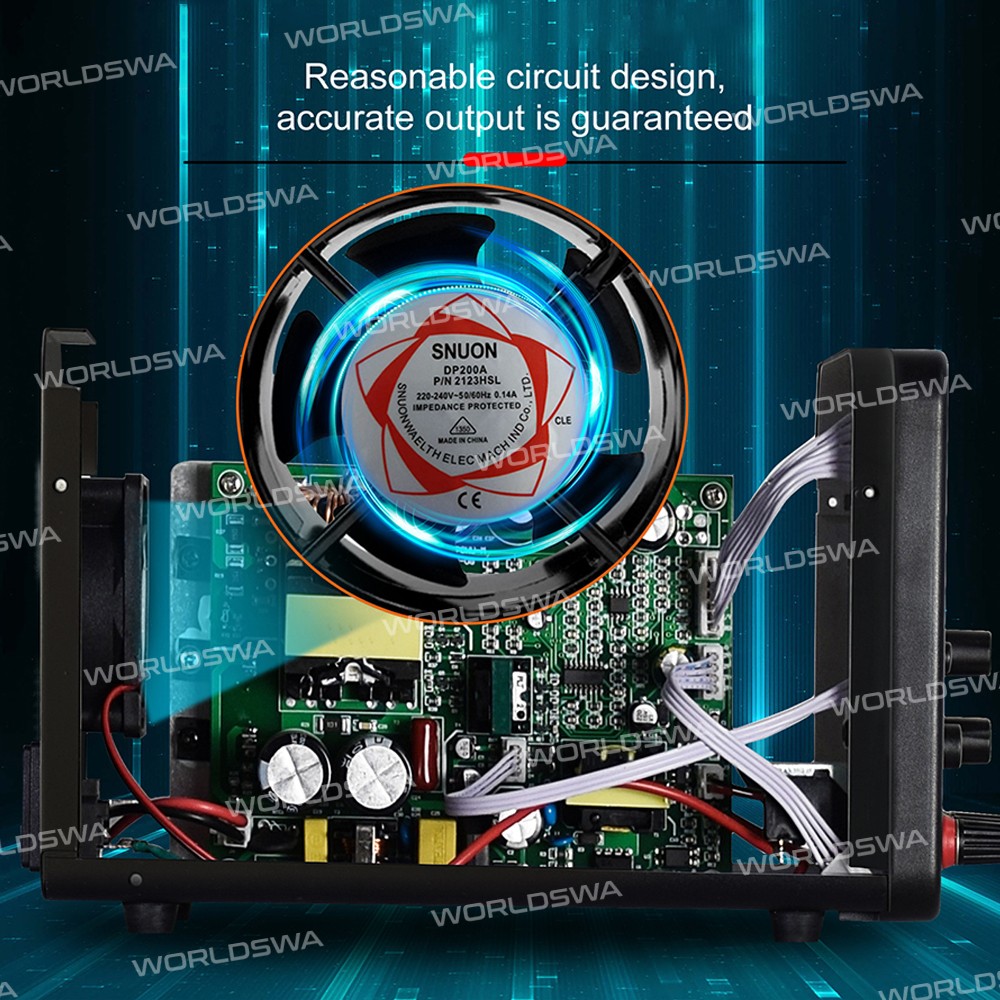

- Temperature-Controlled Fan Cooling**: Low noise, long life

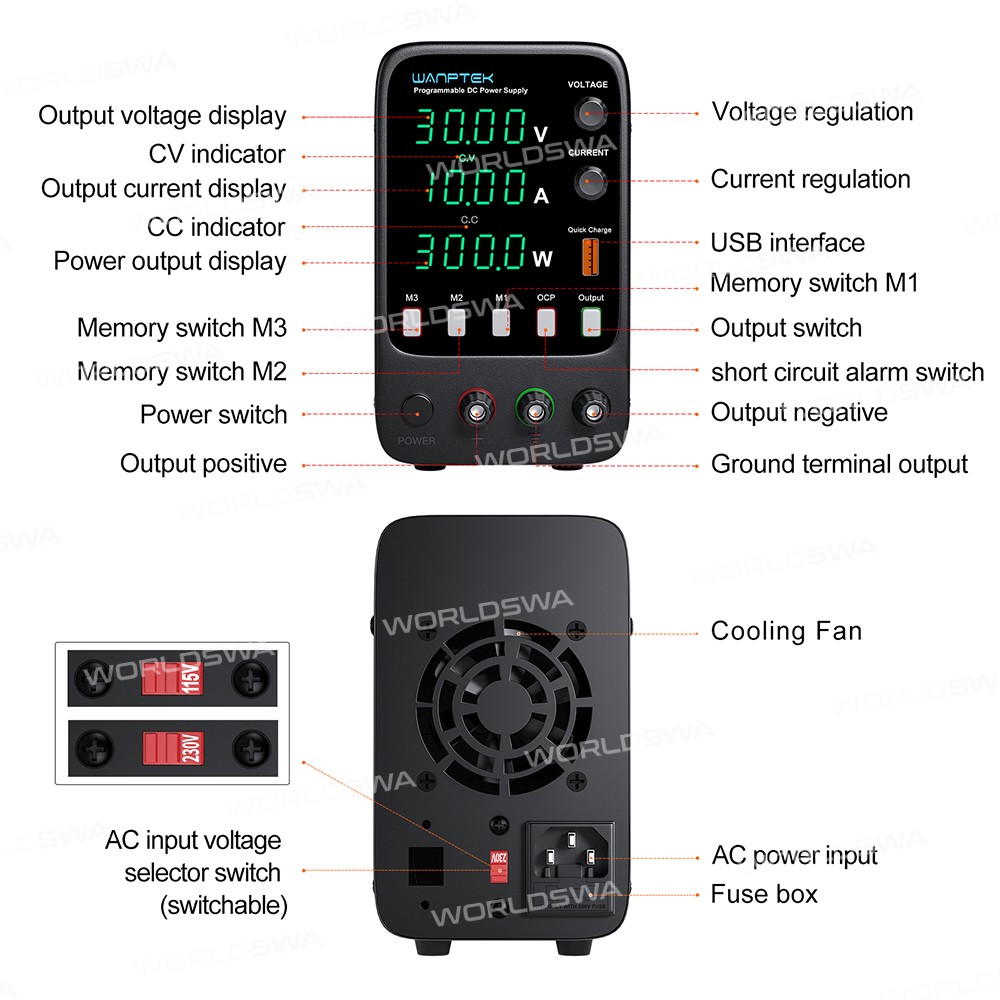

- Dual Voltage Input**: Convenient choice between 110V and 220V input

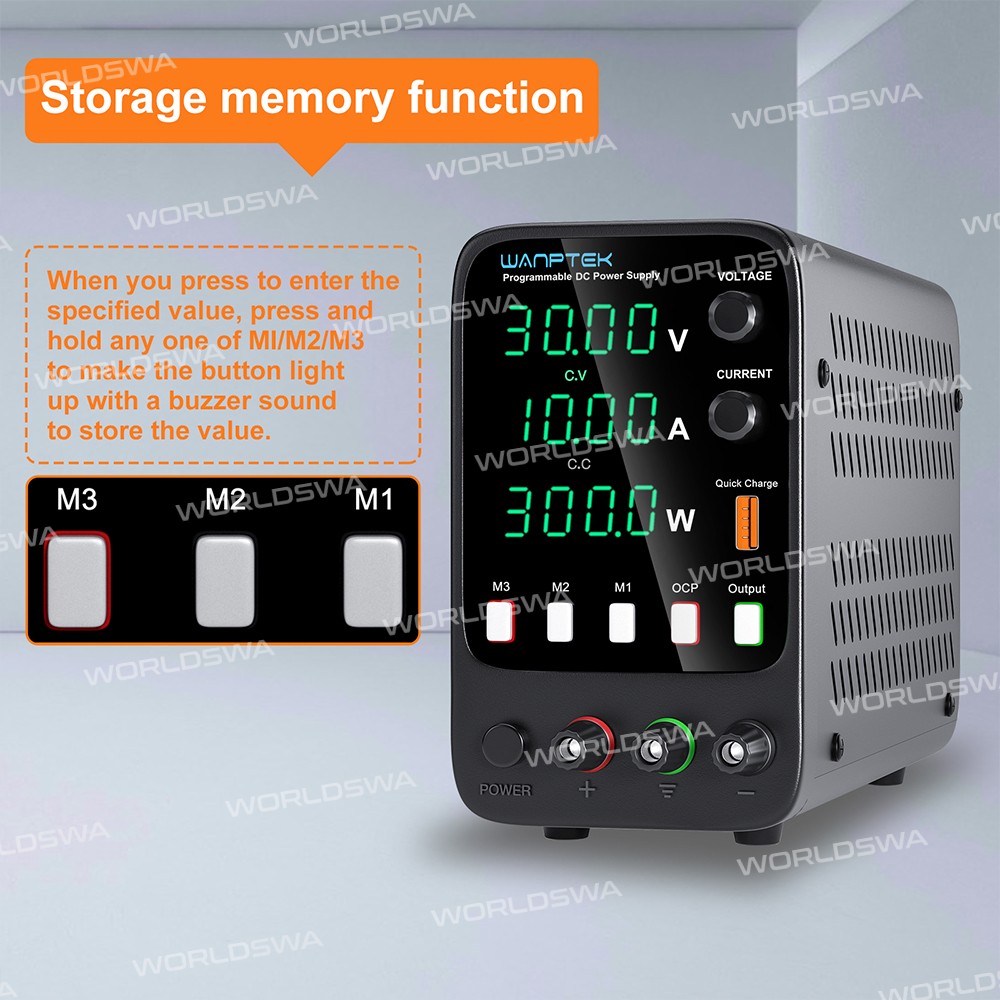

- Programmable**: With memory storage function for storing and recalling settings
**Summary:** This DC power supply offers a unique combination of compact design, high power density, and programmable output voltage and current, making it an ideal choice for a wide range of applications.
Specification:
- Product Model: APS3010H
- Output power: 150W
- Output voltage: 0~30V
- Output current: 0~10A

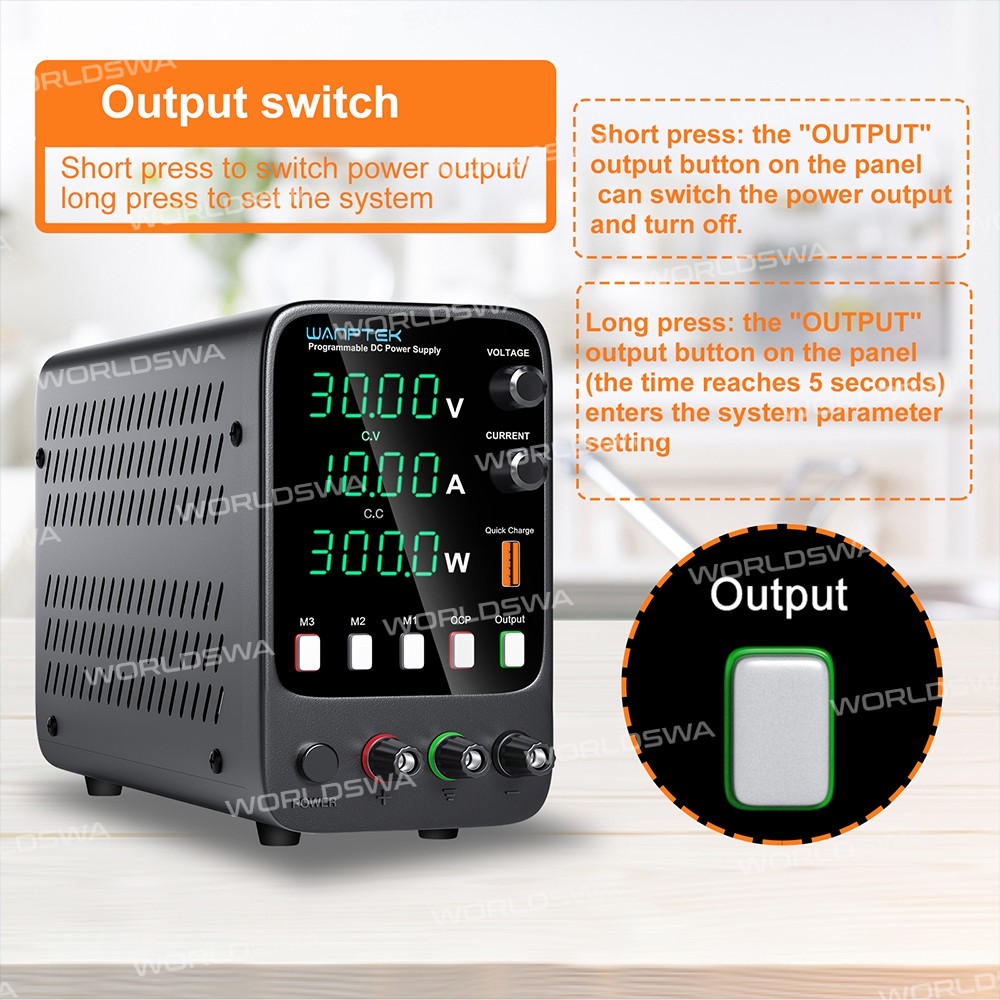

- Auxiliary functions: USB fast charging, OUT output on/off, USB upper computer communication (optional) data storage
- Protection: OVP over-voltage protection, OCP over-current protection, over-temperature protection, short-circuit alarm to stop output
- Input power: AC230V/115V±10%; 50Hz/60Hz
- Operating temperature: 0℃~40℃; relative humidity: <80%RH
- Storage temperature: -10℃~70℃; Relative humidity: <70%RH
- Voltage stabilization state CV.
- Voltage Stability: 0.5%±3mV
- Load stability: 0.5%±3mV
- Ripple voltage: ≤0.5%Vpp
- Current Stability CC.
- Current Stability: 0.5%±3mA
- Load stability: 0.5%±3mA
- Ripple current: ≤0.5%Vp-p
- Recovery time: ≤500μS
- Temperature coefficient: ≤100ppm/°C
- Display: 0.4" four-digit digital tube
- Display accuracy: 0.5% ± 5 words
- Display resolution: voltage 0.01V, current 0.001A

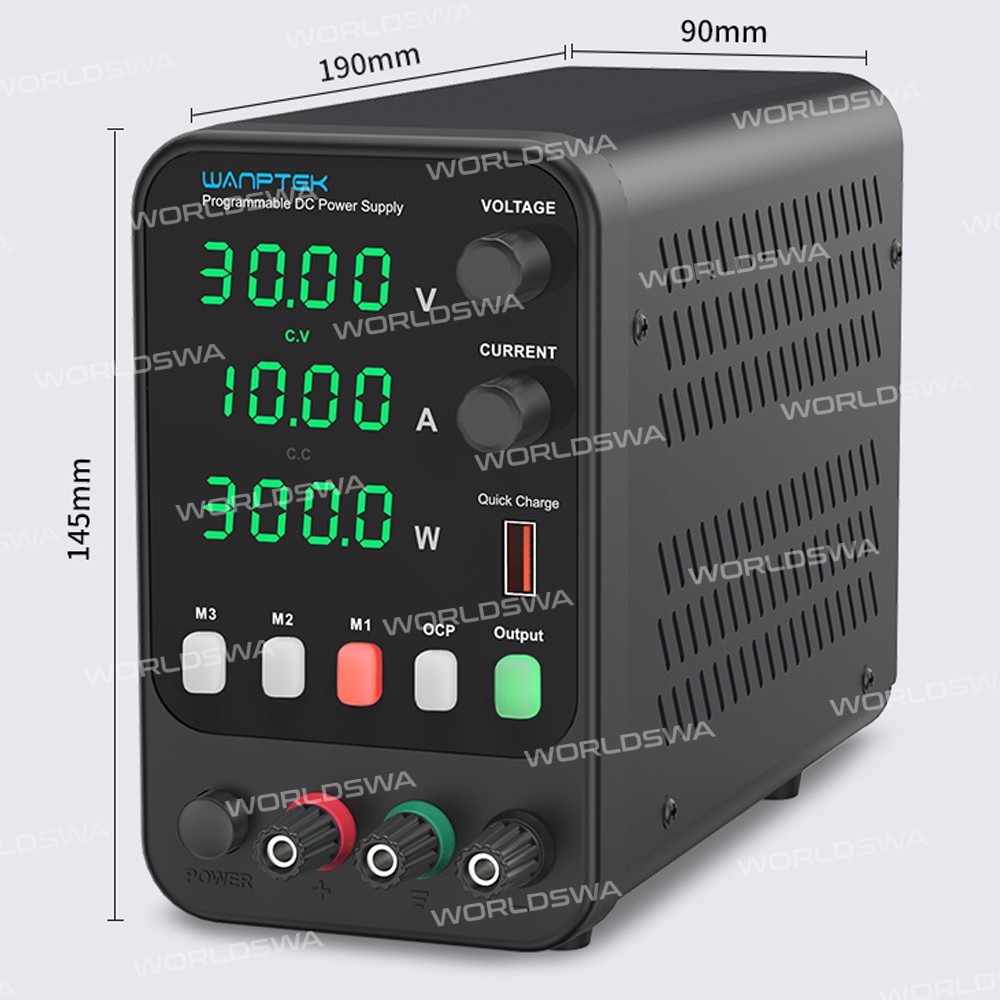

- Product size: 190*90*145mm
- Package size: 265*135*195mm
- Net weight: 1.15Kg

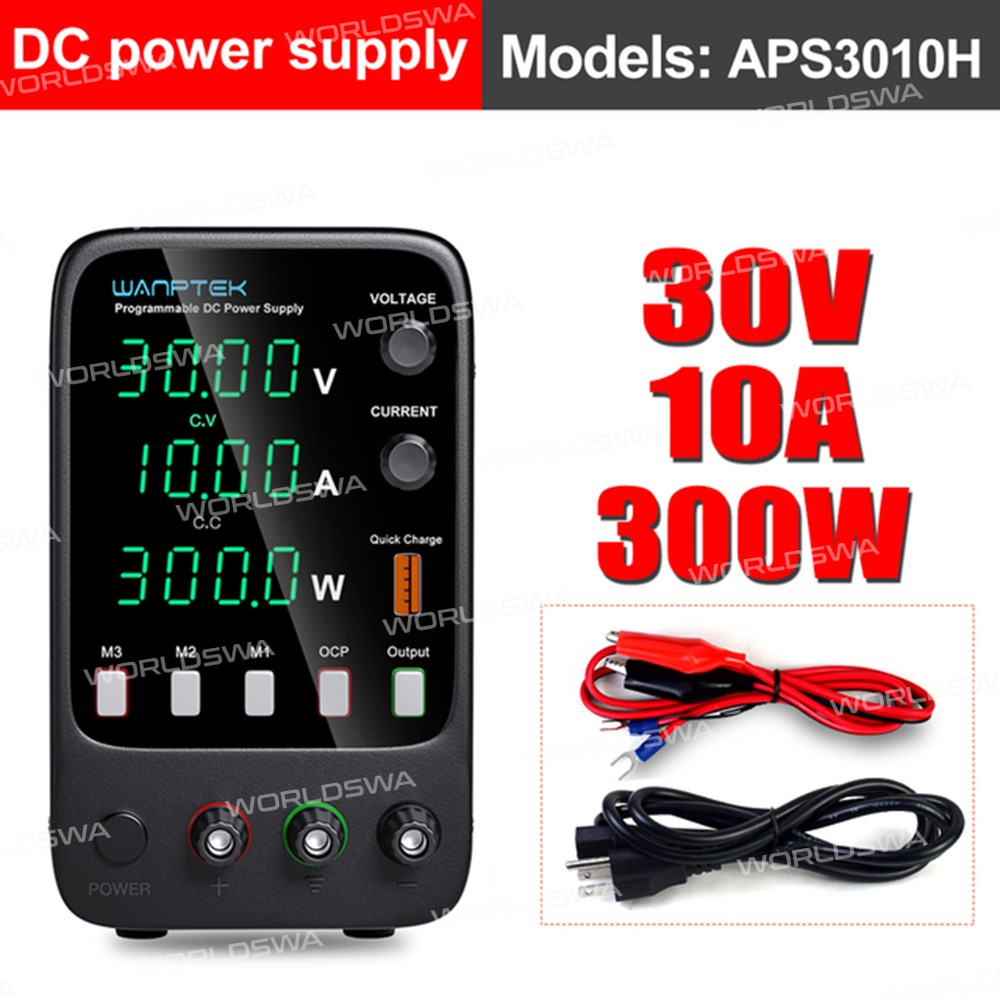

Package includes:
- 1 x Power Supply
- 1 x Power Cable
- 1 x Test Cable
