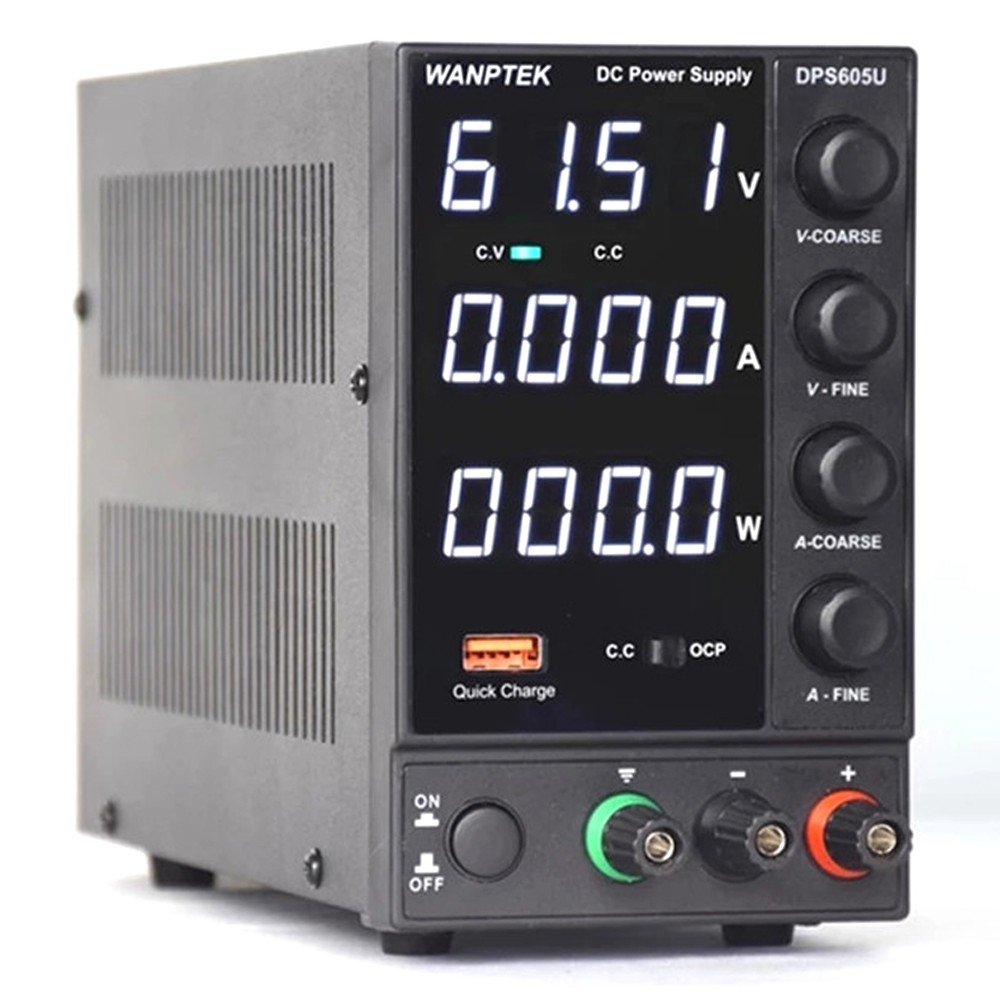

Wanptek DPS605U 60V 5A High Precision Adjustable Switching DC Power Supply with 4-Digits LED Display

Wanptek DPS605U 60V / 5A 4-Digits Display LED High Precision Adjustable Switching DC Power Supply

Features:

• The DPS series products are a three-window four-bit DC-regulated power supply, which can display voltage, current, and power at the same time.
• Power supply stability and ripple coefficient are very good, has two upgraded functions of USB fast charging and perfect short circuit protection
• Can be widely used in mobile phone/computer maintenance, school and production line use, etc.

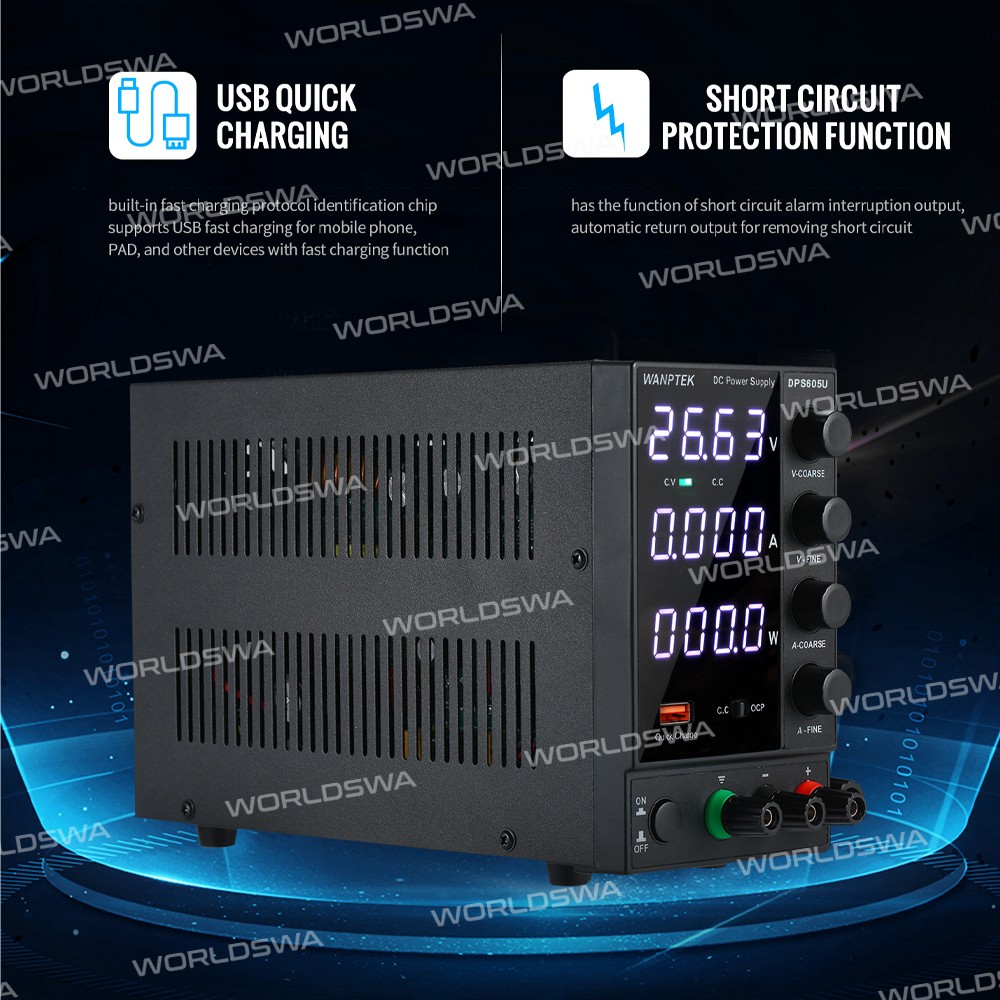

• USB Quick Charging: the machine has a built-in fast charging protocol identification chip that supports USB fast charging function
• Safety Operation: it has over-voltage protection(OVP), over-current protection(OCP), over-temperature protection, and the upgraded short circuit alarm function
• **Adjustable Output**: output voltage and output current can be continuously adjusted between 0 and nominal value with fine regulating and coarse regulating
• **Clearly Display**: LED 4 digits display of voltage, current, and power, features of voltage stabilization, current limiting, and simple operation
• **Wide Application**: can be used in mobile phone maintenance, computer maintenance, electrical maintenance, school laboratories scientific research and production line use, and all other needs DC regulated power supply

Specification:

• Model: DPS605U
• Output Voltage: 0～60V
• Output Current: 0～5A
• Output Power: 300W
• Auxiliary Output: USB quick charging 18W, supports multiple quick charging protocols
• Input Voltage: AC230V ± 10%, 50Hz; AC115V ± 10%, 60Hz
• Working Temperature: 0~40℃; Humidity: <80%RH
• Storage Temperature: -10~70℃; Humidity: <70%RH

Performance:

• Voltage Stability: ≤0.1% ± 3mV
• Load Stability: ≤0.1% ± 3mV
• Ripple Noise: ≤20mVrms (effective value)
• Current Stability: ≤0.1% ± 3mA
• Load Stability: ≤0.2% ± 3mA
• Ripple Noise: ≤5mArms (effective value)

Protection and Display:

• Protection Mode: Current limiting protection/short circuit alarm stop output and self-recovery

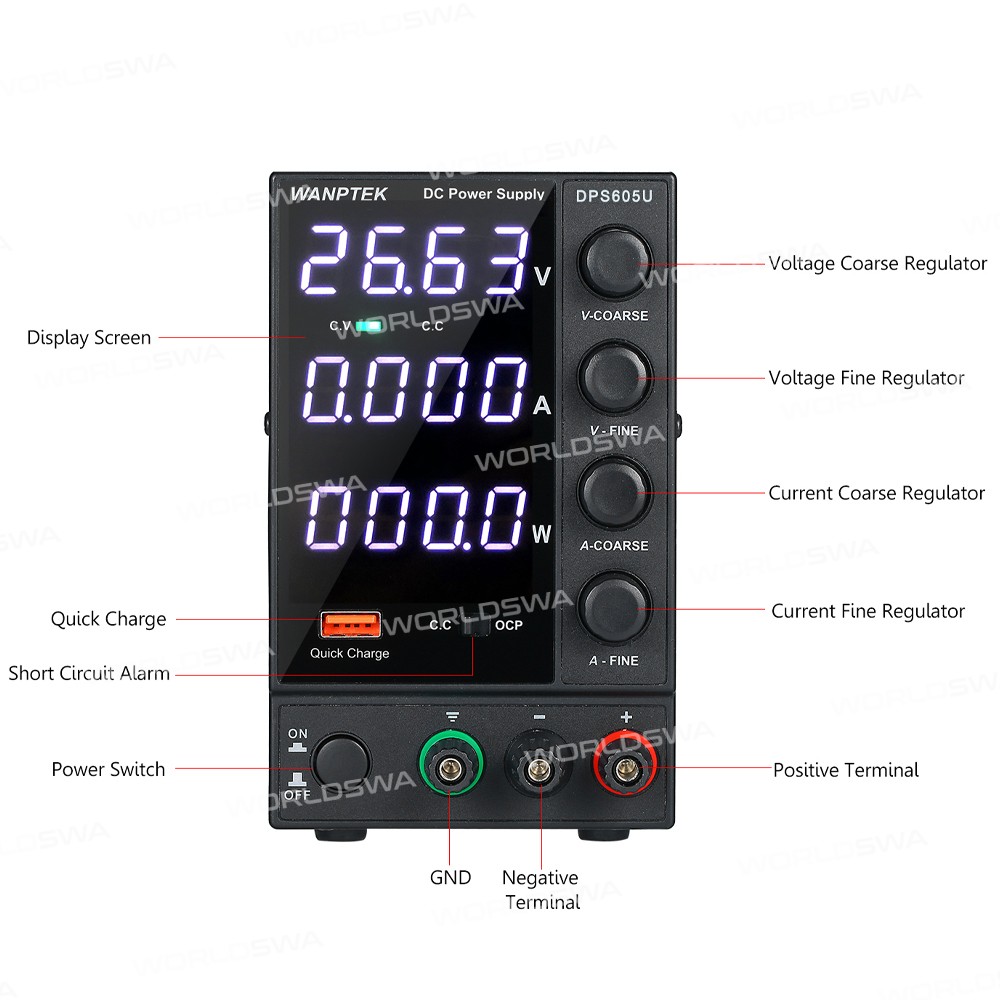

• Display: Four-digit digital tube, three-window display: voltage, current, power
• Display Accuracy: 0.5% ± 3 digits
• Display Resolution: voltage 00.01V; current 0.001A
• Fuse: 3A

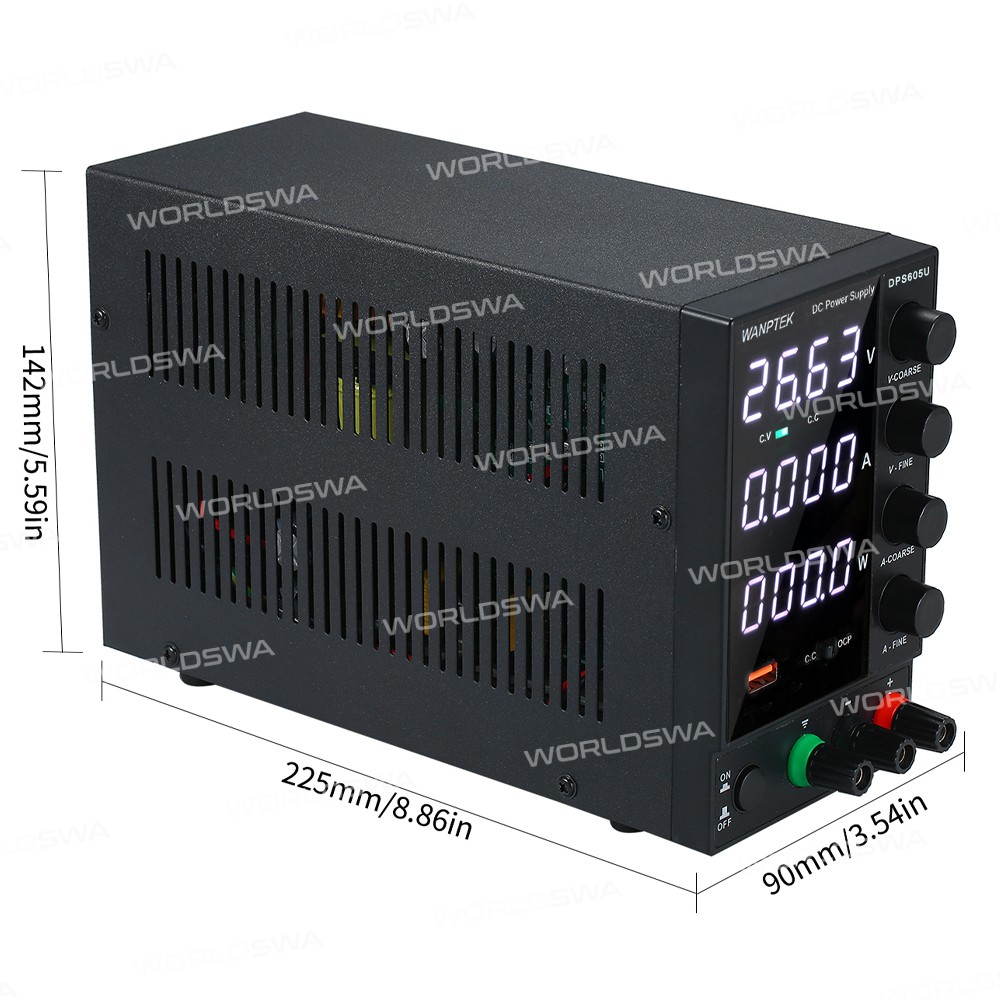

• Item Size: 246 * 90 * 152mm
• Item Weight: 1571g
• Package Size: 30 * 20 * 14cm

Package includes:

• 1 x Power Supply
• 1 x Power Cord
• 1 x Alligator Clip Line
