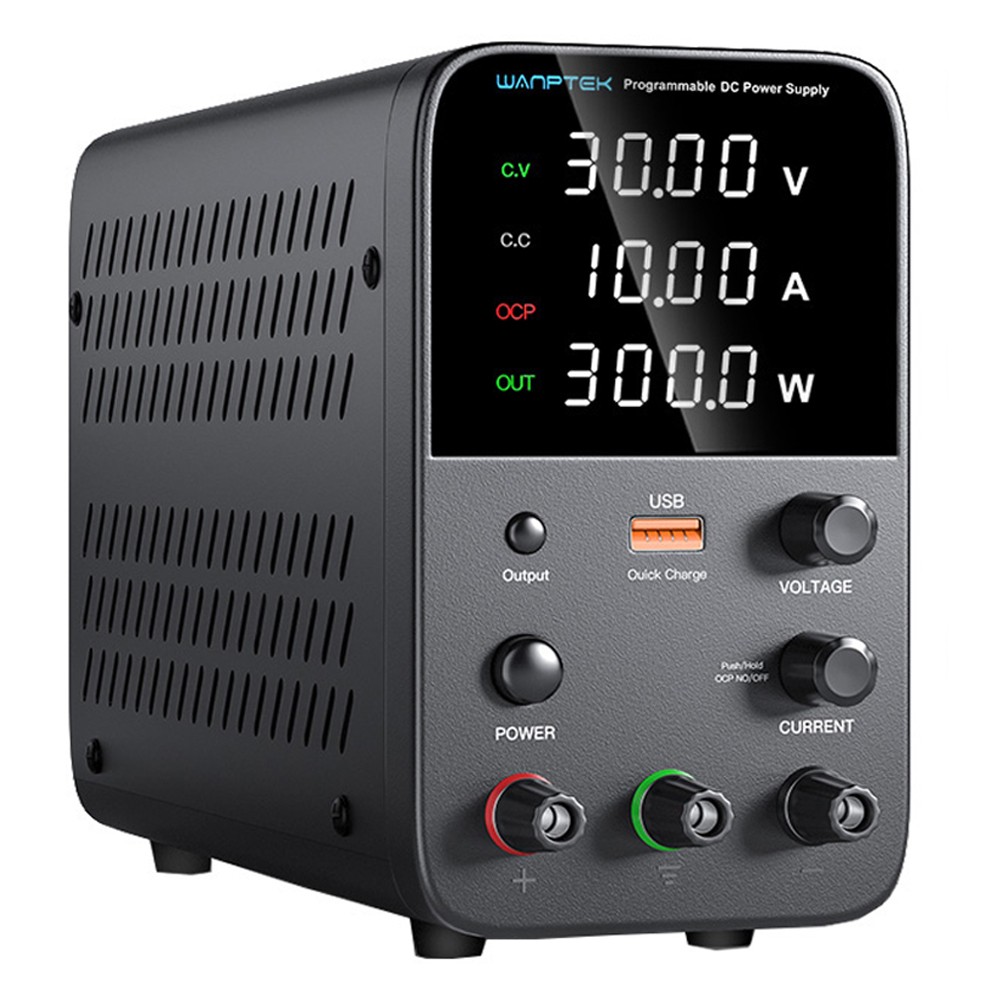

Wanptek WPS3010H 30V 10A 4-Digit LED Display High Precision Adjustable DC Power Supply Regulator
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.2% |
| 5 | NaN | -4.8% |
| 10 | NaN | -7.2% |
Extra adapter
Choose a Extra adapter
AUEUUKUS
Product details
Description
Wanptek WPS3010H 30V/10A 4-Digits Display LED High Precision Adjustable Regulator DC Power Supply
Features:
- High Precision and Compact Design: Small size, lightweight, and high power density
- Constant pressure and constant current switch automatically

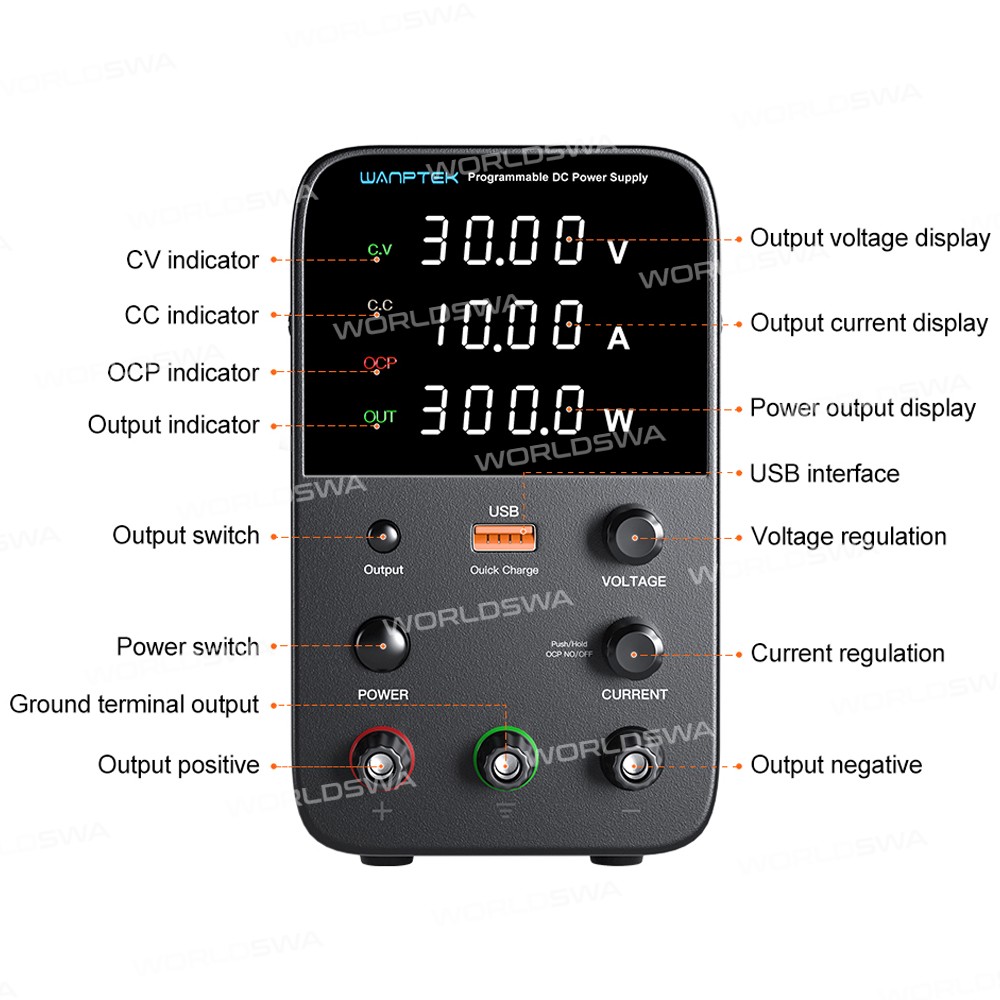

- LED Display with Advanced Features: LED display of voltage, current, and power, high precision and features of voltage stabilization, current limiting, and simple operation
- Adjustable Output Voltage & Current: output voltage and output current can be continuously Adjusted between 0 and nominal value with fine regulating and coarse regulating

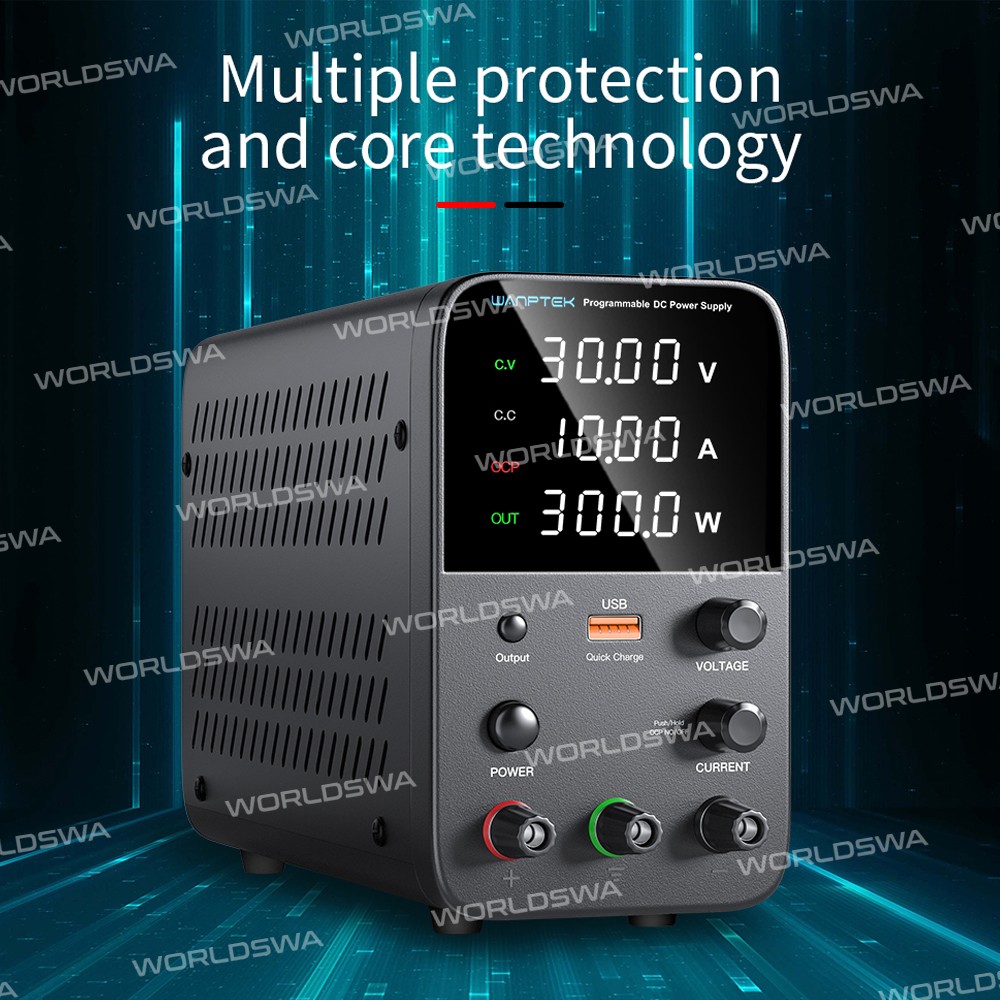

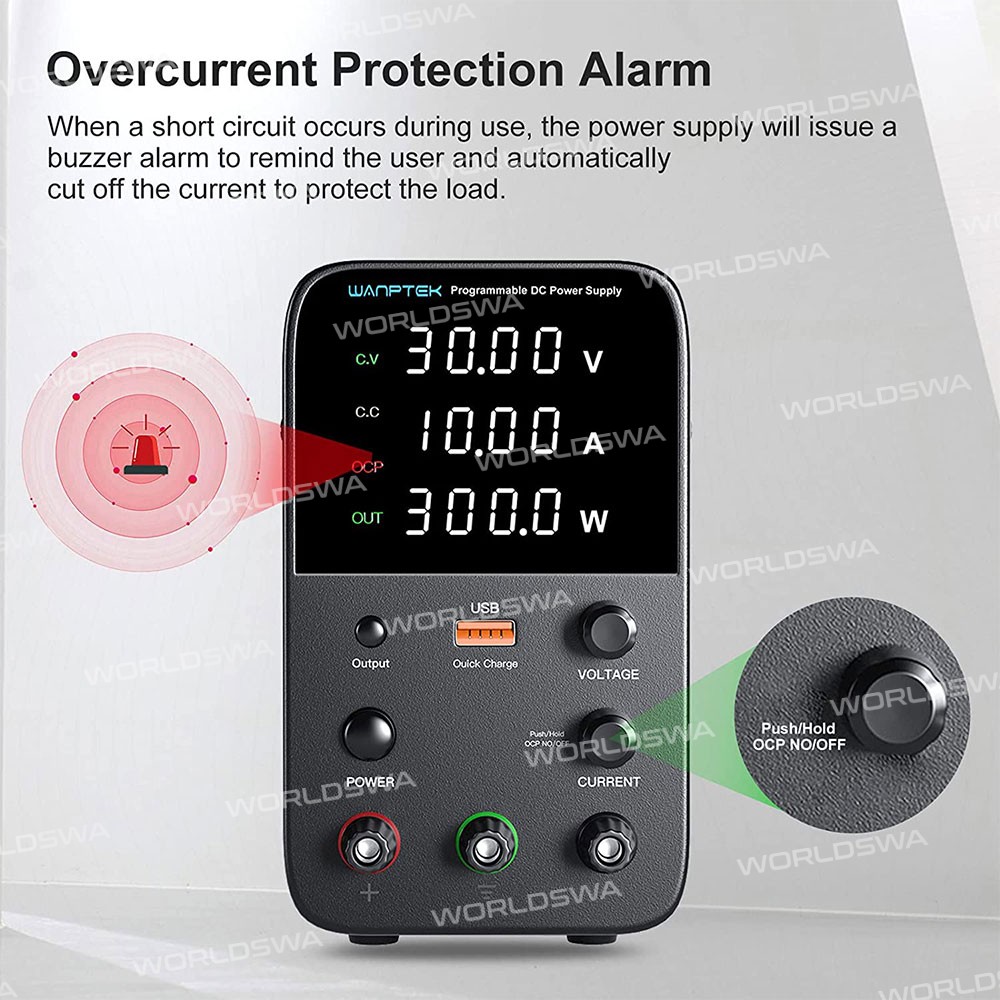

- It has over-voltage protection(OVP), over current protection(OCP), over temperature protection

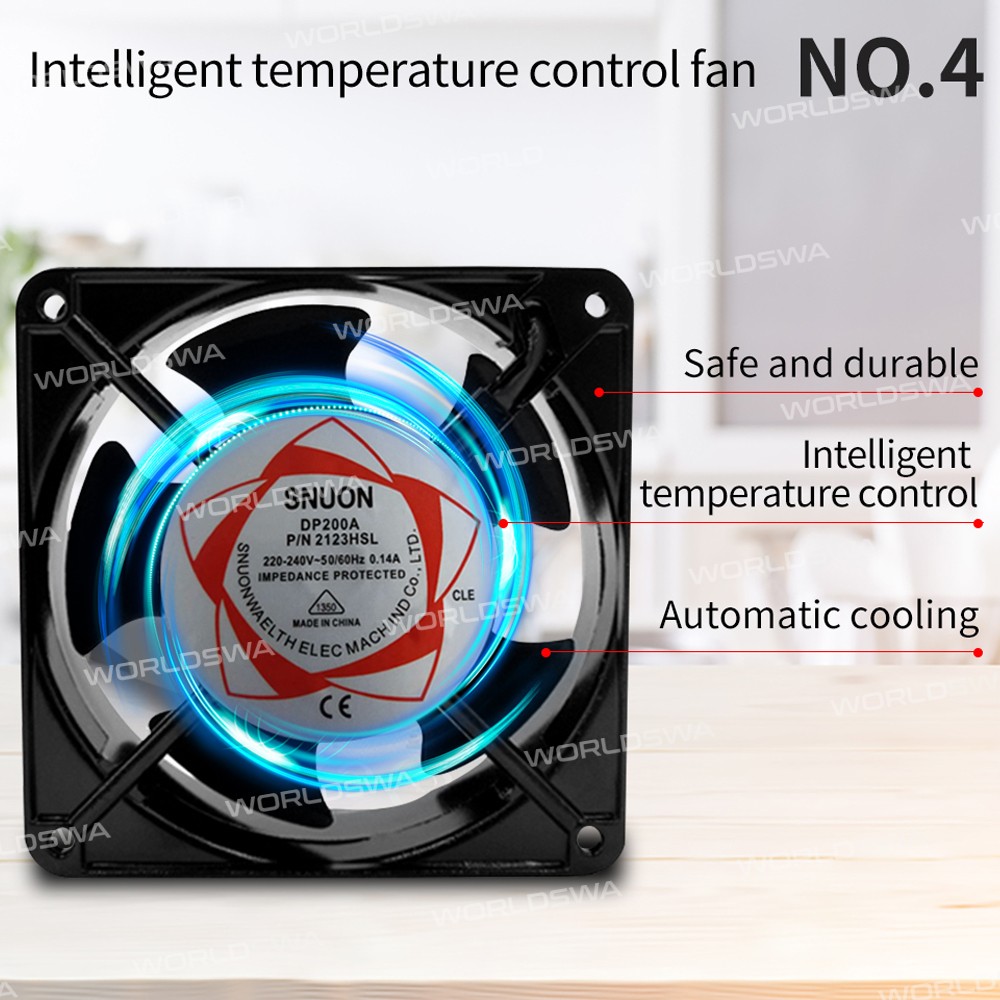

- Temperature-controlled fan cooling, low noise, long life
- Dual voltage input and convenient choice
- Output Voltage ranges from 0 to rating voltage with continuous adjustment
- Output current ranges from 0 to rating current with continuous adjustment
- AC 110v and 220v can work, rest assured to choose

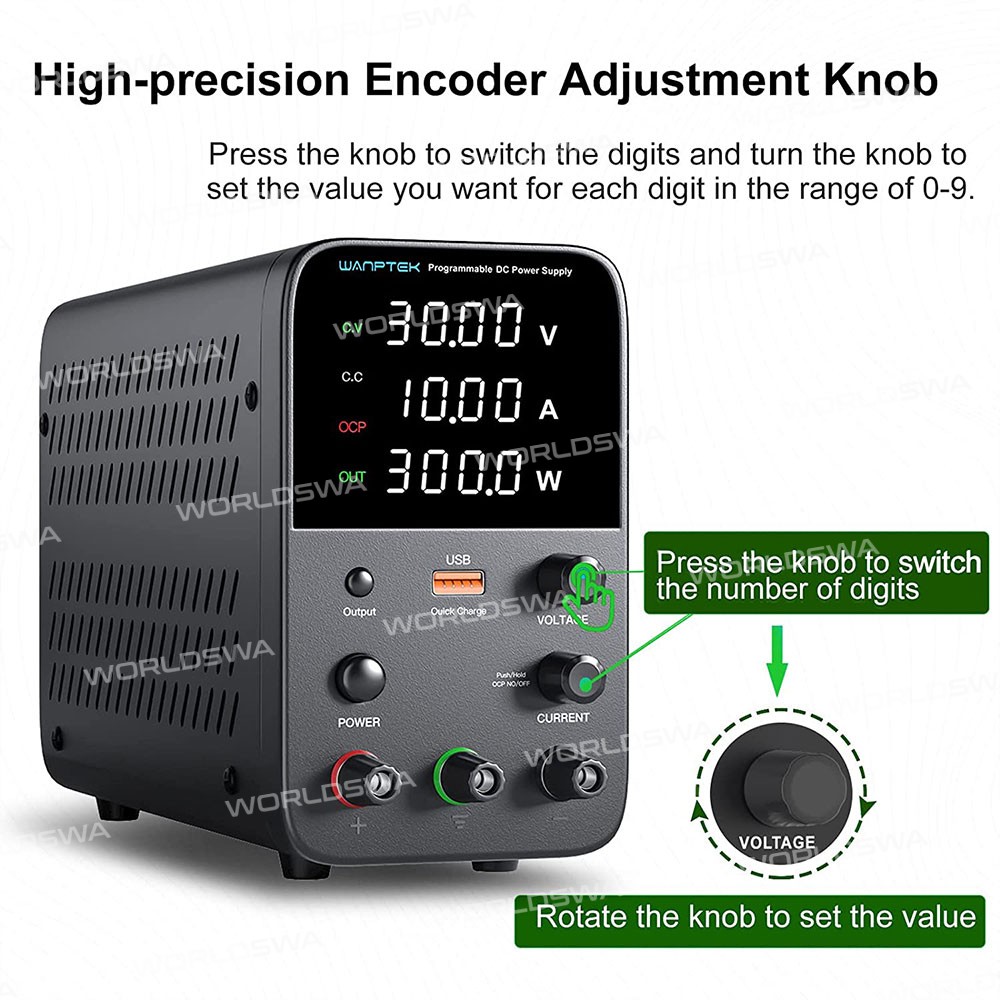

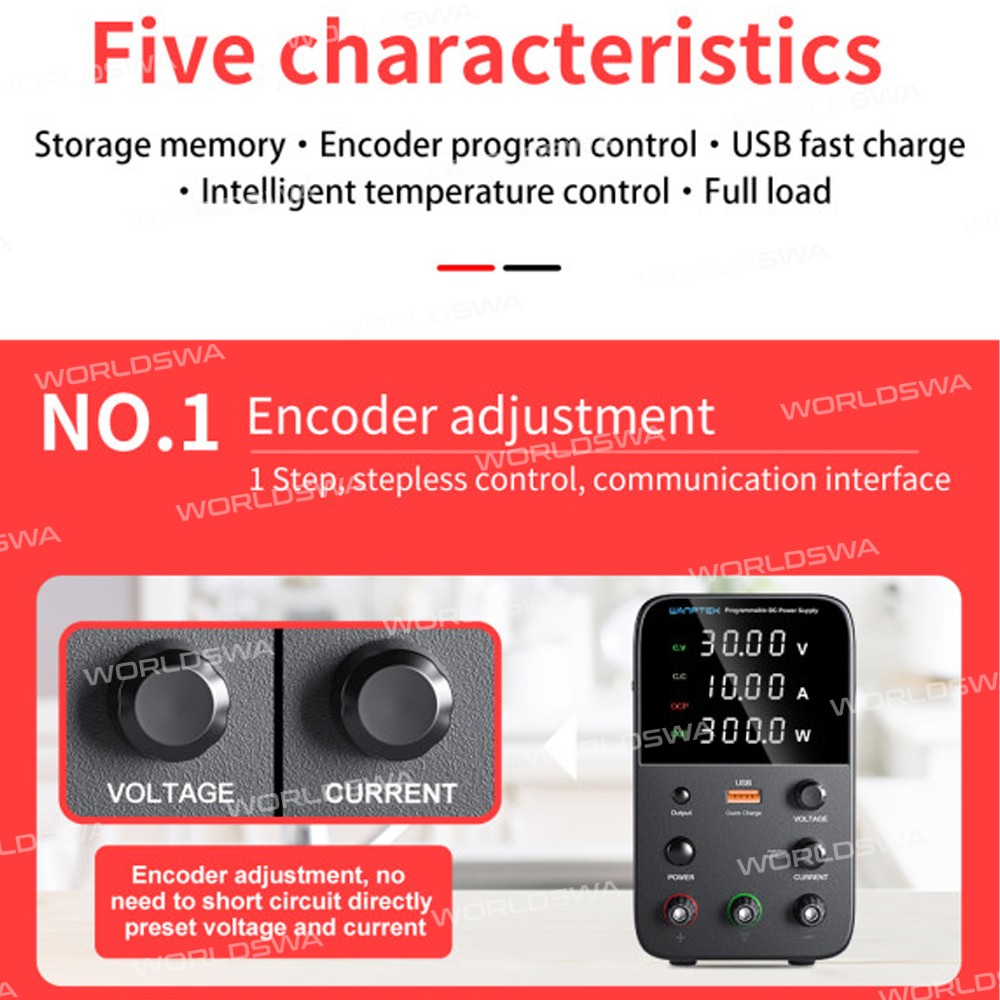

- Encoder adjustment, no shorting, direct presetting of voltage and current
- Quality Assurance: FCC & CE certified product
Specification:
- Product Model: WPS3010H
- Output voltage: 0~30V
- Output current: 0~10A
- Output power: 150W (Max)
- Voltage regulator state CV: 0 to rated voltage continuously adjustable
- Regulated current state CC: 0 to rated current continuously adjustable
- Operating temperature: 0~40°C; Relative humidity: <80%RH

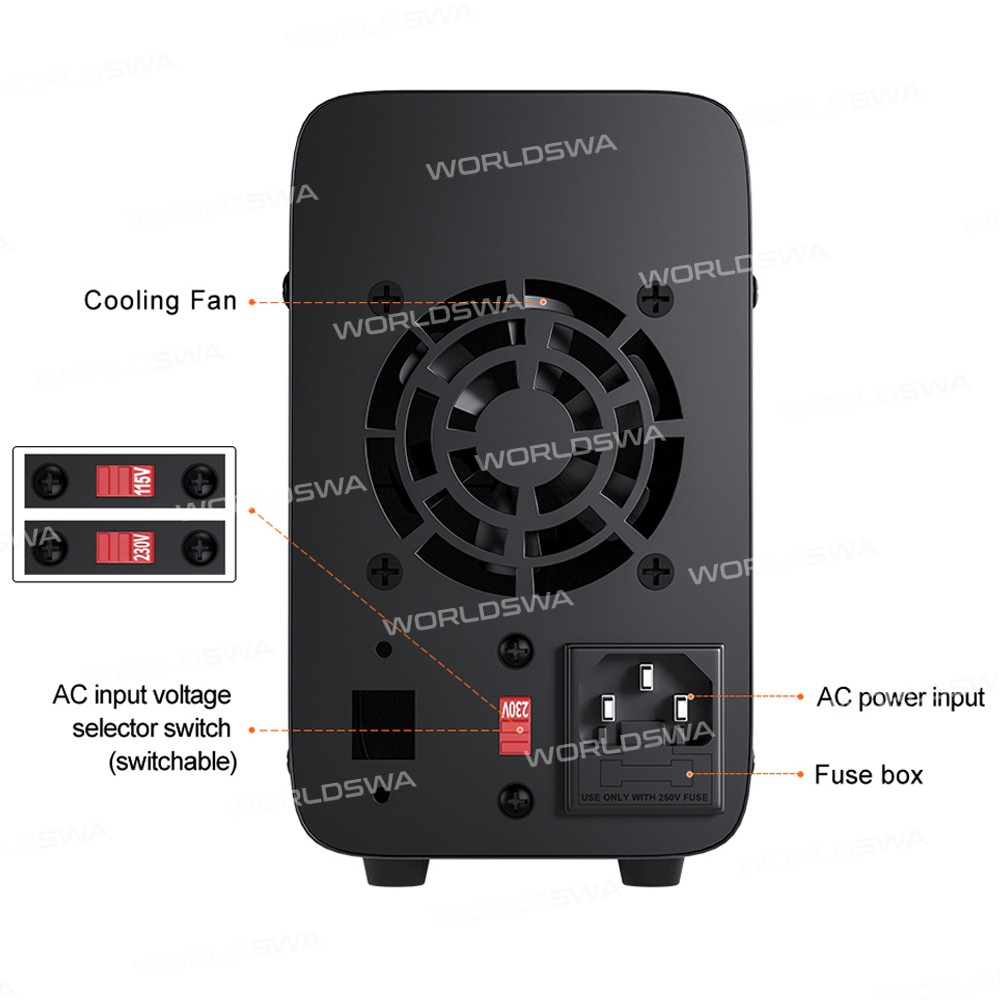

- Input voltage: AC110V±10%, AC230V±10%, input AC voltage switchable
- Ripple voltage: VPP≤1%
- Overall efficiency: ≥89%

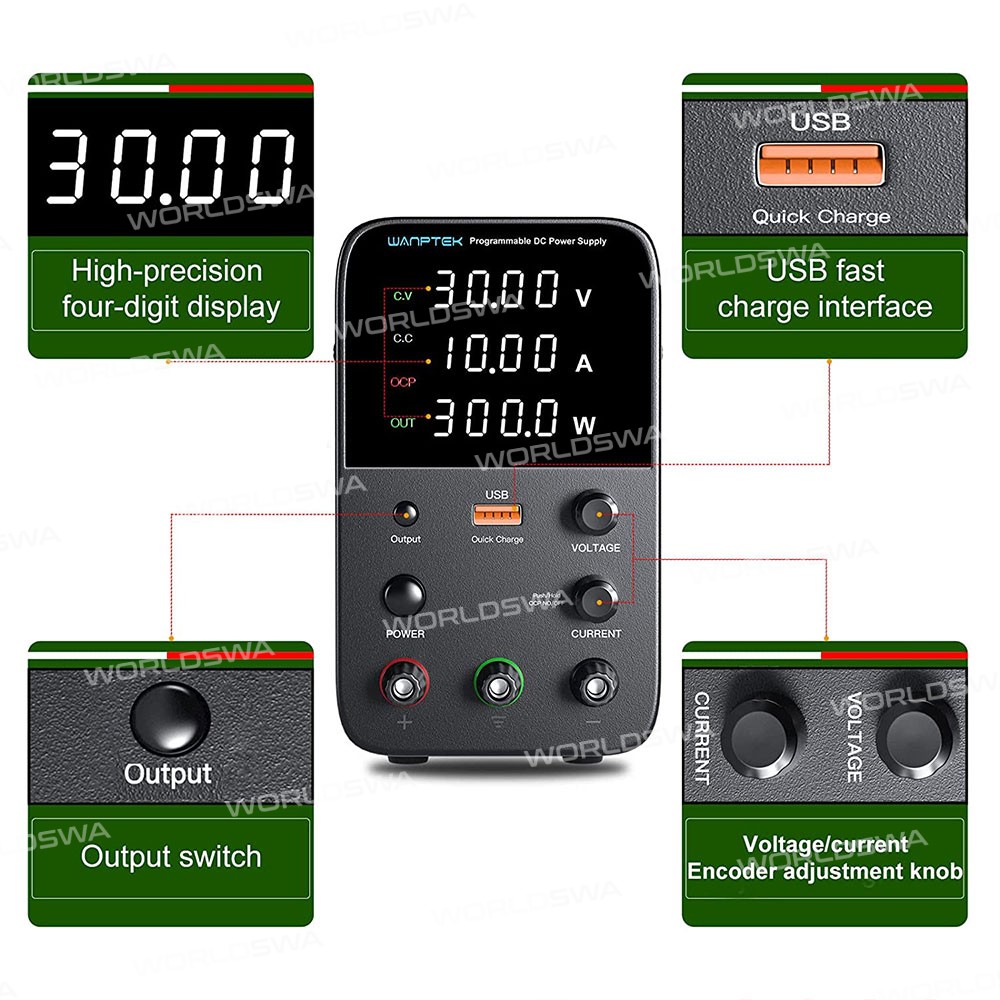

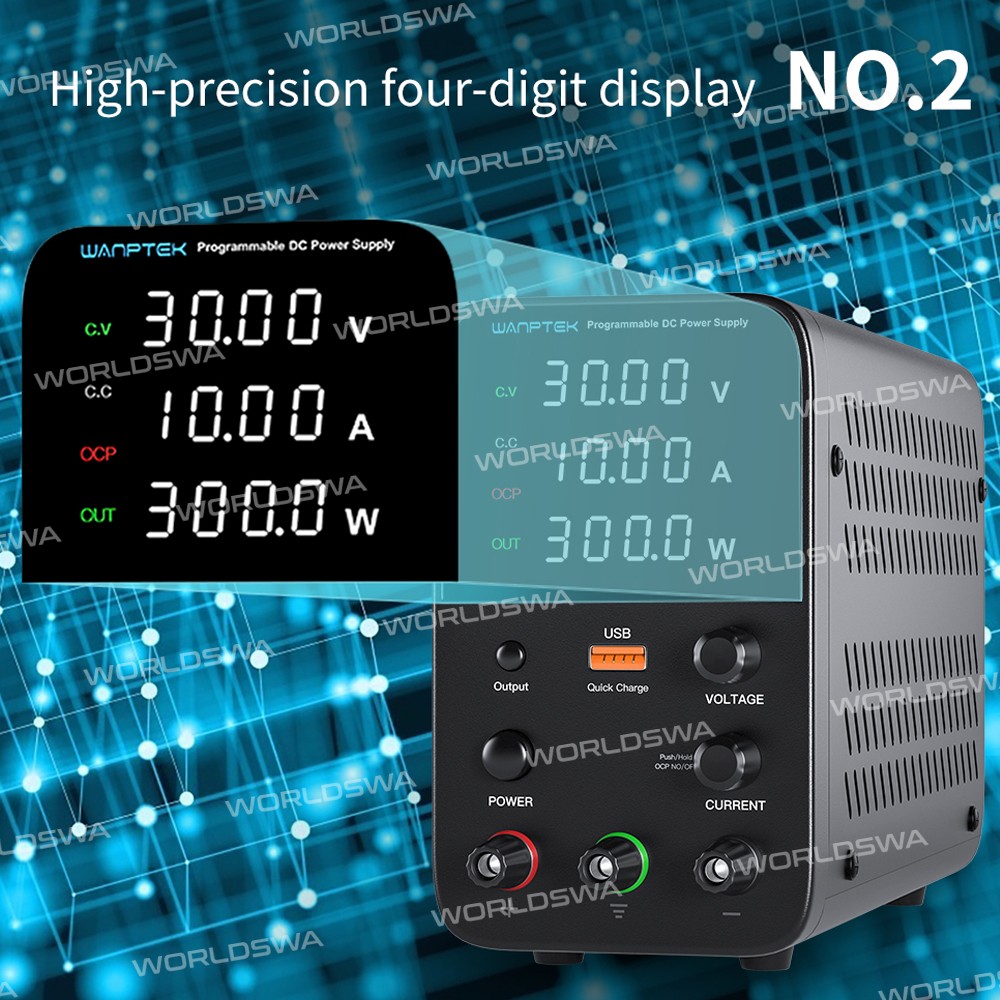

- High-Accuracy Display: Digital display accuracy: Four digital tubes, voltage, and current power three groups of display
- Display resolution: voltage: 0.01V; current: 0.001A (Greater than 100V: 0.1V; Greater than 10A: 0.01A)
- Display accuracy: ±0.5%+.digits

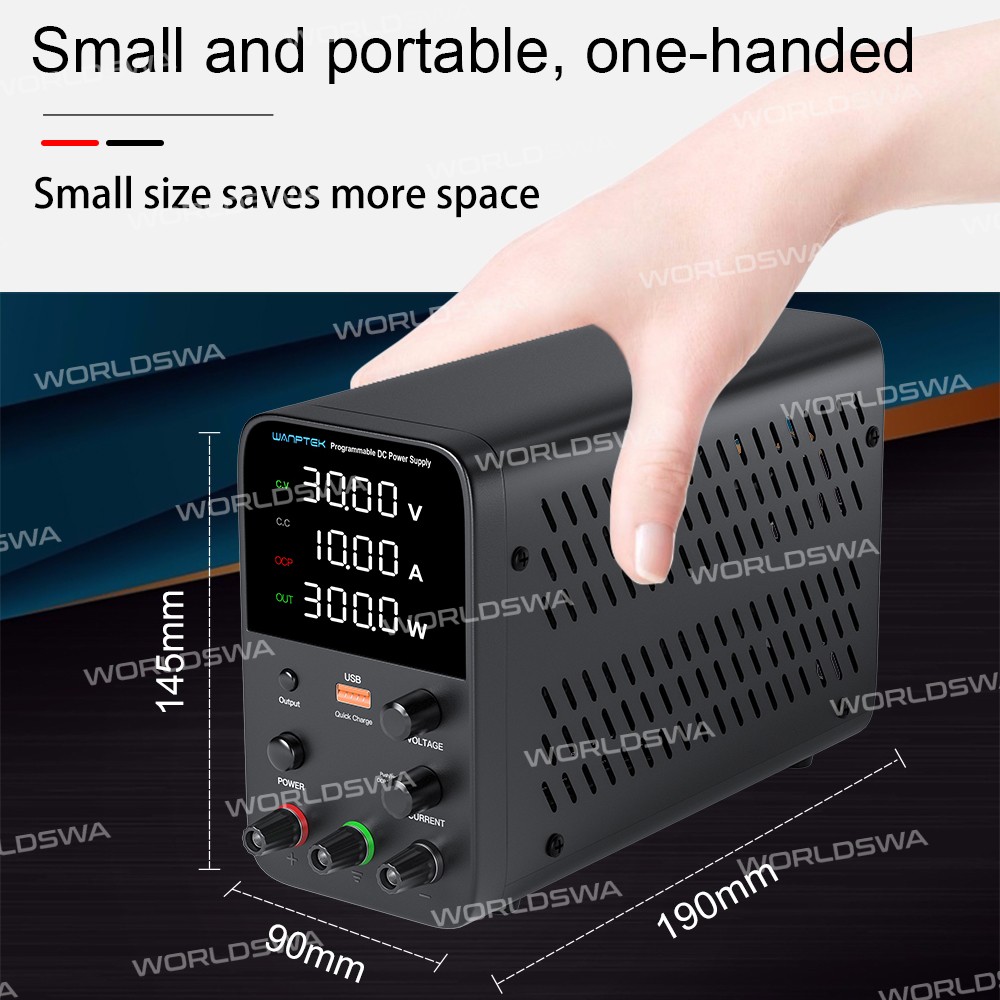

- Product size: 220*90*145mm
- Product net weight: 1.6KG

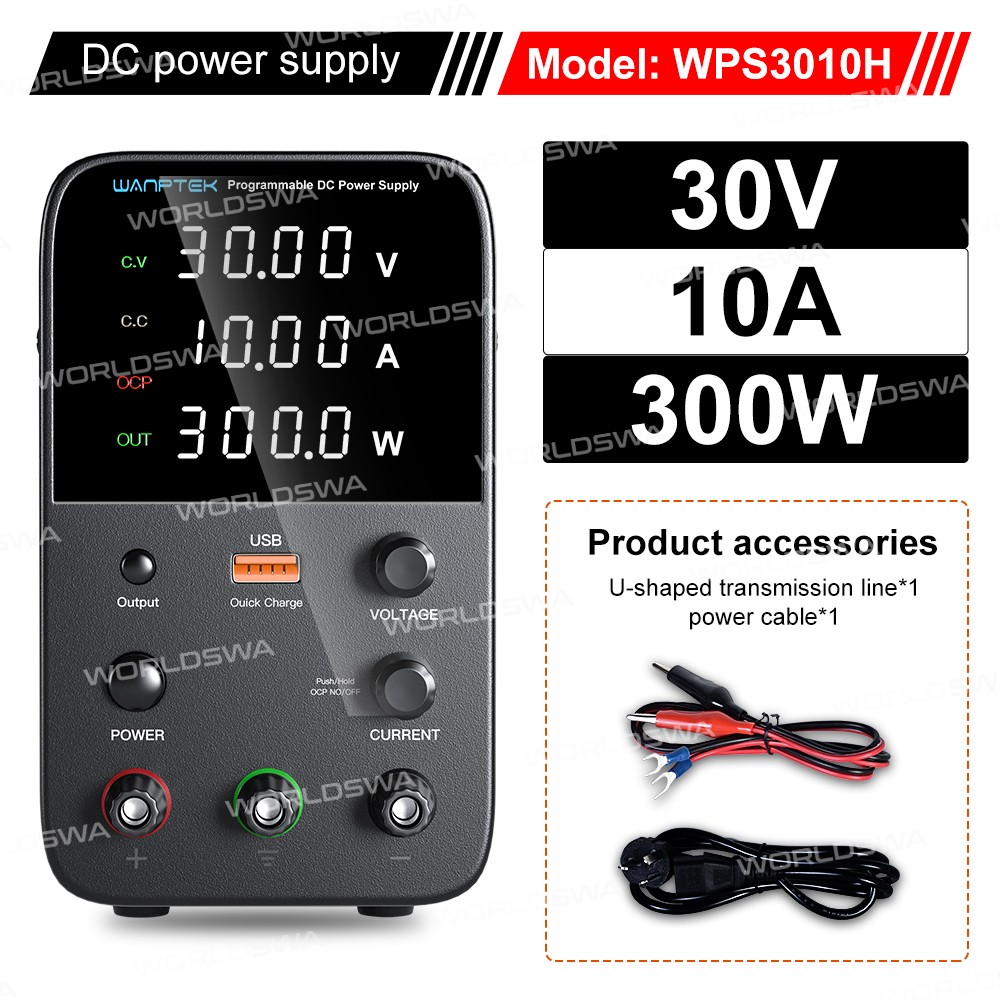

Package includes:
- 1 x Power Supply
- 1 x Power Cable
- 1 x Test Cable
