Xinzhizao 14 Series Motherboard Test Fixture (4-in-1) for iPhone 14, 14Plus, 14 Pro, 14Pro Max

Xinzhizao 14 Series 4-in-1 Motherboard Layered Test Fixture for iPhone 14 / 14Plus / 14 Pro / 14Pro Max

Product Overview

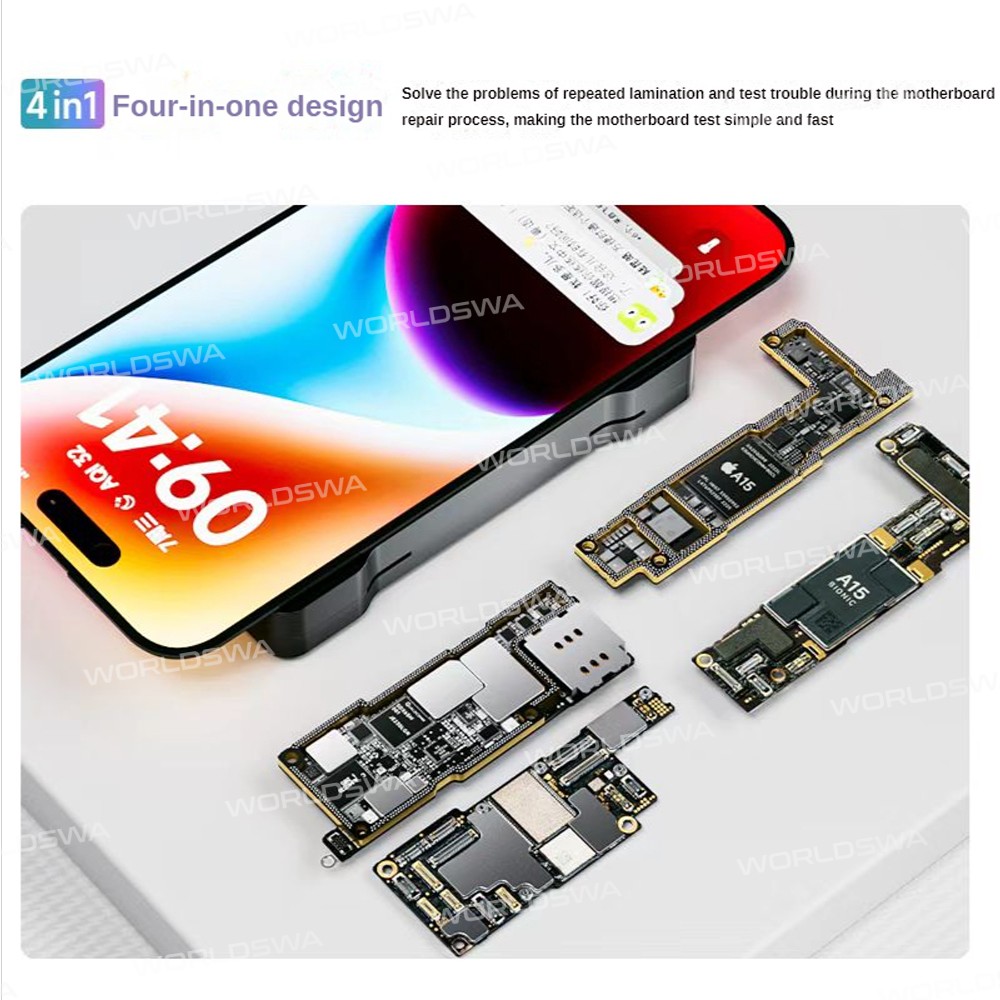

This 4-in-1 motherboard layered test fixture is designed for iPhone 14, 14Plus, 14 Pro, and 14Pro Max. It solves the problem of maintenance personnel's testing of layered motherboards, saving a lot of complicated processes and making motherboard testing simple and fast.

Features:

• Simplify Motherboard Testing: Reasonable use of limited space design, non-market patchwork, more stable design with heart.
• Easy to Operate: Simple and fast operation, easy to use.
• Compact Design: This is designed in a light and compact shape, which can be directly placed under the microscope for observation to improve work efficiency.
• Accurate Alignment: The double-headed probe accurately aligns the small holes to improve the contact performance, the fixed buckle is buckled, the motherboard does not warp, and the test data is more accurate.
• Precise Processing: High-precision CNC machine tool processing, control of every detail.
• High-Quality Materials: Using a high-quality beryllium copper spring probe, with good conductivity, product overload stability, small deviation of detection value, and more accuracy, the tapered probe is not easy to get rosin, solder.
• Durable Construction: The selection of materials for each component has undergone strict experimental tests, with high hardness, not easy to deform, and maximizes service life.
• Convenient Setup: There is a middle frame, no need to place spacers, and the RF main board, pin board, and logic main board are laminated and stacked on the test frame base in turn. For use without a middle frame, first, place the gasket on the base of the test frame, and then place the RF motherboard, pin board, and logic motherboard on the base of the test frame.

Package Includes:

• 1 x Test Fixture
• 2 x Pinboard
