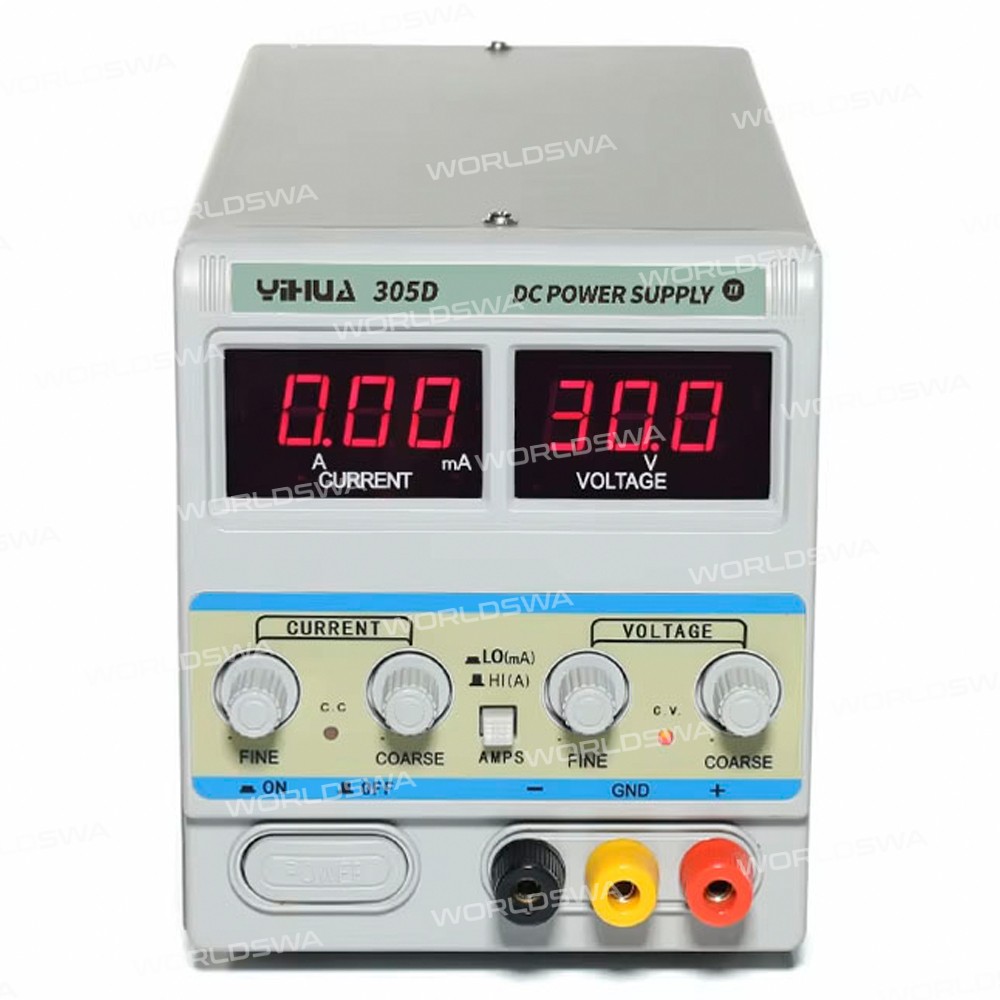

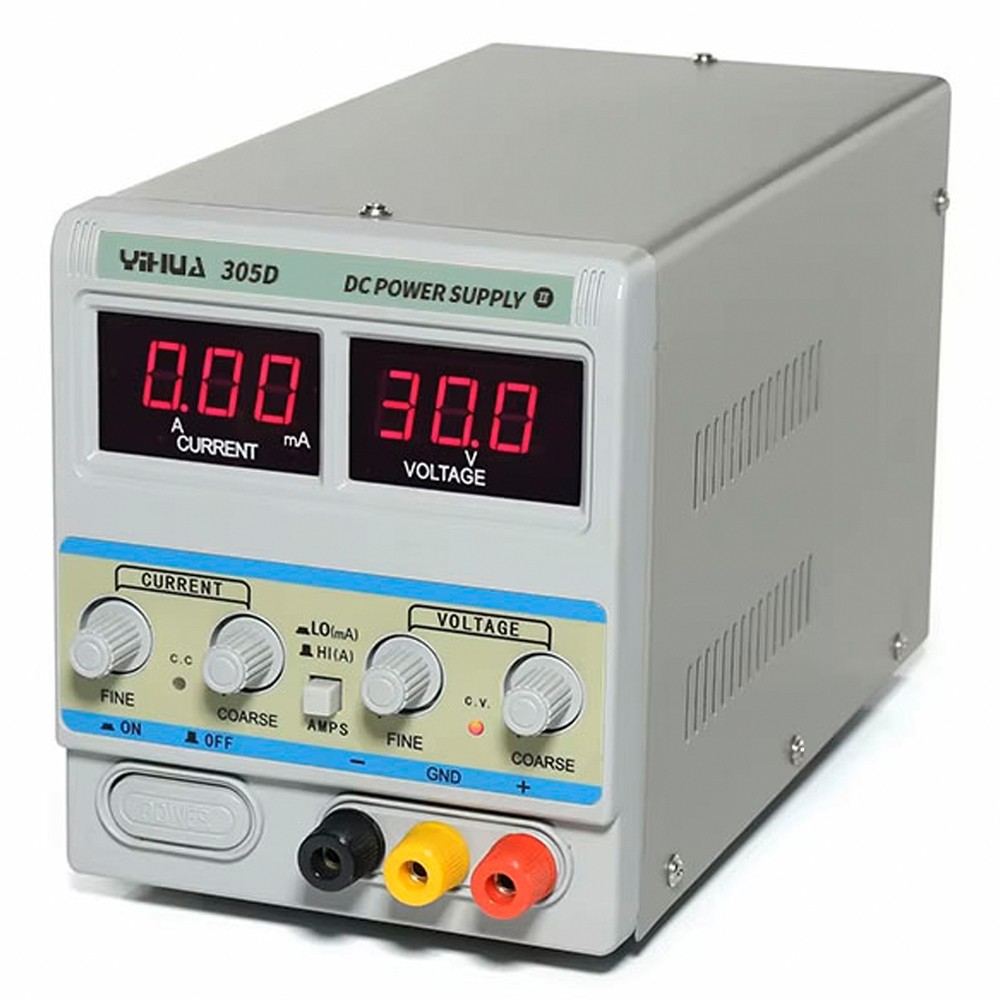

Yihua 305D-II 30V 5A High Precision Adjustable DC Power Supply with 3-Digital Display

Yihua 305D-II 30V / 5A 3-Digital Display High Precision Adjustable DC Power Supply

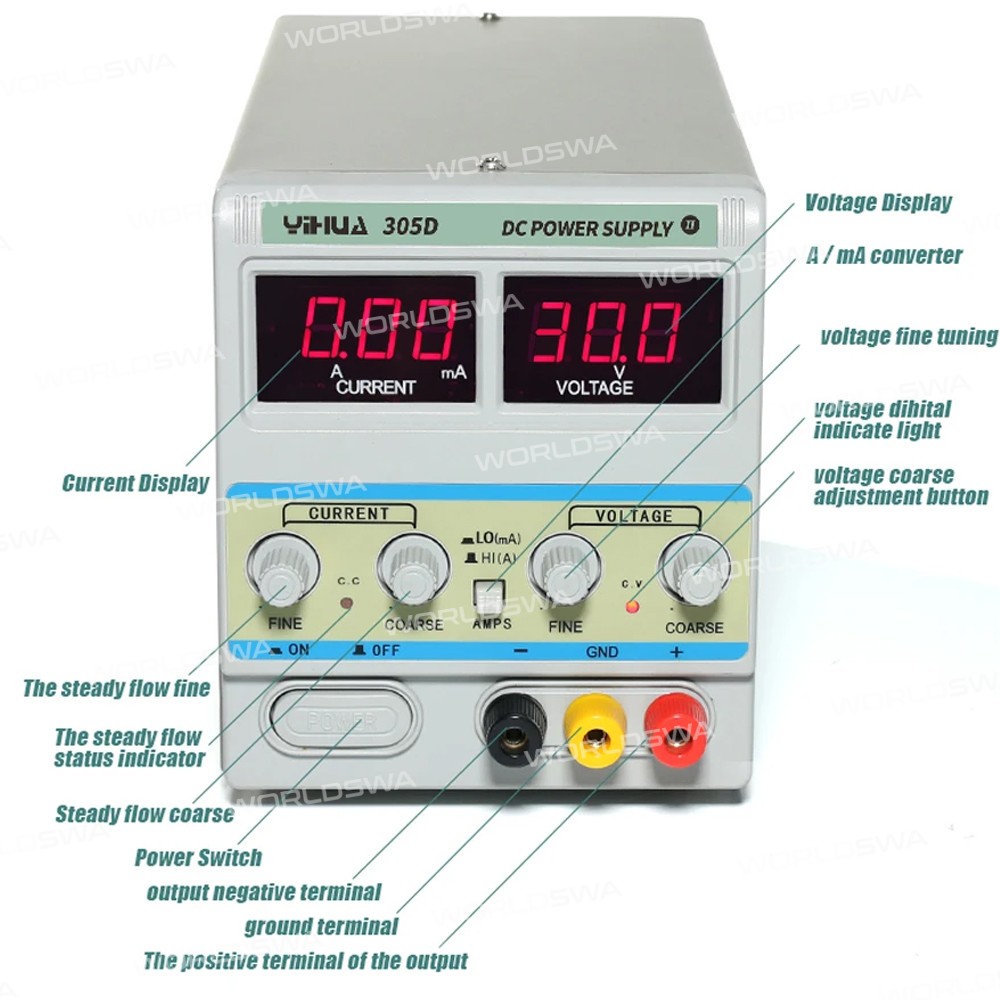

Features:

• Output constant current adjustable
• Output constant voltage adjustable

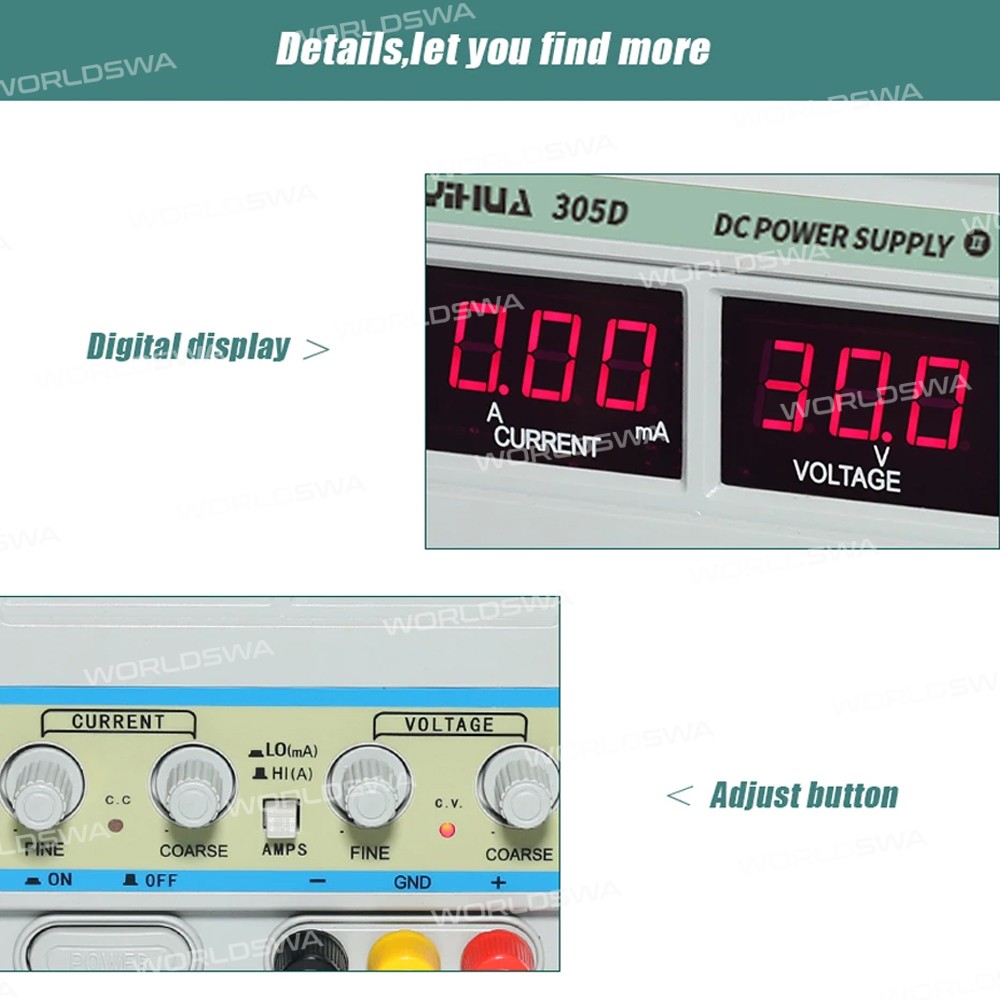

• LED voltage and current display
• Constant voltage and current operation in individual
• Over current protection

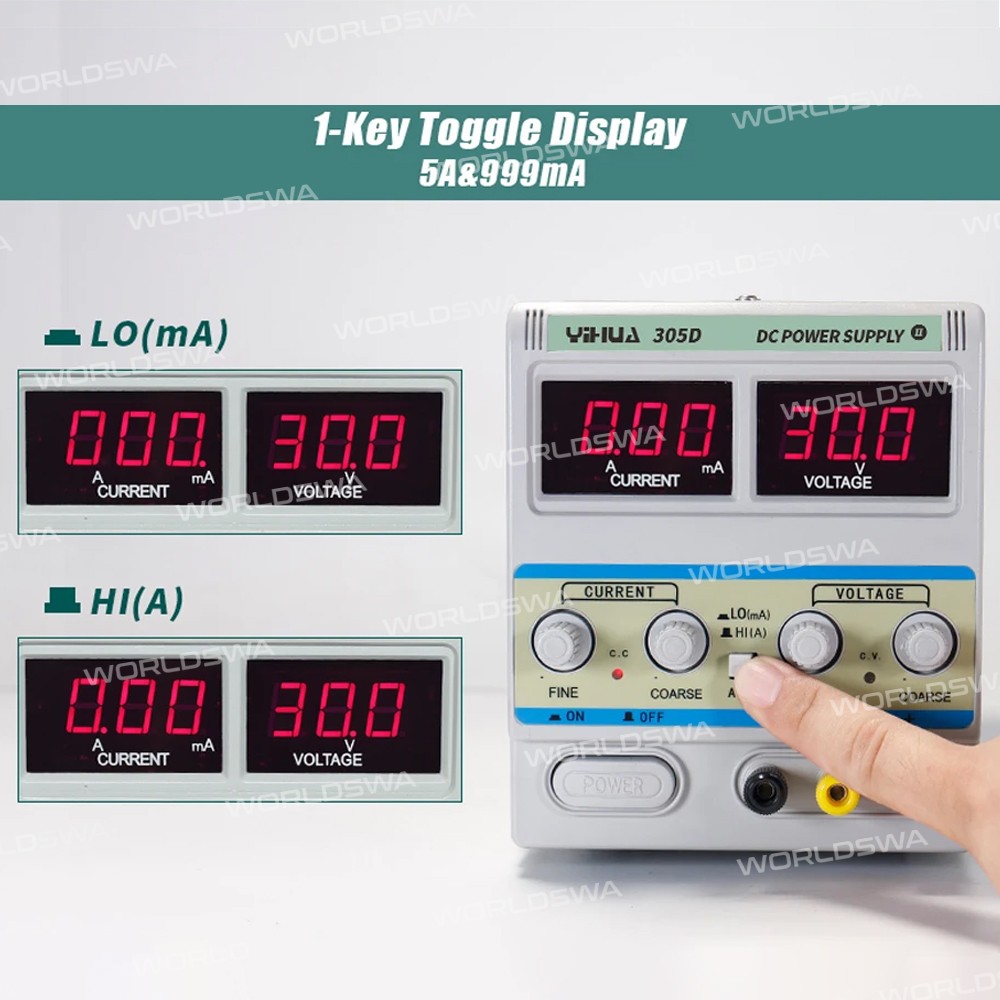

• A/mA microamps conversion, display very precise to mA
• Current and voltage regulation are smooth and not gear regulation
• Large power transformer, performance is very stable
• Summary:** High precision adjustable DC power supply with advanced features for accurate voltage and current control.

Specification:

• Model: 305D-II
• Total power: ≤220W
• Output power: ≤150W

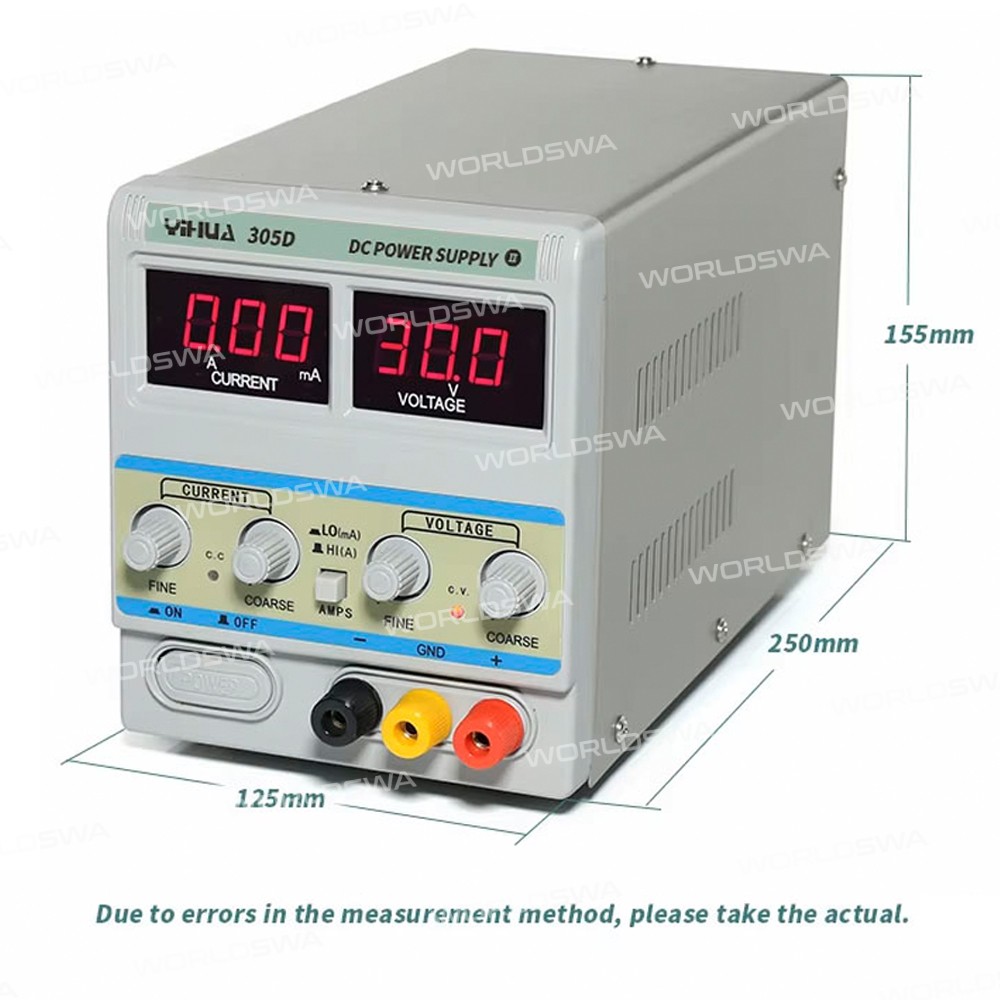

• Dimension: 250*125*155±5mm
• Weight: 4.2KG
• Adjustable voltage range: 0~30V
• Adjustable current range: 0~5A/0~999mA
• Source effect: ≤1mV
• Load effect: ≤0.33%
• Corrugation coefficient: ≤3mV RMS(5HZ-1MHZ)
• Working temperature range: -10℃~40℃
• Working humidity range: -20℃~80℃
• Storage humidity range: ≤80%

Package includes:

• 1 x Power Supply
• 1 x Power Cable
• 1 x Test Cable
