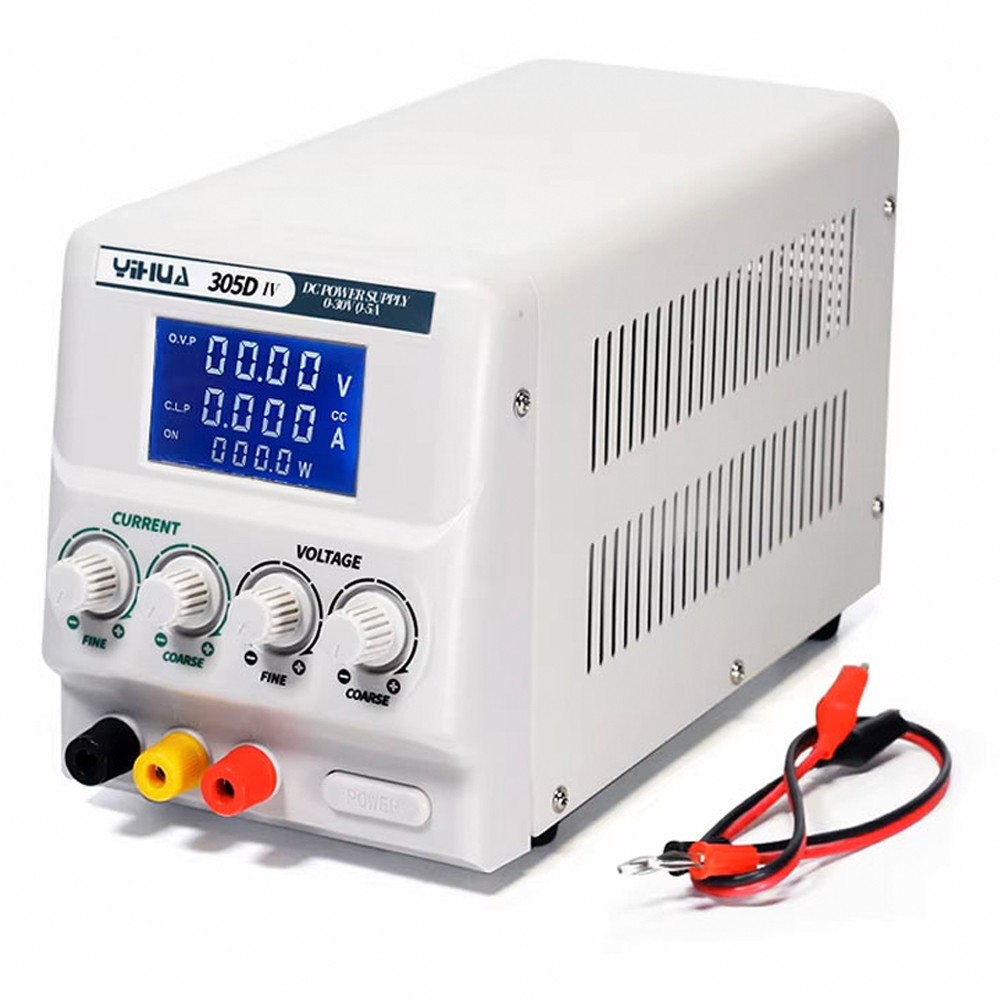

Yihua 305D-IV 30V 5A 4-Digital Display High Precision Adjustable DC Power Supply

Yihua 305D-IV 30V / 5A 4-Digital Display High Precision Adjustable DC Power Supply

Overview

This high-precision adjustable DC power supply features a 4-digit display and offers a stable output voltage and current. It is suitable for various applications, including laboratory, education, and industrial uses.

Specifications

• Input
  • Input voltage: AC 110V/AC220V
  • Frequency: 50Hz/60Hz
• General
  • Power: 194W
  • Working environment: -10°C~40°℃
  • Working environment humidity: ≤90%
  • Storage condition: ~10°C~40°℃
  • Storage environment humidity: <80%

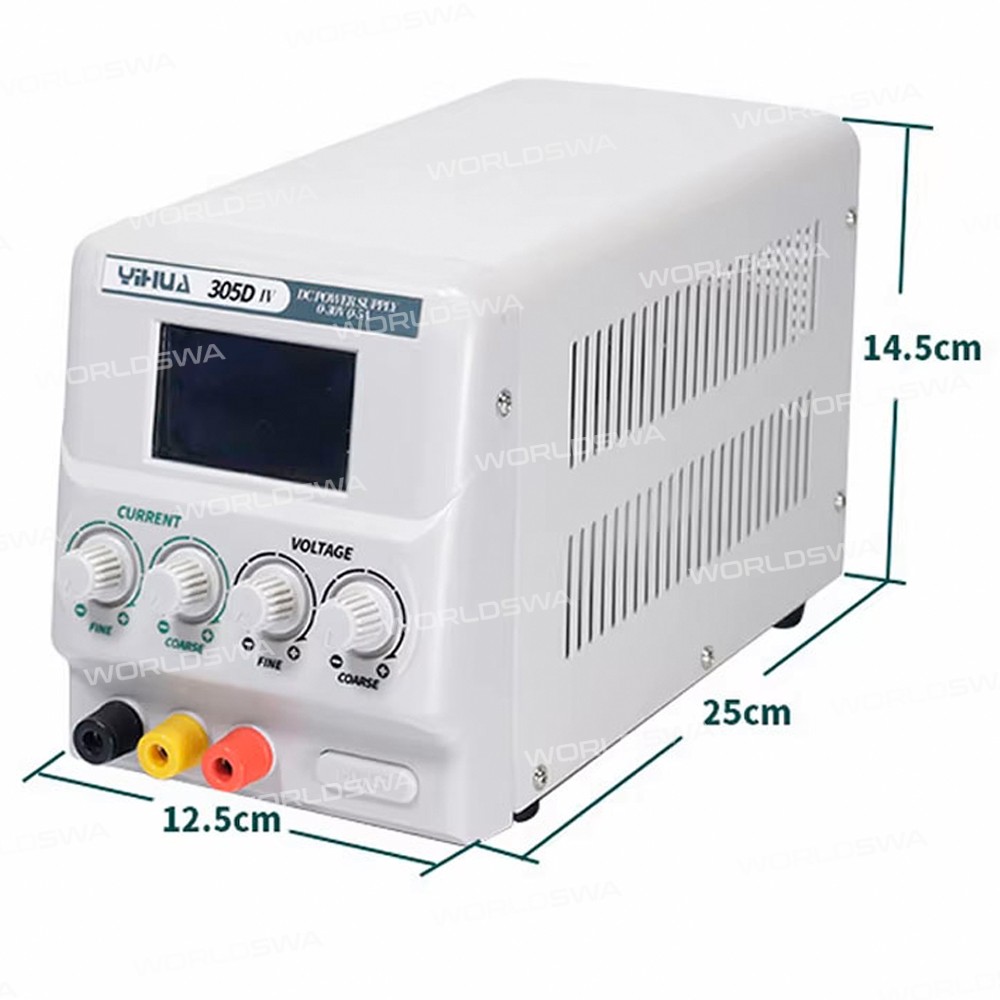

  • Machine dimension: 282*125*156mm
  • Unit weight: 2.3kg

Regulation Voltage

• Voltage Regulation
  • Output voltage: 0~30V
  • Voltage stability: ≤0.01%±2mv
  • Load stability: ≤0.2%±2mv
  • Voltage display precision: Digital display of 1%±1 characters
  • Ripple noise: <0.3%Vrms
  • Temperature coefficient: ≤200PPM/PC
  **Summary:** High-precision voltage regulation with stability and low ripple noise.

Regulation State

• Current Regulation
  • Output current: 0~5A
  • Load stability: ≤0.01%±3mA
  • Current stability: ≤0.2%±2mA
  • Ripple noise: <1%Vrms
  • Current display precise: Digital display of 1%+1 characters
  **Summary:** High-precision current regulation with stability and low ripple noise.

What's in the Box

• 1 x Power Supply
• 1 x Power Cable
• 1 x Test Cable
