YM119 OBD II Scanner: Engine Fault Code Reader for 12V Gasoline Vehicles

Car OBD II Scanner Engine Fault Code Reader for 12V Gasoline Vehicles

Overview

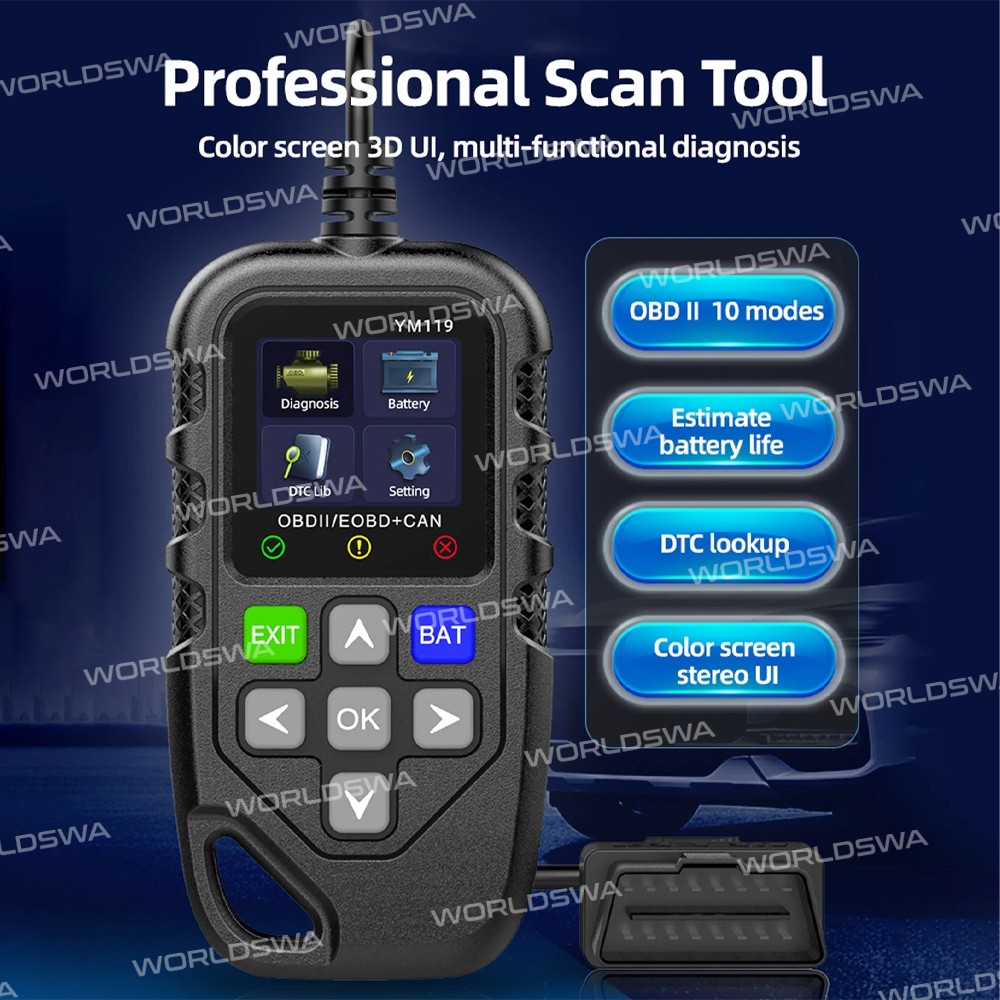

This OBD scanner is a powerful diagnostic tool that supports nine standard OBDII/EOBD protocols, allowing it to read and clear engine fault codes, provide real-time data streams, and perform advanced testing capabilities.

Features:

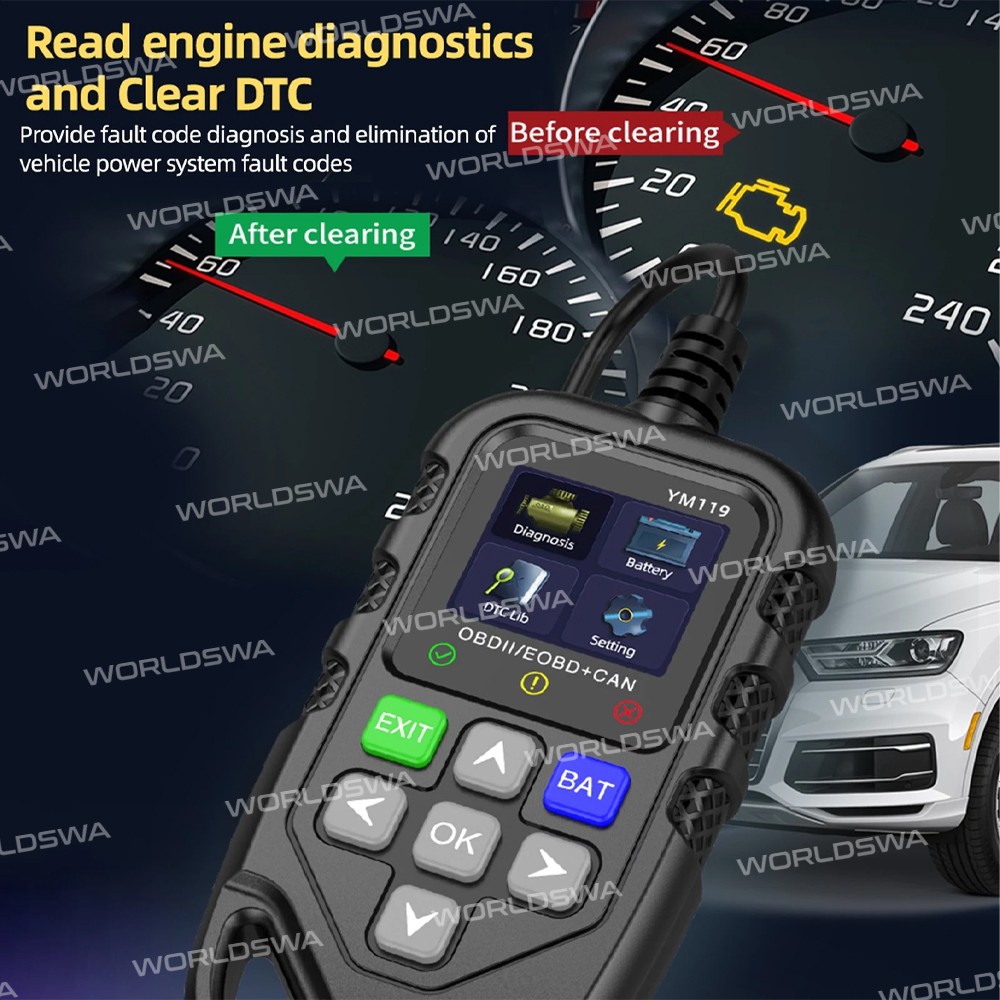

• Comprehensive Diagnostics: Reads and clears engine fault codes, provides vehicle fault freeze frame, I/M readiness status, and vehicle information.
• Real-Time Data: Offers real-time data stream and real-time data curve, giving you instant access to vital information about your vehicle's performance.
• Advanced Testing: Includes features such as Mode 6 detection (component system testing), oxygen sensor testing, and component testing.
• Battery Health Monitoring: Reads and monitors battery voltage, evaluating its life expectancy, and allowing you to replace it before it fails.
• Wide Compatibility: Supports most European models from 2003 onwards and most American models from 1996 onwards, with compatibility for 12V gasoline vehicles.

Specifications:

• Item Name: Car OBDII Scanner
• Main Material: Plastic, Silicone
• Display: 1.8-inch, 160 x 128 pixel TFT display
• Working Voltage: 5-18V
• Working Current: 50ma
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Power: 5.0V to 20.0V provided via vehicle battery
• Product Color: Black
• Product Size: 129*68*18mm

Scanning Functions:

• **Summary:** Supports reading of engine fault codes, clears engine fault codes, provides freeze frame of vehicle faults, and more.
• Supports reading of engine fault codes from 9 standard OBDII/EOBD protocols
• Cleans engine fault codes

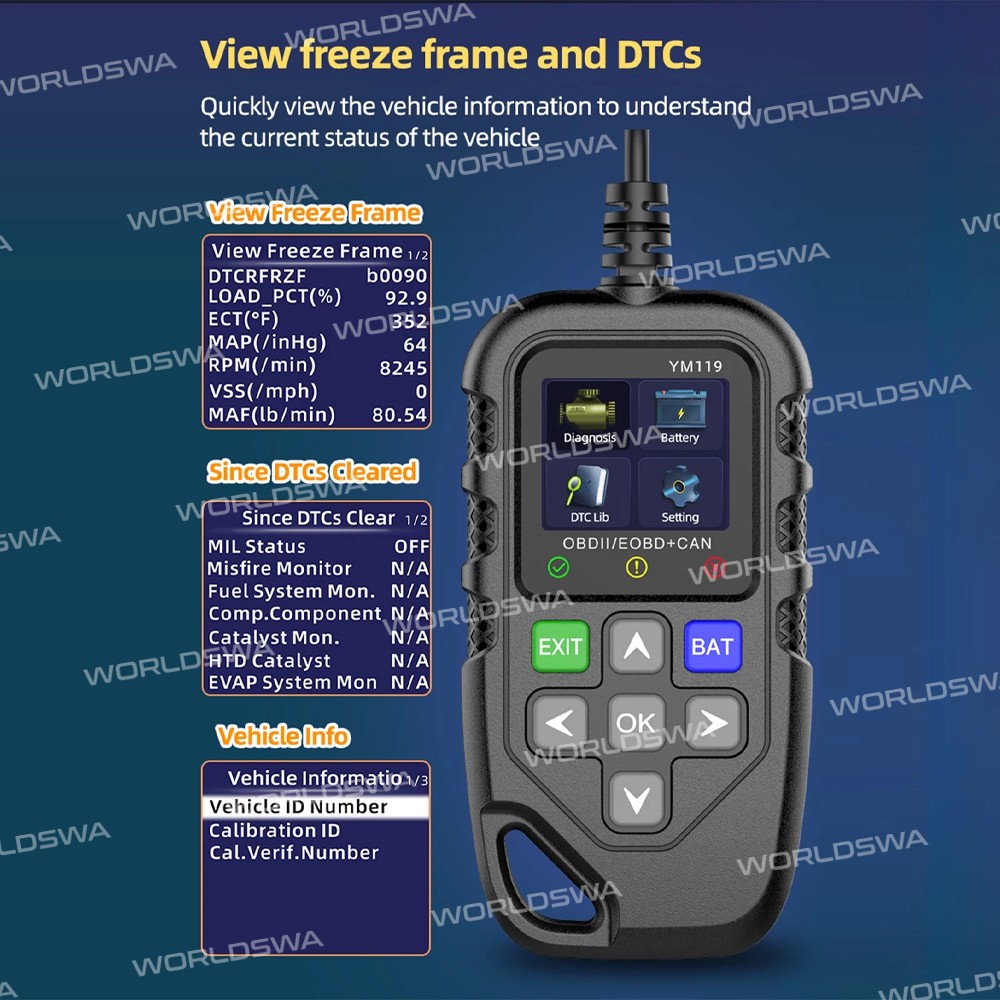

• Provides freeze frame of vehicle faults
• I/M readiness status
• Vehicle information
• Real-time vehicle data stream
• Real-time vehicle data graph

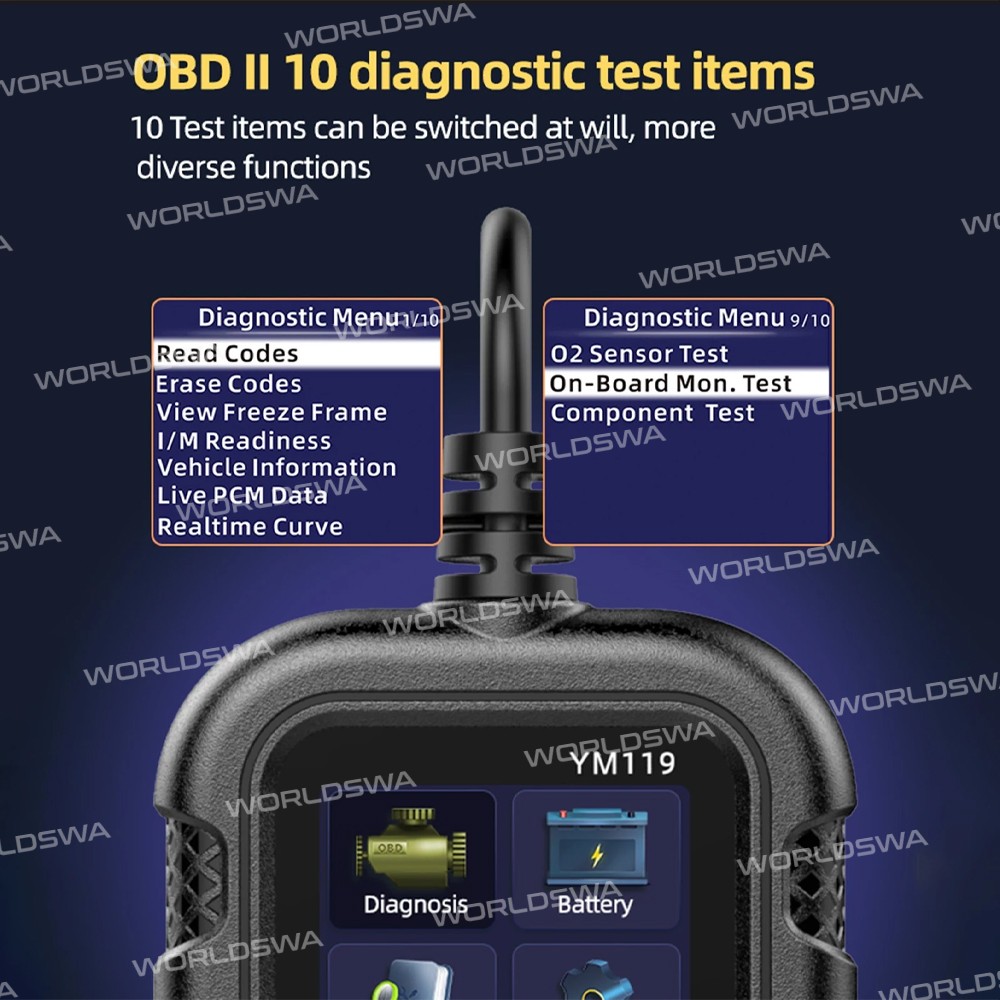

• Mode 6 detection (component system test)
• Oxygen sensor test
• Component test
• Fault code lookup
• Vehicle battery voltage reading
• Vehicle battery voltage monitoring
• Vehicle battery life assessment (exclusive feature)
• Built-in 13 languages (Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)

Support Protocol:

• SAE J1850 PWM (41.6Kbaud)
• SAE J1850 VPW (10.4Kbaud)
• ISO9141-2(5 baud init, 10.4Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11bit ID, 500 Kbaud)
• ISO15765-4 CAN (29bit ID, 500 Kbaud)
• ISO15765-4 CAN (11bit ID, 250 Kbaud)
• ISO15765-4 CAN (29bit ID, 251 Kbaud)

Package includes:

• 1 x OBD II Scanner
