Z3x Easy Jtag Plus Box Lite - No eMMC Socket

Z3x Easy Jtag Plus Box - Lite (without eMMC Socket)

This upgraded PLUS version boasts major hardware improvements and features, including:

• One click device repair
• Boot repair
• Data recovery
• eMMC firmware repair
• Partition management
• eMMC service operations
• SPI memory programming

**Key Features Summary:**

Fast data transfer, future-proof hardware, and advanced software features.

Box Features

• One click device repair
• Boot repair
• Data recovery
• eMMC firmware repair
• Partition management
• eMMC service operations
• SPI memory programming

Socket Features

• High-quality materials and elegantly designed hardware for powerful eMMC Socket
• Made from high-quality materials
• Over 10K cycles of lifetime performance in your service center
• Wide range of eMMC IC supported by: BGA153/169, BGA162/186, BGA221, BGA529
• High-speed up to 30 MB per second over 8-bit bus
• EMI resistant design, low noise components
• Integrated power logic. Additional power source is no more needed
• Surge protection - smart fuse driven (0.5A threshold)

Software Features

• DUMP AND PINOUTS DATABASE

Free access to large dump and pinouts database and constantly updated software tools

• EASY JTAG TOOL

The main application allowing you to use most of the product features. It's the most powerful tool of all

• EASY JTAG PLUS TOOL

Lightweight software, made especially for mobile phones repair, eMMC memory chips replacement and user data recovery

• EASY JTAG SPI FLASHER

Identifying, reading, writing, verifying and erasing flash chips. It is designed to flash BIOS images on mainboards, routers, e.t.c.

• EASY JTAG SINGLE PACKAGE REPAIR

Create user customized repair packages. This is partition layout, pinout, eMMC preconfig and instructions

• EASY JTAG API

Access to most useful box functionality to create your own decisions

Main Benefits of New Z3x Easy Jtag Plus Box

• Updated CPU AT SAM3X8E vs LPC1768 in old box
• Updated FPGA SPARTAN6 vs SPARTAN3 in old box
• Updated Power Logic – Full Digital PWM with ADC control
• MicroUSB Connector if additional power required
• VCC and VCCQ overload protection
• Updated host interface: USB 2.0 Device/Mini Host: 480 Mbps
• Integrated ISP engine: Z3X High Power Pro Engine
• ISP Support 1 and 4 bit connection now **
• Added eMMC 8 bit high-speed interface up to 48Mhz
• Integrated NAND engine: NFC with 4 Kbyte RAM buffer and ECC
• Integrated M-PHY interface
• Integrated SPI/I2C engine: up to 65 MHz for HSMCI and SPI clock lines
• Integrated Self Test Core that exclude 90% faults in production
• Integrated CCID Card Reader for Z3X Software Use

What You Get with New Hardware:

• Box to Host PC speed increase up to 35MB/sec
• JTAG Interface speed increase 20%
• eMMC ISP Speed increase up to 4MB/sec
• eMMC 8 Bit Speed up to 26MB/sec
• Compatibility with 99.9 host PC systems and OSes
• Compatibility with old Easy JTAG G1 ISP adapters (1bit)
• Adapter-less ISP (all stuff inside the box)
• Compatibility with all market popular eMMC sockets (8 bit)
• True Plug and Play for modern Windows OS (8, 8.1, 10)
• Full Support for legacy OS like Windows XP

Z3x Easy JTAG Plus FULL PACKAGE Contents:

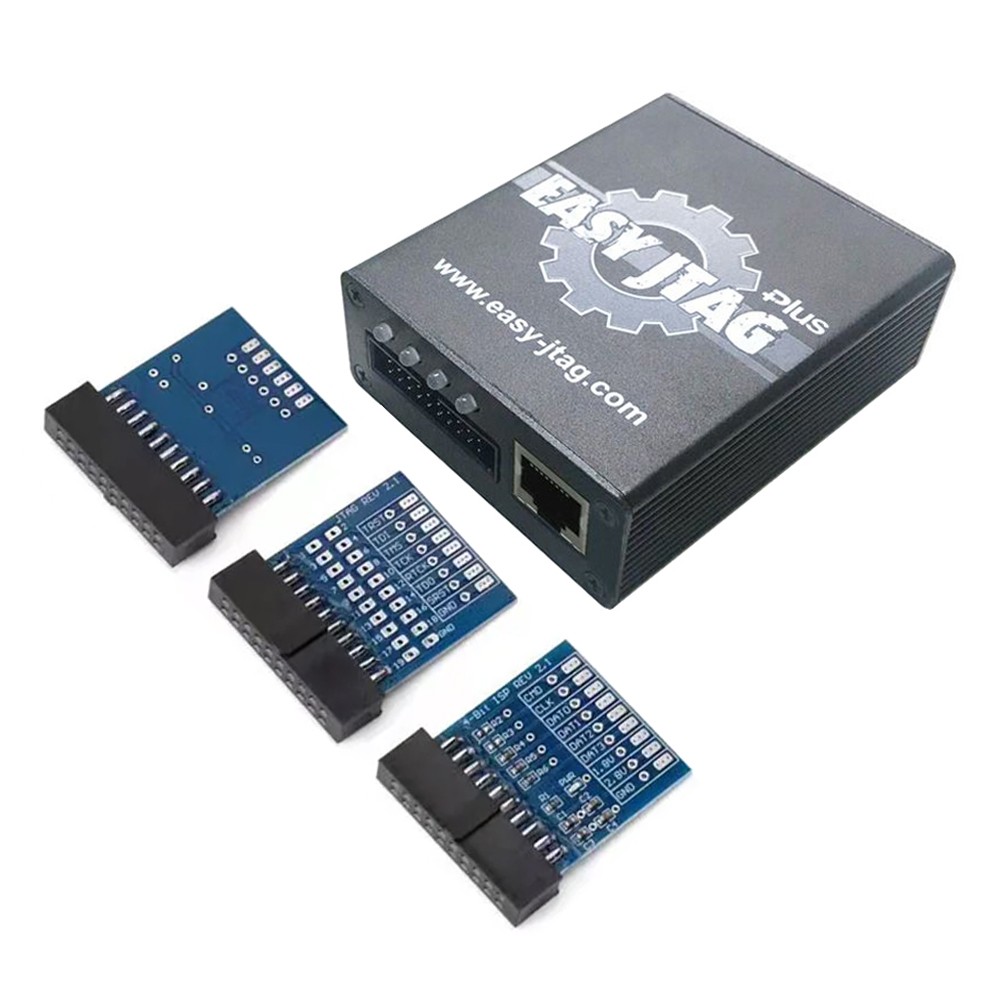

• Easy JTAG Plus Box Main Interface Hardware
• Z3X Smart Card with Easy JTAG Plus Activation
• 3 Piece Adapter Set

                 1xJTAG Pin 20 Standard Cable.
                 1xISP Soldering connector 1bit.
                 1xISP Soldering connector 4bit.

• 1 Year Free support access to our file support servers
• USB A to B Cable

Remarks

* UFS and NAND protocols due to high-speed connection rates require special sockets and will be released in the future software and firmware releases.
** 4-BIT ISP technology is currently under testing and will be added in the future firmwares.

NOTE: We don't guide you how to use it, make sure you know how to use it before buying it, however you can still find solution or help from official site or at https://www.martview-forum.com/forums/z3x-team.186/
